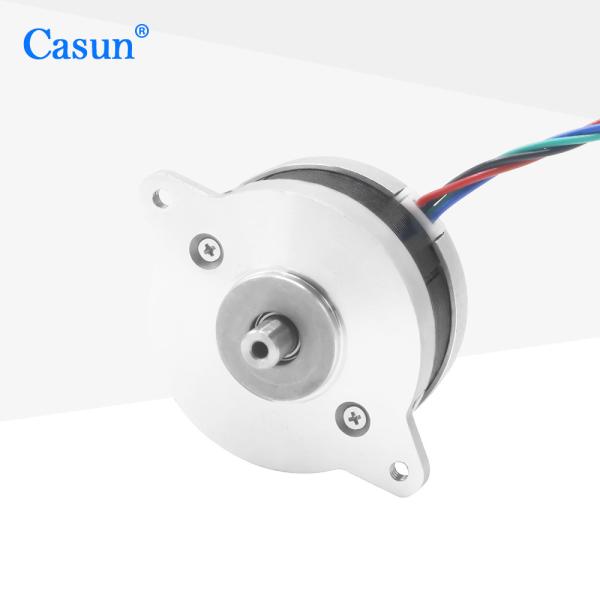

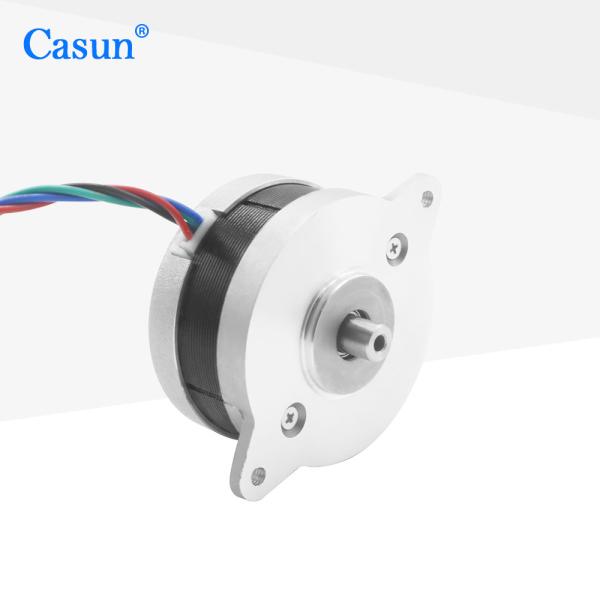

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
Specifications
Brand Name :
Casun
Model Number :
36SHD4401-6K
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$3.91~$4.87
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
100 mN.m
Voltage :
2.15V
Current :
1A
Body Length :
18.6mm
Weight :
0.07 kg
Phase Resistance :
2.15 ohm ±10% （At 20℃）
Shaft Length :
6 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

The Casun Flat Stepper Motor redefines compact motion control with an ultra-thin 18.6 mm body and lightweight 0.07 kg design, making it perfect for robotics, drones, and portable devices where space and weight are critical. Despite its slim form, it delivers a robust 100 mN.m

holding torque for precise and reliable operation.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

Motor Specifications

Step Angel

 1.8°

Frame Size

 18.6 mm

Number of Phase

 2 Phase

Rated Current

 1 Amp

Holding Torque

 100 mN.m

Resistance

 2.15 ohm

Inductance

 1.41 mH

Rotor Inertia

 13.7 g.cm²

Motor weight

 0.07 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics
