ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
ISO9001 AESSEAL CDMSC Double Cartridge Mechanical Seals For Mixer Agitator And Reactor
Specifications
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Model Number :
CDMSC
Packaging Details :
Carton
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Delivery Time :
15 working days
Setting Clips :
Zinc Alloy / Metal
Sleeve :
316L Stainless Steel
Certification :
ISO9001
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
MOQ :
1pc
Brand Name :
BESTSEAL
Rotary Drive Screws :
Stainless Steel
Supply Ability :
1000000/Month
Gland :
316 Stainless Steel
Description

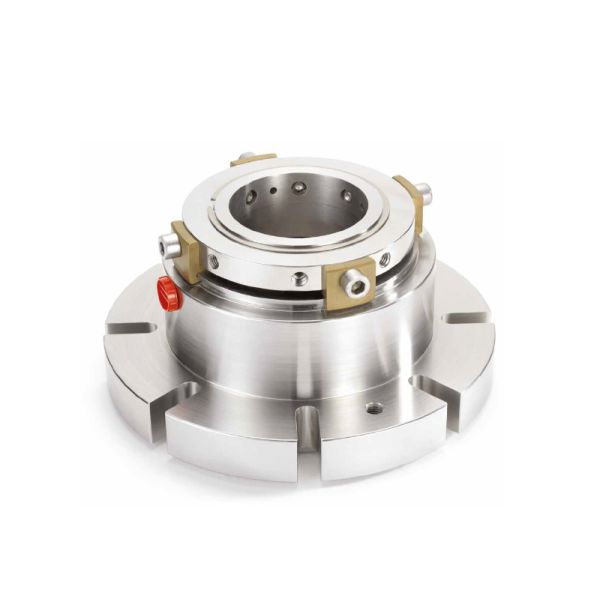

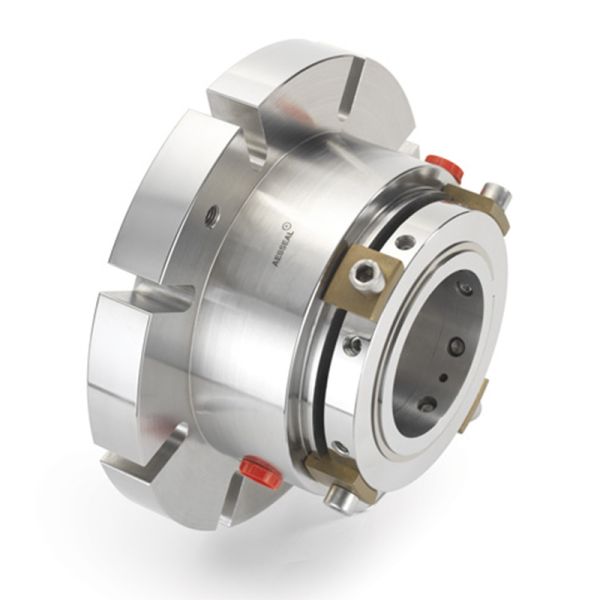

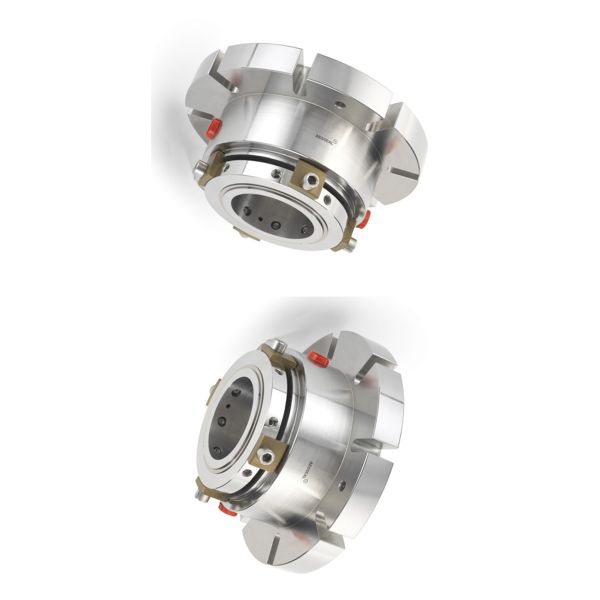

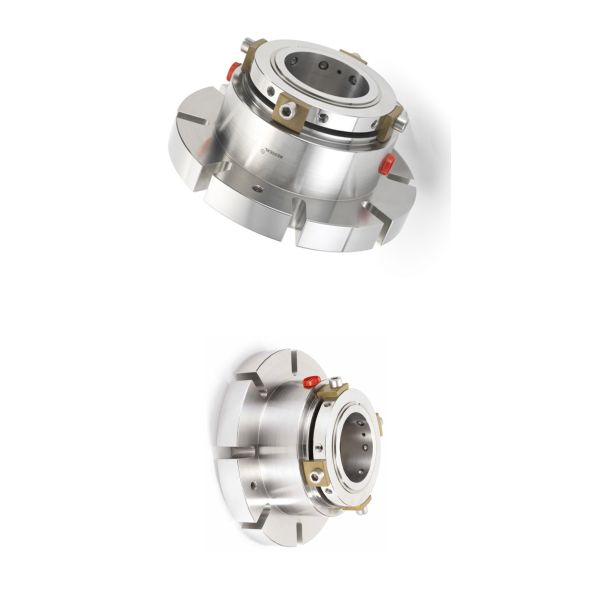

AESSEAL CDMSC Double Cartridge Mechanical Seals for Mixer Agitator and Reactor

Cartridge Mechanical Seals

Mixer Seals

CDMSC

Canister Double Monolithic Stationary Convection

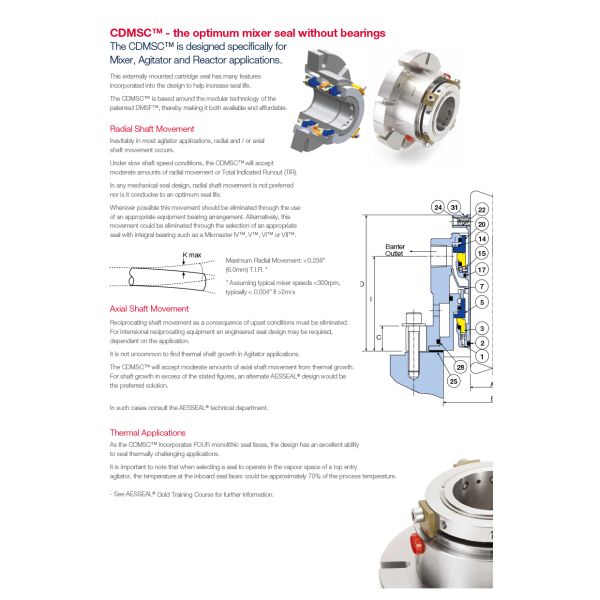

The CDMSC™ is designed specifically for Mixer, Agitator and Reactor applications. This externally mounted cartridge seal has many features incorporated into the design to help increase seal life. The CDMSC™ is based around the modular technology of the patented DMSF™, thereby making it both available and affordable.

Features

  • Externally mounted cartridge seal
  • Ability to accommodate axial and radial movement on mixer applications
  • Integral cooling jacket
  • Multi-port flush option
  • Monolithic seal faces
  • Exotic alloy wetted options

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
