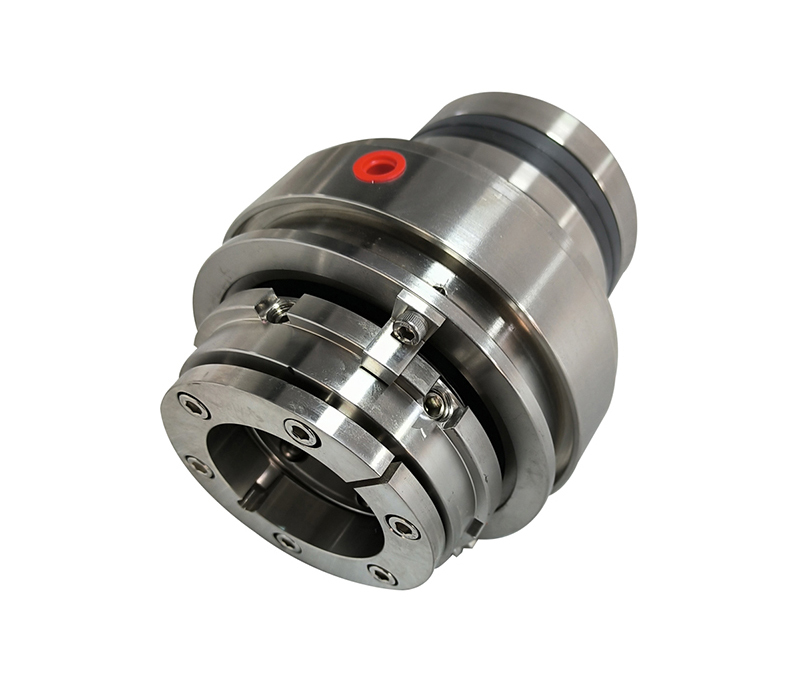

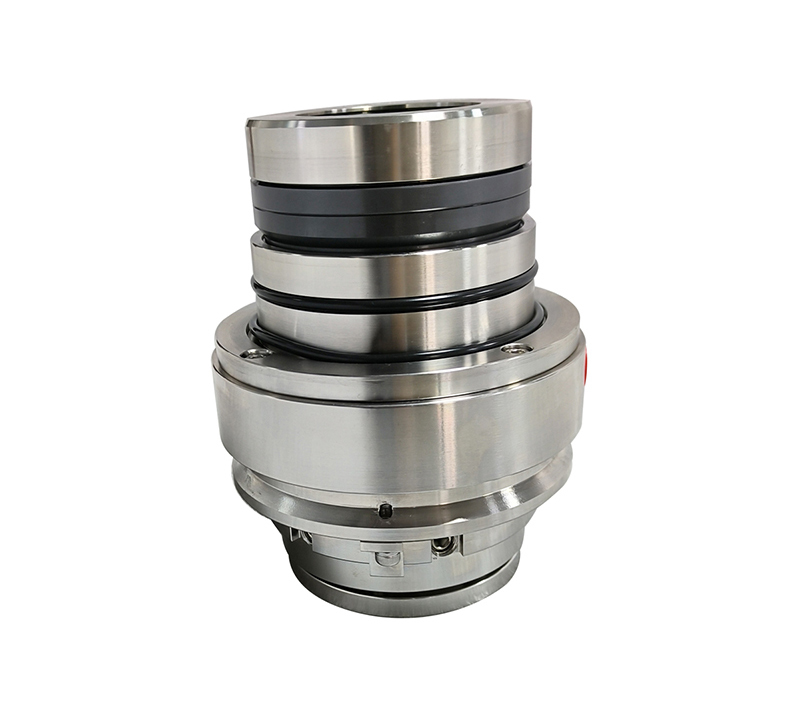

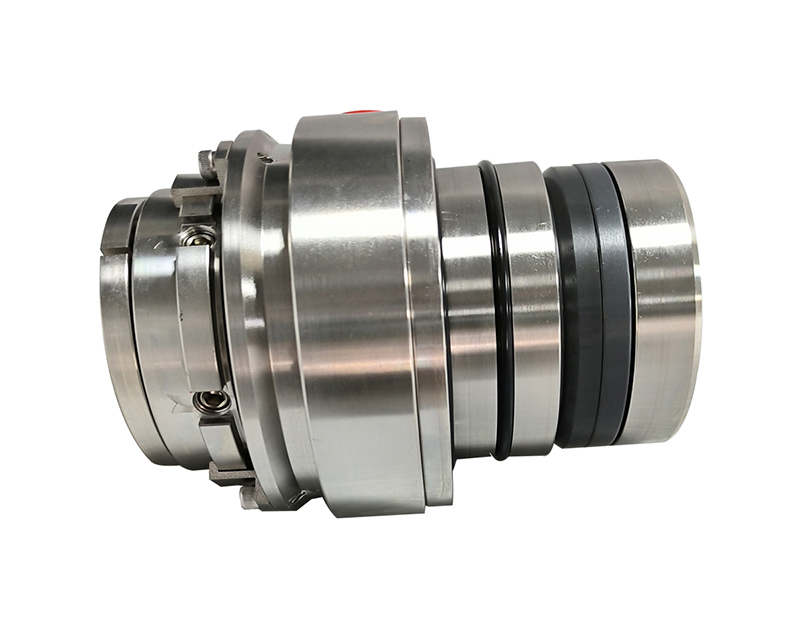

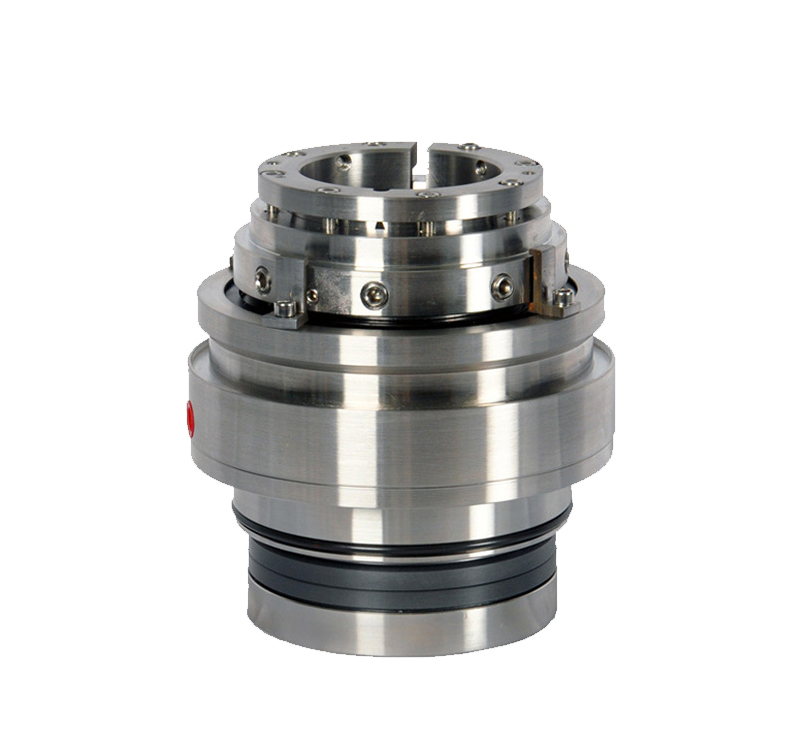

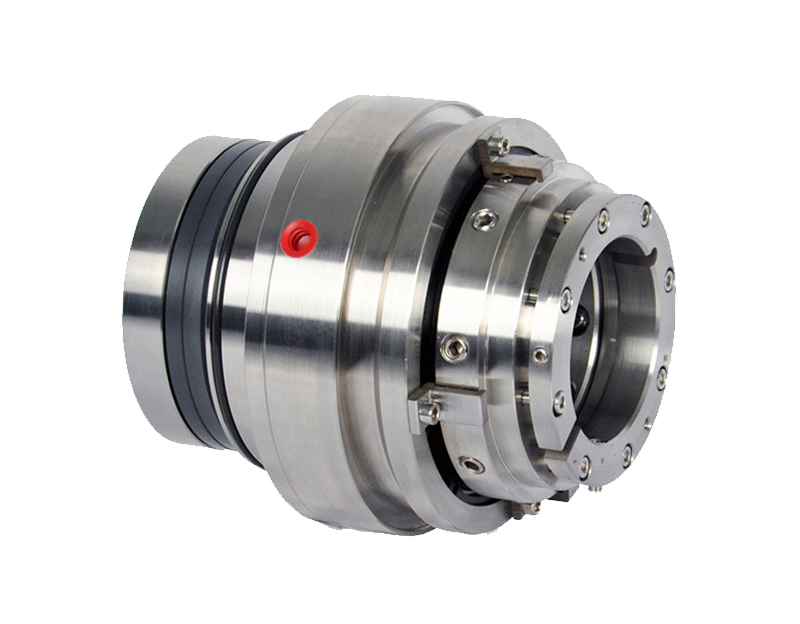

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
Specifications
Supply Ability :
1000000/Month
Auxiliary seal :
Nitrile, ethylene propylene, fluoroelastomer, silicone rubber, and more
Model Number :
SCB428
Shaft Diameter :
25mm to 120mm
Certification :
ISO9001, ISO14001, SGS
Pressure :
0–2.5 MPa
MOQ :
1pc
Packaging Details :
Carton
Linear velocity :
≤15 m/min
Application Scope :
Mixers, Agitator, Reactors
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Sealing surface :
Graphite, cemented carbide, silicon carbide
Delivery Time :
15 working days
Metal components :
304, 316L, 2205, 2507, 1.4529
Brand Name :
BESTSEAL
Model NO. :
SCB428
Place of Origin :
CHINA
Temperature :
-20 to 280 ℃
Description

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors

Application Scope: Mixers, Agitator, Reactors

Applicable Industries: Steelmaking, Paper Production, Chemical Industry, Power Generation, Cement Industry, and More

Applicable Installation Positions: Bottom Mixing, Side-Type Mixing, Top Mixing

Technical Specifications

  • Operating parameters:

    • Specifications:25mm to 120mm
    • Pressure:0–2.5 MPa
    • Temperature:-20 to 280
    • Linear velocity:≤15 m/min
    • Suitable medium:A medium with a high content of impurities such as gypsum and lime slurry.

  • Product features:

    • Sealing surface:Graphite, cemented carbide, silicon carbide
    • Auxiliary seal:Nitrile, ethylene propylene, fluoroelastomer, silicone rubber, and more
    • Metal components:304, 316L, 2205, 2507, 1.4529
    • Structural features:Modular mechanical seals offer convenient installation and simple operation; they provide balanced performance and can rotate in either direction.

Material parameters

Main materials: 316L or 2205, 2507 ,1.4529

Sealing ring material: SSiC or SiC

Rubber materials: Fluororubber or perfluoroether rubber

Mechanical seal structural features

  • Single-surface, modular, multi-spring, with bearing-type design
  • Stationary type, externally mounted spring, flange-mounted

Applicable medium

  • A medium with a high content of impurities such as gypsum and lime slurry.

Work parameters

  • Fixed material content: ≤30%
  • Warm Temperature: ≤120°C
  • Press Force: ≤2.5 MPa
  • Axis Diameter: 25-120 mm

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors

SCB428 Cartridge Mechanical Seal for Mixers Agitator Reactors
