Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Ceramic AESSEAL Double Cartridge Mixer Mechanical Seal DSWIB MIXMASTER-II
Specifications
Place of Origin :
CHINA
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Certification :
ISO9001
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
MOQ :
1pc
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Supply Ability :
1000000/Month
Setting Clips :
Zinc Alloy / Metal
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Packaging Details :
Carton
Brand Name :
BESTSEAL
Sleeve :
316L Stainless Steel
Model Number :
DSWIB (MIXMASTER-II)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Delivery Time :
15 working days
Rotary Drive Screws :
Stainless Steel
Gland :
316 Stainless Steel
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

AESSEAL DSWIB (MIXMASTER-II) Double Cartridge Mechanical Seals with Bearing for Agitators and Mixers

Cartridge Mechanical Seals

Mixer Seals

DSWIB (MIXMASTER-II)

Double Mixer Seal

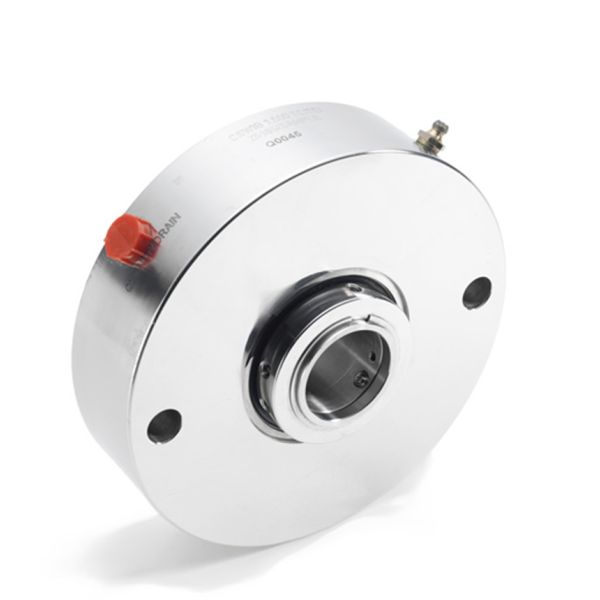

The DSWIB™ (Mixmaster II) is a double mixer seal with integral bearing and concentric face design to reduce the seal's overall length. The seal is offered with the following features:

Features

  • Designed for agitators and mixers
  • Fitted with an integral bearing to stabilize shaft and seal faces
  • Ideal for use on mixers with long overhanging shafts
  • Quench and drain ports can provide cooling or heating to maximize seal life in arduous applications

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
