Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine
Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine
Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine
Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine
Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine
Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-ZH100
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 set/ two months
Delivery Time :
50 work days
Packaging Details :
Wooden Case
Name :
bottle cartoner packaging machine
Feeding mode :
Automatic
Available product :
bottle
Sealing type :
tuck in
Speed :
30-100pcs/min
Power :
1.5kw
Voltage :
220/380v
Available carton size :
(70-200)mm×(35-120)mm×(14-70)mm
Optional :
automatic feeding device, ink-jet printer
Application :
lotion, tablet, capsule, chewing gum
Description

Automatic Bottle Carton Packing Machine Cartoner Packaging Machine for Medical Cosmetics with Automatic Feeding Device

Cartoner Packaging Machine Introduction

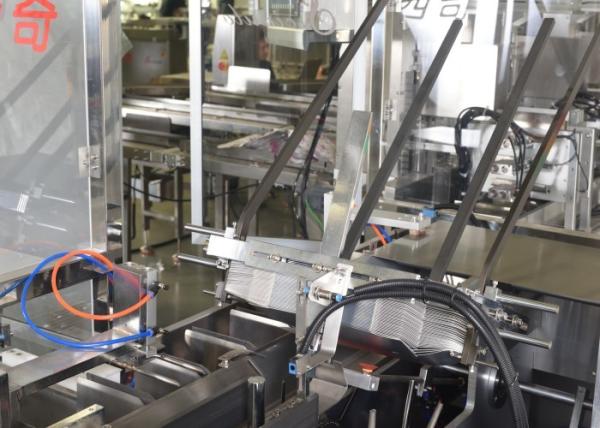

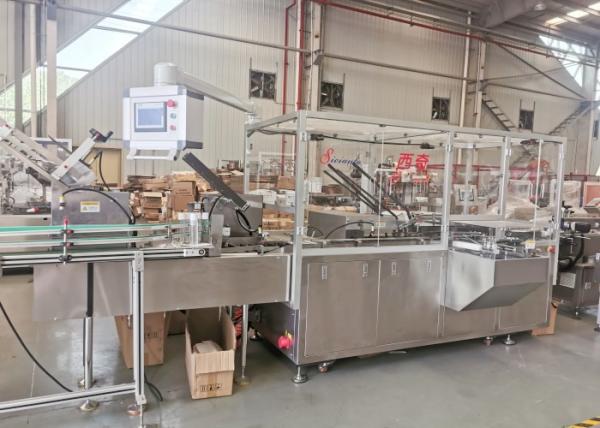

This machine is suitable for automatic feeding and packing of bottle (round bottle, square bottle). On-line automatic bottle finishing and conveying, manual folding (1 to 4 times folding) and transmission, manual detection, carton suction forming and transmission, material into the box, embossing batch number, paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive), missing material removal and finished product output and other whole processes are automatic completion.

Technical Parameter

Model XQ-ZH100

Box

 Quality Requirement 300-450g/m²
Dimension Range (70-200)mm×(35-120)mm×(14-70)mm
Production Capacity 30-100pcs / min
Total Power 1.5kw
Working Voltage 220V/380V 50Hz
Instruction Leaflet Size Quality Requirement 60-70g/m²
Unfolded Dimension (80-250)mm×(90-170)mm
Folded Dimension 1-4 folded
Compressed Air Working Pressure ≥0.5Mpa
Air Consumption 120-160L/min
Machine Weight 1300kg
Machine Dimensions 4300mm×1300mm×1900mm

Machine Principle

Cosmetic Bottle Cartoner Packaging Machine , 100pcs/Min Box Packing Machine

Cartoning Machine Features

Model:XQ-ZH100 Automatic Bottle Carton Packing Machine Cartoner Packaging Machine for Medical Cosmetics with Automatic Feeding Device

Man-machine interface operating system.
Mechanical overload automatic shutdown.
Automatic elimination of the lack of packaging and instructions of the carton.
Fault display, alarm and finished product count.
Stable performance, easy to understand operation.
PLC automatic control system, frequency conversion speed control, electrical components are all international famous brands.
