180-200 Pcs/Min Cartoner Packaging Machine 380v Capsule Filling Machine
180-200 Pcs/Min Cartoner Packaging Machine 380v Capsule Filling Machine
180-200 Pcs/Min Cartoner Packaging Machine 380v Capsule Filling Machine
180-200 Pcs/Min Cartoner Packaging Machine 380v Capsule Filling Machine
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-ZH180
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 set/ two months
Delivery Time :
50 work days
Packaging Details :
Wooden Case
Name :
capsule board cartoner packaging machine
Feeding mode :
Automatic
Available product :
capsule board
Sealing type :
insert flap
Speed :
180-200pcs/min
Power :
7.6kw
Voltage :
380v
Available carton size :
(78-170)*(33-100)*(15-90)mm
Optional :
leaflet device
Application :
oral liquid, penicillin bottle
Description

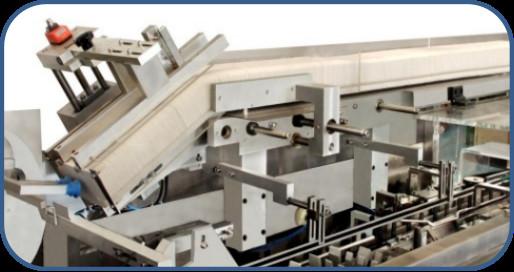

Automatic Capsule Board Cartoner Packaging Machine with Automatic Feeding Device

Cartoning Machine Introduction

The automatic continuous cartoning machine manufactured by SICIAUTO picks a single piece from a stack of folded cartons. The machine will fill it with a product or a number of products horizontally through an end that is open, and then close it by tucking an end flap of the carton or putting on glue or adhesive. Multiple arm vacuum pickup ensures continuous & smooth operation with minimal human interaction. It has very fast speed, it’s more suitable for pharmaceutical factory which has high requirements with speed, it can reach about 180-200pcs/min.

Technical Parameter

Model Available Box Size Speed Power
XQ-ZH180

(78-170)*(33-100)*(15-90)mm

(can be customized)

 180-200pcs/min 7.6kw
Voltage Working Pressure Air Consumption Machine dimension
380v 50Hz 0.6-0.8MPa 0.6-1m³/h 4040 (mm) × 1450 (mm) × 1800 (mm)

Machine Principle

180-200 Pcs/Min Cartoner Packaging Machine 380v Capsule Filling Machine

Cartoning Machine Features

Model:XQ-ZH180 Automatic Capsule Board Cartoner Packaging Machine with Automatic Feeding Device

1 Follow GMP balcony type structure design.
2 Follow type double silo blanking, servo motor control, counting, blanking accurate and fast.
3 Unique three-star wheel continuous suction box with pre-opening function.
4 Central type carton size adjustment design, with digital auxiliary display.
5 Lengthened cartons feeding conveyor belt, reduce cartons loading times
6 Adjust on machine when change size, don't need to change mould.
