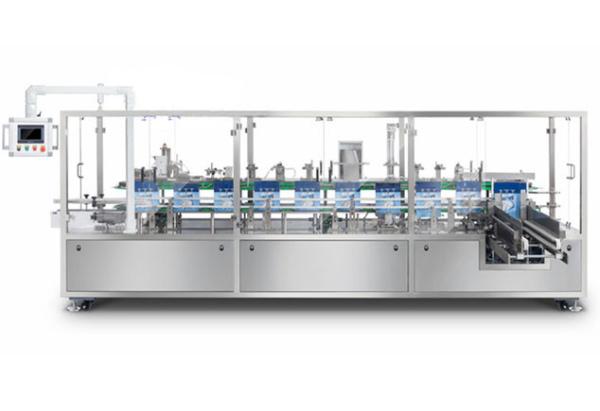

60-80 Pcs/Min Semi Automatic Cartoner Perfume Vertical Packing Machine
60-80 Pcs/Min Semi Automatic Cartoner Perfume Vertical Packing Machine
60-80 Pcs/Min Semi Automatic Cartoner Perfume Vertical Packing Machine
60-80 Pcs/Min Semi Automatic Cartoner Perfume Vertical Packing Machine
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-VC160
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 set/month
Delivery Time :
50 work days
Packaging Details :
Wooden Case
Name :
vertical cartoning machine
Feeding mode :
semi automatic
Available product :
bottle
Sealing type :
tuck in
Speed :
60-80pcs/min
Power :
3kw
Voltage :
380v
Available carton size :
(30*40*80)-(120*85*240)mm
Optional :
automatic feeding device
Application :
lotion, emulsion
Description

Vertical Semi Automatic Perfume Bottle Cartoner Packaging Machine 60-80pcs/min

Vertical Cartoning Machine Introduction

Cartoning machines or cartoners are packaging systems which erect, close and fill sealed cartons. In essence, they pick up a flat carton (known as a blank), erect it into a rectangular shape, push the product into the carton (or fill it through a vertical flow), and close the carton via end flaps or a fold-over lid.

It is a vertical cartoning machine that can put the products, liner, and leaflet into the carton automatically, combining open carton, top-load product, close and seal cartons in one machine. It is widely used for packaging foodstuffs, confectionery, medicine, cosmetics, etc., and can vary based on the scale of business.

Technical Parameter

Model XQ-VC160
Production Capacity 60-80 pcs/min
Box Requirements 200-400 g/㎡
Power 3kw
Power Supply 380V 50HZ
Compressed Air 0.6 mpa
Machine Size 3278*1805*1367 mm

Machine Principle

60-80 Pcs/Min Semi Automatic Cartoner Perfume Vertical Packing Machine

Cartoning Machine Features

Model:XQ-VC160 Vertical Semi Automatic Perfume Bottle Cartoner Packaging Machine

-The speed can be continuously adjusted between 10 and 70 boxes/min through a gearbox adjusted by a potentiometer mounted on the board.

-The electronic installation is in current safe mode.

-The painted lid provides lower protection.

-The upper part is double secured under altuglass protection.

-Surface treatment galvanized or nickel plating.
