Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray
Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray
Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray
Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray
Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray
Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-KX-418
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 set/ month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Name :
Cigarette Box Carton Erector Machine
Structure :
box
Sealing Type :
tape
Speed :
18pcs/min
Power :
240w
Voltage :
110/220V 50/60Hz 1 Phase
Available dimension :
L250-450×W150-400×H100-400mm
Application :
mask, lotion, toys
Description

Automatic Cigarette Box 18pcs/min Vertical Carton Erector Machine for Tobacco

Carton Erector Machine Introduction

The automatic carton erector is developed and produced for mass production line. The vertical production speed can reach 18 ctns/min. It can draw cartons and form it simultaneously, and the price is 50% lower than other vertical erector in the same level. This erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.

Technical Parameter

MODEL XQ-KX-418
Carton Opening Speed 18ctns/min
Carton Size L250-450×W150-400×H100-400mm (The minimum cannot exist at the same time)
Power Supply 110/220V 50/60Hz 1 Phase
Power 240W
Adhesive Tape Width 48/60/75mm (Choose one type)
Carton Storage Quantity 80-100pcs (1000mm)
Air Consumption 500NL/min
Air Compressing 6kg/cm³
Table Height 620+30 mm

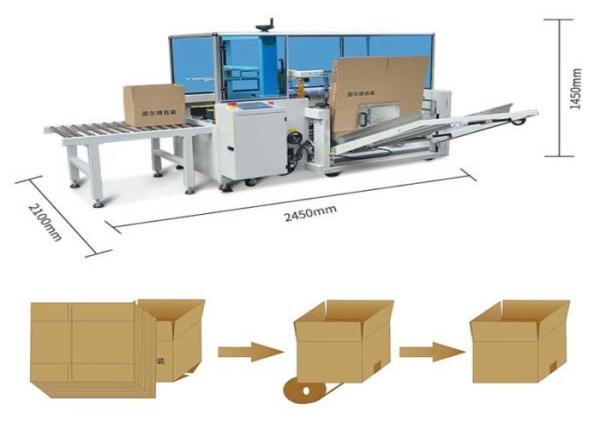

Machine dimension L2450×W2100×H1450mm
Machine Weight 550KG

Machine Principle

Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray

Carton Direction

Cigarette Tobacco Cardboard Box Erector Machine 18 Pcs/Min Vertical Tray

Carton Erector Machine Features

Model: XQ-KX-418 Automatic Cigarette Box 18pcs/min Vertical Carton Erector Machine for Tobacco

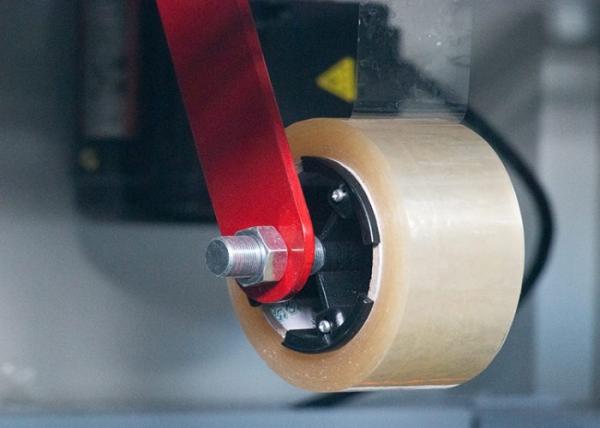

1. Equipped with protective door, replacing tape conveniently and safely as the door open.

2. Using endurable conveyor belt with strong friction which can transport steadily.

3. Equipped with protective door, replacing tape conveniently and safely as the door open.

4. Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.

5. Changing the size of the carton can be adjusted manually.

6. The unpacking of goods is completed by machine instead of labor.
