Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting
Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting
Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting
Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting
Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting
Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-KX-450
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 set/ month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Name :
Horizontal Carton Erector Machine
Adhesive Tape Width :
48/ 60mm, 2 inches, 2.5 inches
Structure :
Horizontal
Speed :
50ctn/min
Power :
1000W
Voltage :
220V 50Hz single phase
Available dimension :
L250-450×W150-400×H150-300mm
Application :
cosmetics, hardware, daily chemical, tobacco
Carton Storage Quantity :
80pcs (800mm)
Machine Dimension :
L250-450×W150-400×H150-300mm
Air Consumption :
450NL/min
Compressed Air :
6kg/cm³
Description

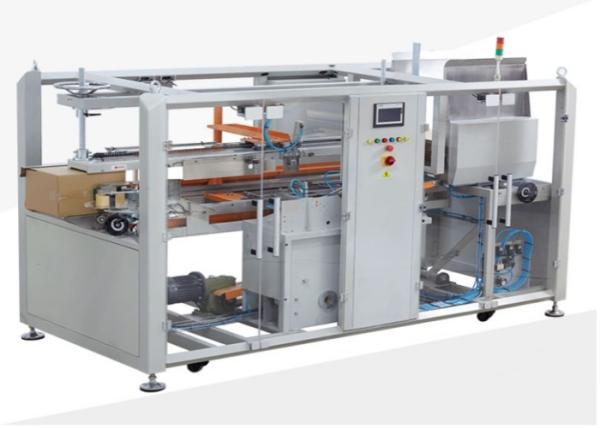

XQ-KX-450 High Speed 50CTN/min Carton Erector Machine for Warehouse

Carton Erector Machine Introduction

The high-speed carton erector is a new machine designed by our company for large-scale warehousing, logistics and other industries. Cam drive system and the connecting rod are used to control the entire machine motion instead of manual operation. This carton erector is also widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.

The structure design of the machine adopts a 45° oblique angle with no ash falling, and has an automatic alarm reminder function for broken belts and no belts, which is more convenient for maintenance.

Technical Parameter

MODEL XQ-KX-450
Carton Opening Speed 50ctns/min
Carton Size L250-450×W150-400×H150-300mm
Power Supply 220V 50Hz 1 Phase
Power 1000W
Adhesive Tape Width 48/60mm (Choose one type) 2 inch ,2.5 inch
Carton Storage Quantity 80pcs (800mm)
Air Consumption 450NL/min
Air Compressing 6kg/cm³
Table Height 960+40 mm
Machine dimension L3120xW1410xH1900mm
Machine Weight 1200KG

Machine Principle

Warehouse High Speed Automatic Box Erector Machine 50 CTN/Min Carton Erecting

Carton Erector Machine Features

Model: XQ-KX-450 XQ-KX-450 High Speed 50CTN/min Carton Erector Machine for Warehouse

  • Easy to maintain: The machine structure is designed with 45° bevel Angle, dust-free, easy to maintain.
  • Spare parts durable: Siemens, Schneider and other well-known brand spare parts, to ensure accurate molding control of the installation machine, stable and durable.
  • High speed: The machine adopts CAM drive system combined with connecting rod to control the whole machine movement, the production speed reaches 50 CTNS /min.
  • Simple operation: PLC+ man-machine interface control, easy operation, simple maintenance, stable performance.
  • Sucking cartons, forming, folding and sealing the bottom can be completed at one time, and the producing speed can reach 50 ctns/min.
