Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Moulding Srubber Tower 50mm 76mm Plastic Pall Ring
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Model Number :
BS-PPR
Processing Service :
Moulding
Thickness :
1.0mm-3.0mm
Bulk Weight :
50-150kg/m3
Color :
Origin color or as required
Plastic Available :
New PP, PP,PE,PVC,PVDF,RPP, PTFE,etc
Certification :
ISO, SGS, FDA, Mill test report
Application :
Mass transfer, water treatment
Description

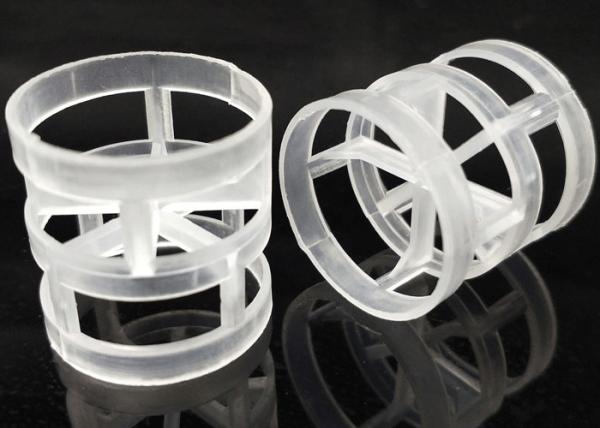

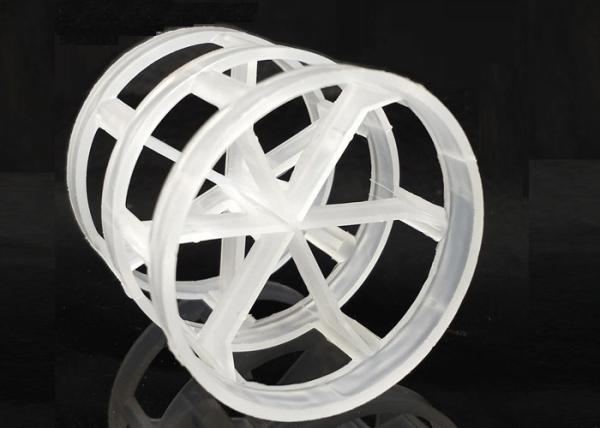

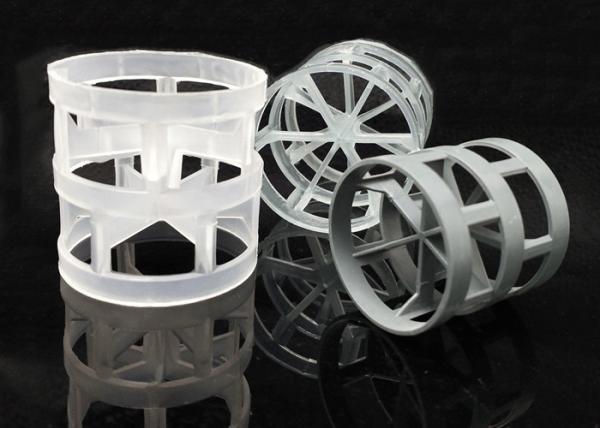

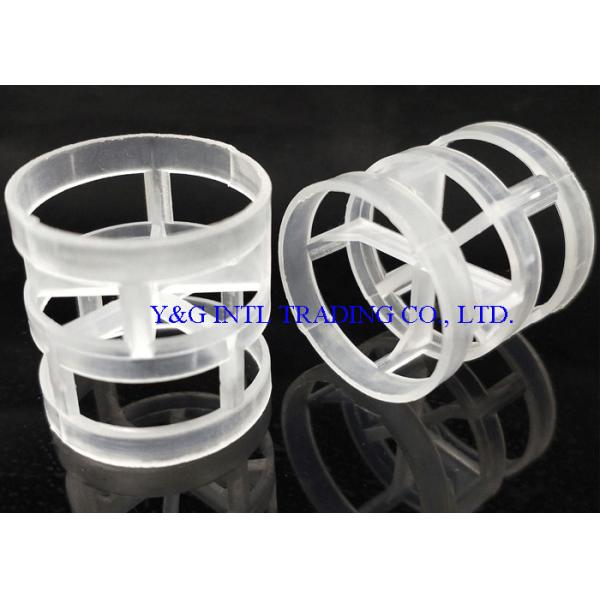

16 ,25, 38, 50,76mm Plastic Pall Ring in srubber tower

Plastic pall ring is made from heat resistant and chemical corrosion resistant plastics. It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..

Features:
1. Lower pressure drop
2. Good liquid/gas distribution and higher mass transfer efficiency versatility, easily wetable, high resistance to fouling ,high temperature.
3. High temperature resistance

Item Plastic Pall Rings
Model Dimension No. per volume Surface Area Void Volume Dry packing factor
DiaxHgtxThk mm Pcs/m3 m2/m3 % m-1
PPR-16 16X16X1.0 170000 188 91.1 275
PPR-25 25X25X1.2 52500 175 90 239
PPR-38 38X38X1.4 15800 155 89 220
PPR-50 50X50X1.5 6500 93 90 127
PPR-76 76x76x2.6 1820 73.2 92 94
Application - Aviation industry
- Automotive industry
- Brominating plants
- Chemical industry
- Caustic soda plants, CL lines
- Deionization plants
- Pharmaceutical industry
- Paper and pulp process lines
Material Polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
Delivery Time 7-10 days since payment receipt.

Package Plastic bag Supersack Carton
1X20GP 25m3 20-24m3 20m3
1X40GP 54m3 40m3 40m3
