38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
38mm 50mm Plastic Packing Pp Pall Ring 150 Kg/M3 Bulk Density For Tower Packing
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Model Number :
PP pall ring
Color :
White plastic pall ring
Thickness :
1.2 mm
Diameter :
25 mm 38mm 50mm
Shape :
Ring
Bulk density :
150 kg/m3
Description

38mm 50mm plastic packing pp pall ring for tower packing

Packaging & Delivery

Selling Units:

Single item
Single volume:
1000 cm 3
Single gross weight:
69.0 kg
Package Type:
25kgs/pp bag or 1m3/super sack for plastic pp pall ring
Lead Time :

Quantity(Cubic Meter) 1 - 10 >10
Est. Time(days) 3 To be negotiated

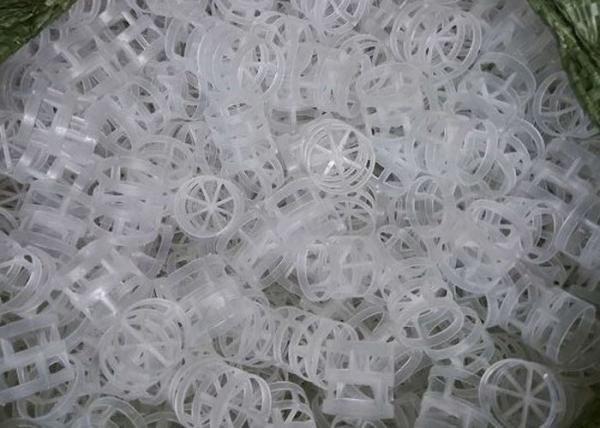

1.Plastic pall ring product description
High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
Widely used in toluene seperation, ethylbenzeneseperation, desulfurization system, ...Etc.
The structure of Pall Ring improves distribution of gas-liquid. Its efficiency can be improved 50%. Compared with Raschig Ring, it has half of presuredrop

2.Plastic pall ring technical data sheet

Model Pall Ring
Material PP,RPP,PE,PVC,CPVC,PVDF,etc.
Spec of PP Pall Ring D*H*T Number per m³ Bulk density Surface area Free volume F factor
(mm) PCS (kg/m³) (m²/m³) (%) (m-1)
Dg16 16*16*1.1 112000 141 274 91 249
Dg25 25*25*1.2 53500 150 175 90 239
Dg38 38*38*1.4 15800 98 115 89 220
Dg50 50*50*1.5 6500 74.8 112 90 154
Dg76 76*76*2.6 1930 70.9 73 92 94
Advantages: High Free Volume; Low Pressure Drop; Low Mass-Transfer Unit Height; High Flooding Point; Small Specific Gravity; High Mass Transfer; Uniform Gass-Liquid Contact; Lightweight Construction; Towerr Packing.
Typical Application 1. Absorption; 2. Scrubbing; 3. Stripping services; 4. All kinds of Seperation 5. Plastic Packed Columns; 6. Cooling Tower Packing
Package : Jumbo bag;
M.O.Q: 1 CBM
Payment Terms: T/T; L/C; PayPal; West Union
Warranty: a) By National Standard HG/T 21556.3-1995
b) Offer lifetime consultation on problems occurred
Container 20GP 40GP 40HQ Normal order Minimum Order Sample order
Quantity 25 CBM 54 CBM 68 CBM <25 CBM 1 CBM < 5 pcs
Delivery Time 7 days 14 days 20 days 7 Days 3 days Stock
Price:(@ø50 PP) USD/CBM 322 320 318 326 330 discussable
Comments: Customized making is allowed.
