Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…
Plastic Modling Type :
Injection, Extruding.
Diameter :
28-76mm
Bulk Weight :
48-85kg/m3
Color :
Origin color or as required
Void Rate :
94%
Life Span :
3 years
Application :
Industry, tower packing
Description

Heat Resistant Plastic Conjugate Ring Packing High Free Volume For Petroleum Industry

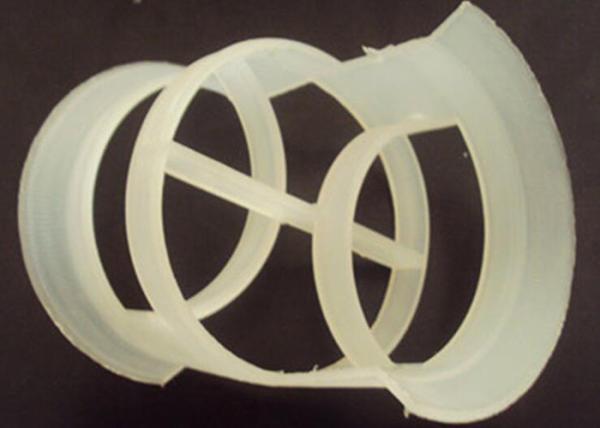

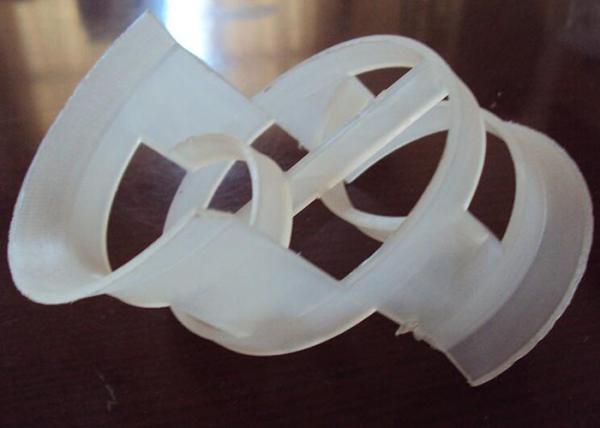

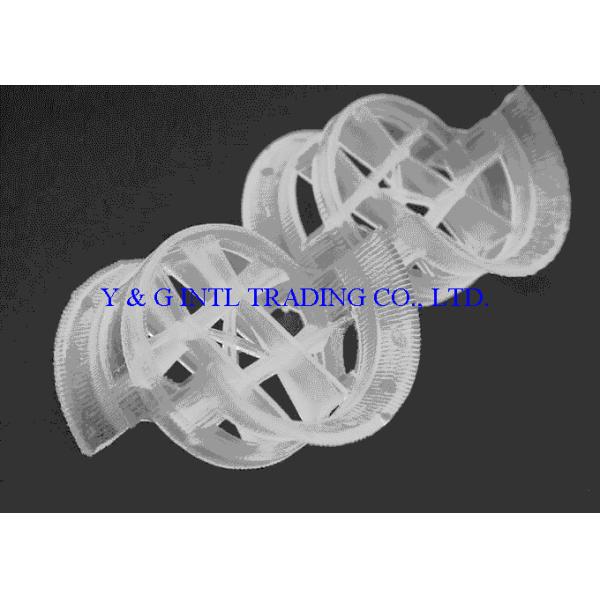

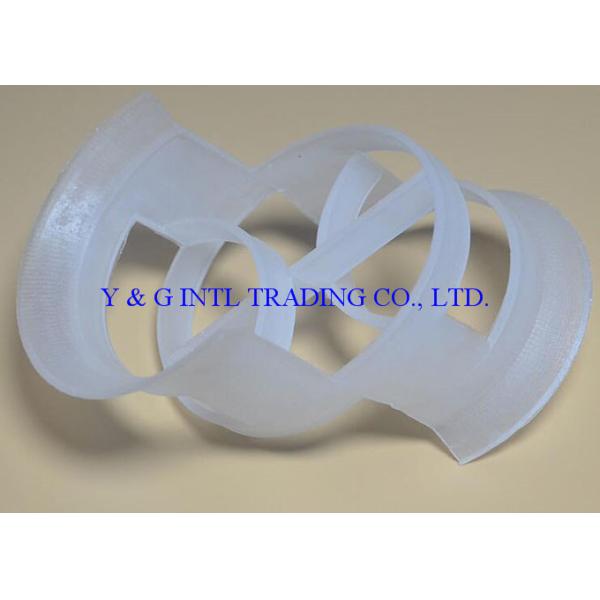

Plastic Conjugate Ring packing is made from heat resistant and chemical corrosion resistant plastics. It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 Degree C to 150 Degree C. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Material:Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…

Specification of Plastic Conjucate Rings

Diameter

(mm)

Size

(mm)

Surface Area

(m2/m3)

Void Rate

(m3/m3)

Number

Per M3
25 25x25x1.2 185 0.90 74000
38 38x38x1.5 142 0.91 16000
50 50x50x1.5 104 0.92 9500
76 76x76x3.6 81 0.93 3900

Feature: It draw benefits of ring and saddle packing .Owing to conjugate curve rib structure and appropriate length,there are point contact and aren't intussusceptive between packings and tower or packings It has better hydrodynamics and mass transfer performance.

Application: Distillation, Gas absorption, Deabsorption system.
