Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…
Plastic Modling Type :
Injection, Extruding.
Diameter :
28-76mm
Bulk Weight :
48-85kg/m3
Color :
Origin color or as required
Void Rate :
94%
Life Span :
3 years
Application :
Industry, tower packing
Description

Acid Gas Absorption Plastic Heilex Ring PP PE CPVC RPP PVDF For Tower Packing

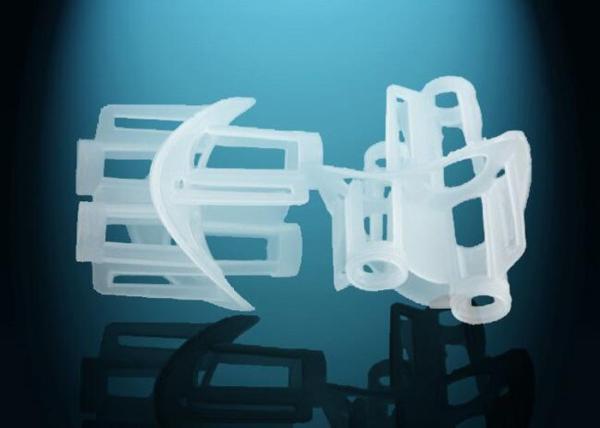

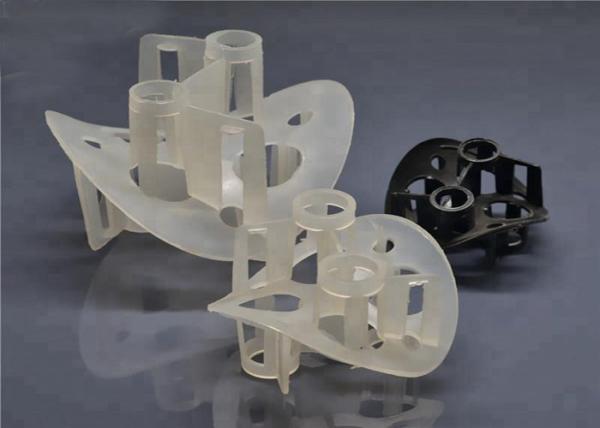

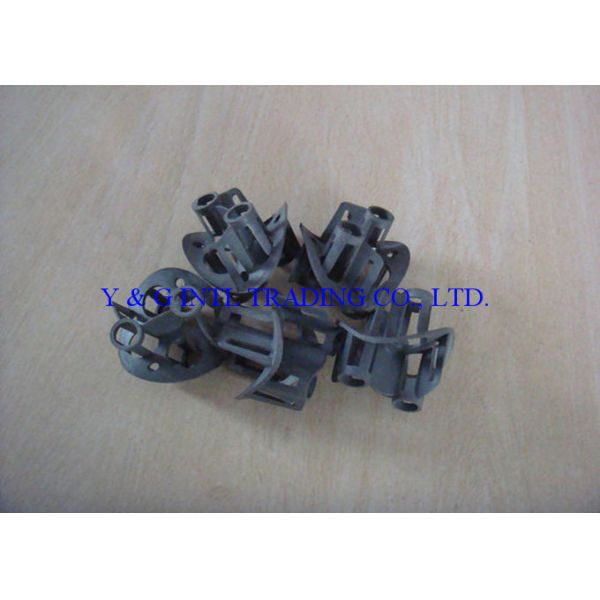

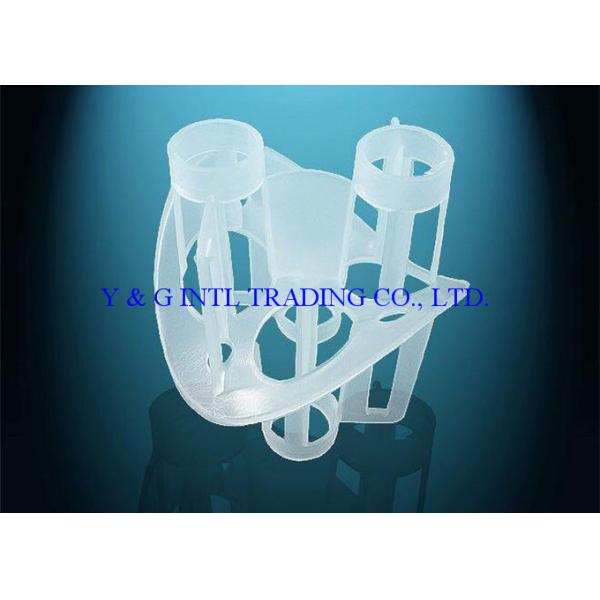

Plastic heilex ring is a new kind of open-celled packing. Heilex ring has unique configuration, and usually made by PP injection. Plastic heilex ring enlarges its surface area and void space which contribute a lot to enhance the product performance. And heilex ring won’t nest, and the gas-liquid could be well distributed. We can provide heilex rings in a variety of plastic, such as PP, Polypropylene, PVC, PVDF, HDPE and Glass Filled Polypropylene etc.

Material:Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…

Specification of Plastic Heilex Ring:

Diameter (mm) Size (mm)

Surface Area

(m2/m3)

Void Rate

(m3/m3)

Weight

Kg/M3

Number

PCE/M3

Dry Packing Factor

(m-1)
Ф50 50×50×1.5 107 0.93 63 8200 128
Ф76 76×76×1.8 75 0.94 54 3200 87
Ф100 100×100×2.0 55 0.95 45 1450 62
Advantages: High void ratio, low pressure drop.

Application: mainly applied to gas absorption, acid gas absorption, cooling and gas purification, etc.
