High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…
Plastic Modling Type :
Injection, Extruding.
Diameter :
28-76mm
Bulk Weight :
48-85kg/m3
Color :
Origin color or as required
Void Rate :
94%
Life Span :
3 years
Application :
Industry, tower packing
Description

High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact

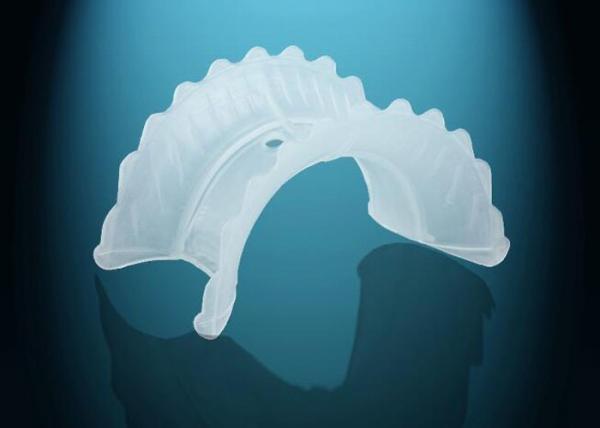

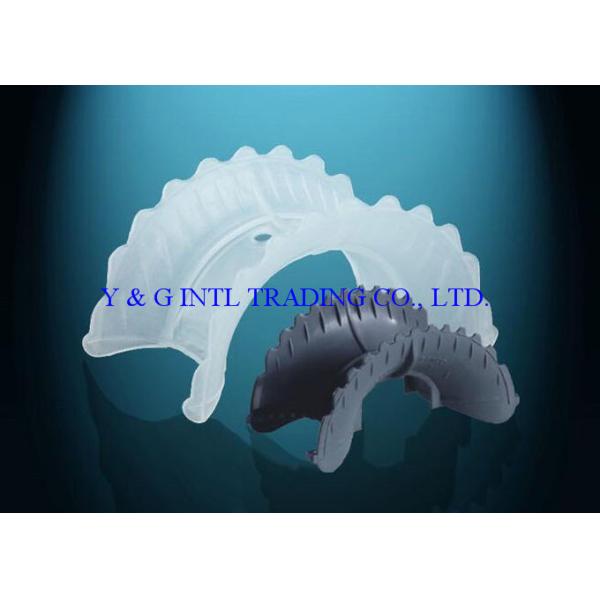

Plastic Super Saddle Ring (Equivalent to Koch-Glitsch SUPER INTALOX) are a versatile and economical industry standard with well-known performance characteristics. Low pressure drop, high flux, high efficiency , easy to handle.

Material:Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…

Performance:

Good Capacity and Low Pressure Drop

Higher capacity and lower pressure drop than ceramic saddles.

Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.

Higher Liquid Hold-up and Residence Time

Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.

Versatile Standard Packing

Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.

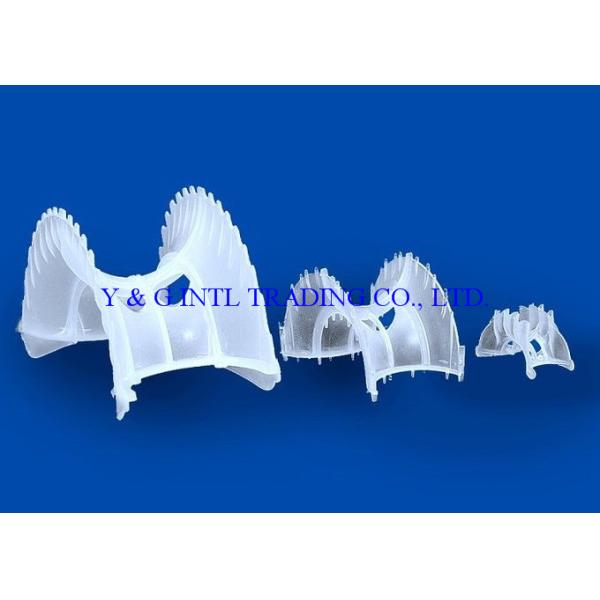

Specification of Plastic Super Saddle Ring:

Diameter (mm)

Size (mm)

D1x D2 x H x t

Surface Area

(m2/m3)

Void Rate

(m3/m3)

Number

PCE/M3

Weight

Kg/M3

Dry Packing Factor

(m-1)
25 25×38x19x1.2 207 0.90 55000 81 284
38 38×60x30x1.2 140 0.92 17000 72 180
50 50x80x40x1.5 108 0.93 6700 60 134
76 76x114x57x2.5 89 0.94 1500 52 107

Applications: Absorption, scrubbing, and stripping services; Pulp and paper service, such as bleach plant absorbers; Versatile alternative to ceramic saddles.

High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact

High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
