Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40
Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40
Specifications
Brand Name :
OED/OEM is available
Model Number :
Saw blade blank
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Type :
Metal cutting tools
Application :
Copper alloy
ISO Grade :
K30/K40
TRS :
2000
Hardness :
HV30 1500-1650
Density :
14.5
Description

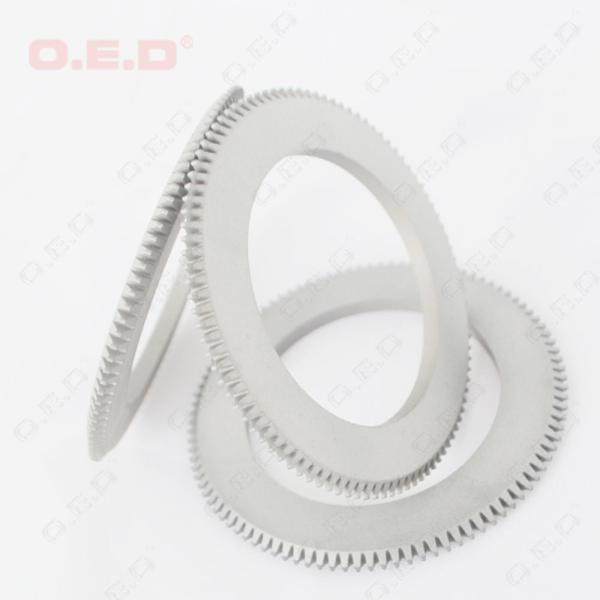

Raw Sintered Carbide Saw Blades K30/K40 Carbide Metal Copper Cutting Tools​

Diameter 60.5mm
Inner hole 45mm
Thickness 3mm
Roundness 0.015
Ra 6.3

Teeth NO. 100pcs

Carbide raw sintered saw blade with 100 teeth.

Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40


Recommended grades for metalworking

Application
Code		 Chemical Composition Physical Properties
of powder		 Physical and mechanical properties
and micro structure as sintered		 Application recommended
Co Tic/
TacNbc		 WC Hall Flow Apparent
density		 Density Hardness Transverse
rupture
strength		 Coercivity Magnetic
saturation		 Porosity
s/25cm3 g/cm3 g/cm3 HV 30 N/mm2 KA/m %
P10 9.5 35 55.5 35 2.52 10.3 1525-1675 ≥1130 9.2-11.5 8.3-9.5 A02 B00 For machining steel and cast steel
P20 8.2 14 77.8 32 2.83 11.52 1560-1700 ≥1400 12.0-15.5 7.5-8.2 A02 B00 For machining long-chip
steel, cast steel and forgeable cast iron
P25 9.5 21.9 68.6 35 2.5 11.42 1400-1550 ≥1700 8.0-10.4 8.5-9.5 A02 B00
P30 9.3 6.3 84.4 32 3.14 13.02 1370-1560 ≥1750 9.5-12.5 8.6-9.2 A02 B00
10 20 70 33 3.08 12.86 1425-1575 ≥1600 13.7-15.5 8.1-9.1 A02 B00
P35 11 12 77 35 3.24 13.12 1320-1460 ≥1650 10.7-13.1 9.1-10.1 A02 B00 For machining steel and
cast steel parts with different pores including sand holes.
P40 12 18.93 69.07 35 2.88 12.75 ≥1400 ≥2250 15.0-19.0 10.0-11.2 A04 B02

Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40

Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40

Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40

Raw Sintered Carbide Metal Cutting Tools Saw Blades K30/K40
