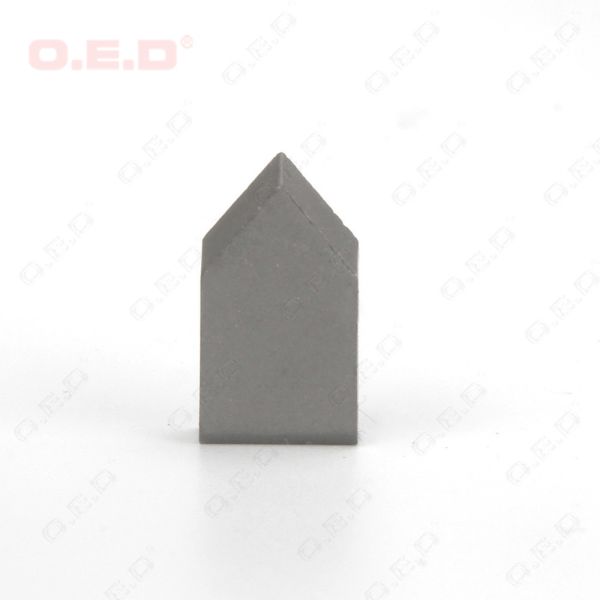

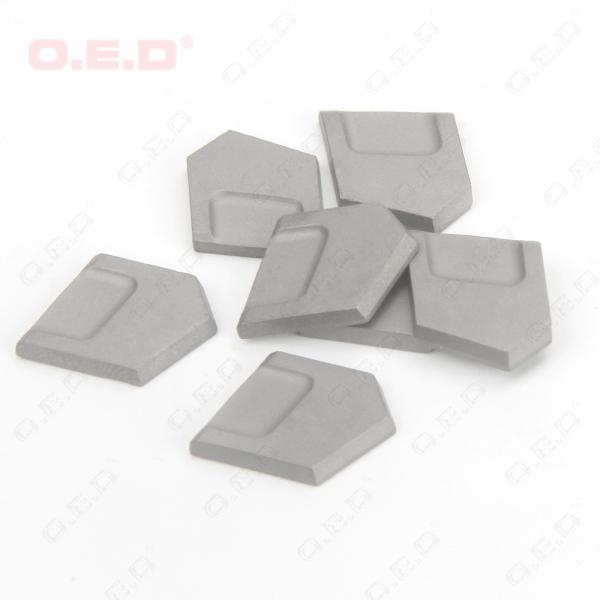

YG8C YG10C YG11C Tungsten Carbide Brazed Tips for CNC machines
YG8C YG10C YG11C Tungsten Carbide Brazed Tips for CNC machines
YG8C YG10C YG11C Tungsten Carbide Brazed Tips for CNC machines
YG8C YG10C YG11C Tungsten Carbide Brazed Tips for CNC machines
Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Type :
Carbide brazed tips
Application :
Metal working tools
ISO Grade :
K20
TRS :
2800
Hardness :
HRA 90.5-92
Density :
14.8
Length :
10-30
width :
10-30
Thickness :
1-10
Description

Tungsten Carbide Brazed Tips For Metal Working Cutting Blade Carbide Tipped Brazed Tools​

Tungsten Carbide Brazed Tips are widely used for CNC machines as lathe tools, grounding tools, drilling tools, forming lathe tools, end mill tools, etc.
Material: high quality raw material with submicron and average grain size.
Tolerance: strict tolerance range control which can reach +/- 0.01mm;
Grade: various to choose from: YG8C, YG10C, YG11C and so on.
Types: standard, conical, parabolic, ballistic
Physical performance: high hardness and impact strength, very good mechanical and chemical stability.

Recommended grades for brazed tips:

Grade Density Hardness TRS
(g/cm3) (HRA) (MPa)
K10/YG6X 14.95 91.5 1800
K20/YG6 14.95 90.5 1900
OT15 11.4 91.5 1600
OT14 11.6 90.8 1700
OT5 12.9 90.5 2200
M10 13.1 91.6 1600
M20 13 90.6 1800
