Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Type :
Countersink
Application :
For chamfer working
ISO Grade :
K10
TRS :
2200
Hardness :
HRA 92.5
Density :
15
Diameter :
5-60
Description

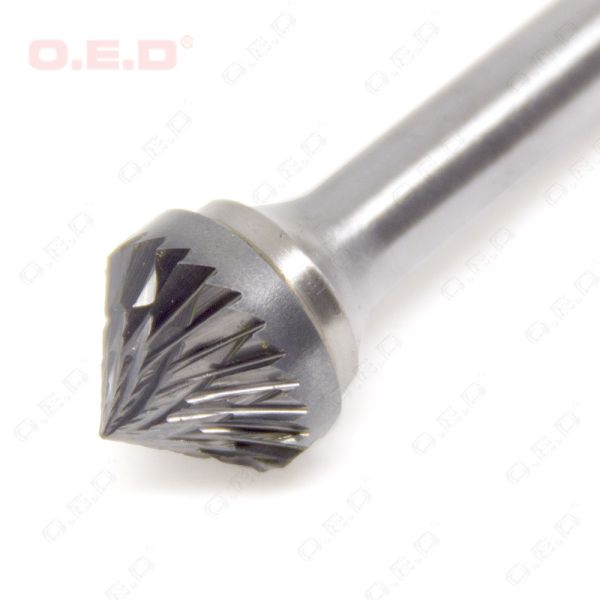

K10 Solid Carbide Countersink Drill Bits Carbide Burrs For Metal Working Chamfer Tools​

Carbide countersink drill bits for metal holes chamfer working.

Diameter 6-50mm, customized is available.

Length 10-55mm

Application: for metal working.

Solid carbide countersink drill bit and welding countersink drill bits are available.

K10 Solid Tungsten Carbide Drill Bits For Metal Countersink TypeK10 Solid Tungsten Carbide Drill Bits For Metal Countersink Type


Recommended grades for Metal working:

Application
Code		 Chemical Composition Physical Properties
of powder		 Physical and mechanical properties
and mirco structure as stintered		 Application recommended
Co Tic/
TacNbc		 WC Hall Flow Apparent
density		 Density Hardness Transverse
rupture
strength		 Coercivity Magnetic
saturation		 Porosity
s/25cm3 g/cm3 g/cm3 HV 30 N/mm2 KA/m % 　
K05 6 0.3 93.7 35 3.45 14.94 1650-1750 ≥1560 19.5-24.5 5.1-5.9 A02 B02 For machining super-hard
grey cast steel, hardening steel, chilled iron, high
silicon-aluminum alloy,high wear-resistant plastic,
hard paper plate and ceramics.
6 2 92 35 2.85 14.95 1350-1500 ≥1600 21.5-26.5 4.9-5.9 A02 B02
K10-K15 6 0.4 93.6 35 3.45 14.91 1665-1835 ≥123 19.5-24.5 5.2-6.2 A02 B02 For machining cast iron with hardness higher than
200HB, short-chip forgeable cast iron, silicon-aluminum
alloy, copper alloy, plastic, glass, ceramics and stones.
K20 6 0.4 93.6 35 3.25 14.9 1600-1700 ≥1670 16.3-19.2 5.2-6.0 A02 B02 For machining grey cast iron with hardness lower than
200HB, non-ferrous metal, copper, brass and aluminum
7.8 1 91.2 35 3.35 14.61 ≥1400 ≥2000 15.0-18.0 6.6-7.8 A02 B02
K30 6 2 92 35 3.45 14.8 1450-1600 ≥1320 13.5-15.1 5.3-6.0 A02 B00 For machining low-hardness grey cast iron, low-strength
steel and compact wood.

K10 Solid Tungsten Carbide Drill Bits For Metal Countersink Type

K10 Solid Tungsten Carbide Drill Bits For Metal Countersink Type


K10 Solid Tungsten Carbide Drill Bits For Metal Countersink Type


K10 Solid Tungsten Carbide Drill Bits For Metal Countersink Type
