K20 Round Carbide Milling Inserts For Processing Aluminum Materials
K20 Round Carbide Milling Inserts For Processing Aluminum Materials
K20 Round Carbide Milling Inserts For Processing Aluminum Materials
K20 Round Carbide Milling Inserts For Processing Aluminum Materials
K20 Round Carbide Milling Inserts For Processing Aluminum Materials
K20 Round Carbide Milling Inserts For Processing Aluminum Materials
Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Type :
Milling tools
Application :
For ALU
ISO Grade :
K20
TRS :
2800
Hardness :
HRA 90.5-92.5
Density :
14.5
Outer Dia :
60
Inner Dia :
15
Thickness :
15
Description

K20 Carbide Milling Inserts Aluminium Insert Metal Working Tools Special Carbide Cutting Tools

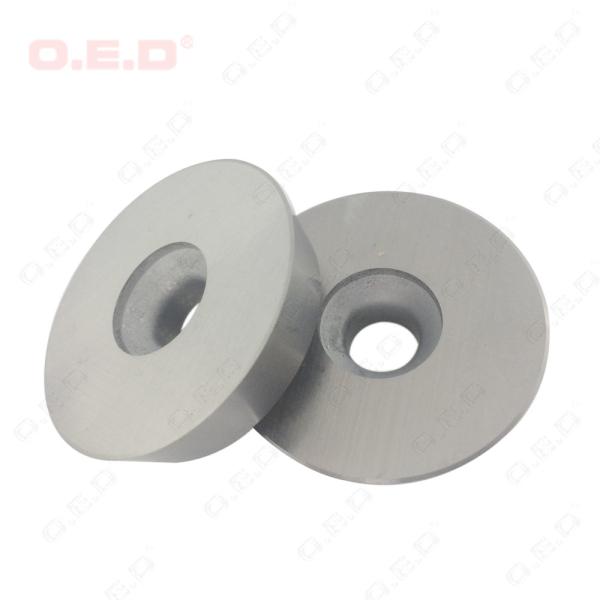

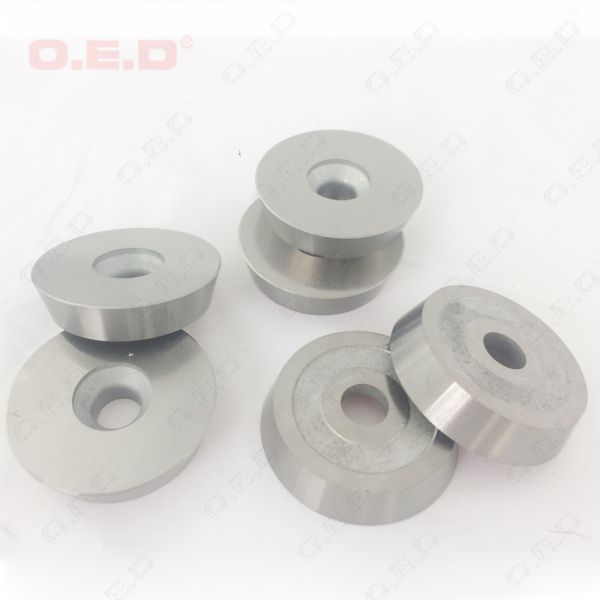

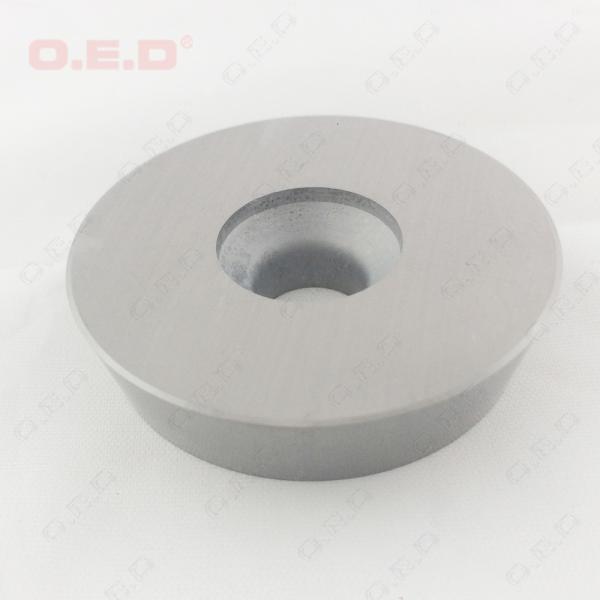

Customized carbide round milling cutter

This cemented carbide milling cutter is a special milling cutter for processing aluminum materials. Used for special cutter heads, it can greatly improve aluminum processing efficiency and save downtime losses caused by equipment maintenance.

Diameter 60mm
Inner hole 15mm
Thickness 15mm
Roundness 0.01
Concentricity 0.01
Finish Ra 0.4

K20 Round Carbide Milling Inserts For Processing Aluminum MaterialsK20 Round Carbide Milling Inserts For Processing Aluminum Materials


Recommended grades for metal working

Application
Code		 Chemical Composition Physical Properties
of powder		 Physical and mechanical properties
and mirco structure as stintered		 Application recommended
Co Tic/
TacNbc		 WC Hall Flow Apparent
density		 Density Hardness Transverse
rupture
strength		 Coercivity Magnetic
saturation		 Porosity
s/25cm3 g/cm3 g/cm3 HV 30 N/mm2 KA/m %
P10 9.5 35 55.5 35 2.52 10.3 1525-1675 ≥1130 9.2-11.5 8.3-9.5 A02 B00 For machining steel and cast steel
P20 8.2 14 77.8 32 2.83 11.52 1560-1700 ≥1400 12.0-15.5 7.5-8.2 A02 B00 For machining long-chip
steel, cast steel and forgeable cast iron
P25 9.5 21.9 68.6 35 2.5 11.42 1400-1550 ≥1700 8.0-10.4 8.5-9.5 A02 B00
P30 9.3 6.3 84.4 32 3.14 13.02 1370-1560 ≥1750 9.5-12.5 8.6-9.2 A02 B00
10 20 70 33 3.08 12.86 1425-1575 ≥1600 13.7-15.5 8.1-9.1 A02 B00
P35 11 12 77 35 3.24 13.12 1320-1460 ≥1650 10.7-13.1 9.1-10.1 A02 B00 For machining steel and
cast steel parts with different pores including sand holes.
P40 12 18.93 69.07 35 2.88 12.75 ≥1400 ≥2250 15.0-19.0 10.0-11.2 A04 B02

K20 Round Carbide Milling Inserts For Processing Aluminum Materials

K20 Round Carbide Milling Inserts For Processing Aluminum Materials

K20 Round Carbide Milling Inserts For Processing Aluminum Materials

K20 Round Carbide Milling Inserts For Processing Aluminum Materials
