92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades
92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades
92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades
92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades
Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Application :
Paper slitteing knives
Hardness :
91.9-92HRA
TRS :
2500--3000
Density :
14.5
ISO Grade :
K30
OD :
350mm
ID :
50mm
Thickness :
5mm
Parallelism :
0.05
Roughness :
Ra 0.8
Cutting angle :
7 degree
Description

Carbide Large Diameter Rotary Shear Blades Tungsten Carbide Slitter Blades Disc Cutters

Application

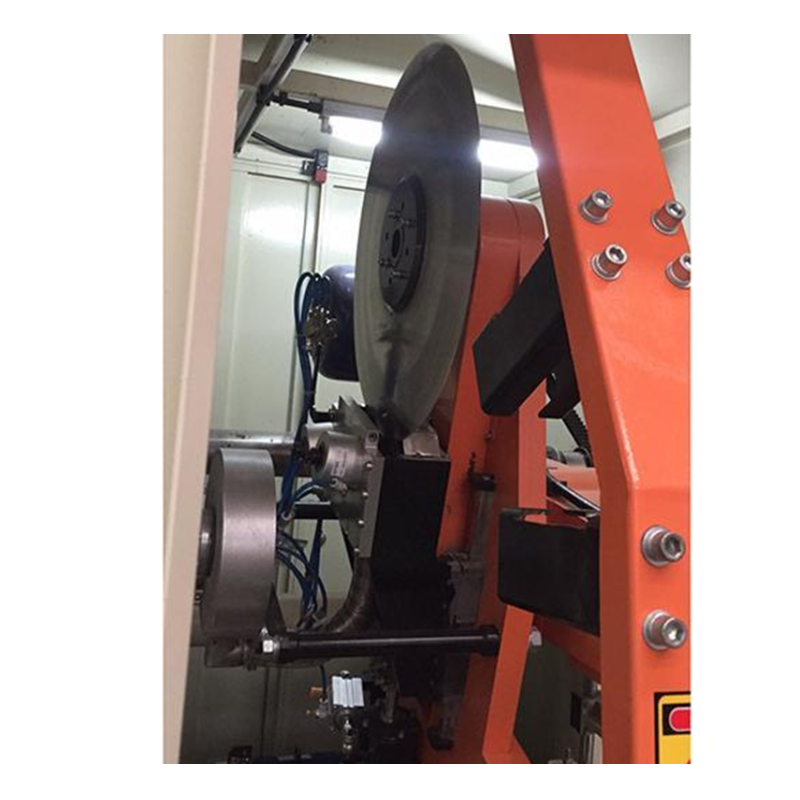

 The large diameter rotary shear blade is mainly used on tissue paper machines to cut rolled toilet paper, rolled embossed paper etc. During the cutting, the Friction between blade and paper generates heat, thus the blade edge is required to be sharp and wear-resistant, and the radiaL runout oF blade be small.

92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades

Standard circular specifications

Specifications
Specifications Outer diameter Inner diameter B Width b Blade width Large- Medium diameter Small Medium diameter C Key width H Key depth
Ø70×Ø45×10×8 70 45 10 8 67 59 10 49
Ø70×Ø45×4×2.5 70 45 4 2.5 67 59 10 49
Ø80×Ø50×5×3.5 80 50 5 3.5 77 65 10 53.8
Ø80×Ø50×10×8 80 50 10 8 77 65 10 53.8
Ø80×Ø60×10×8 80 60 10 8 77 69 　 　
Ø70×Ø45×6×4 70 45 6 4 67 59 　 　
Ø108×Ø80×10×8 108 80 10 8 105 90 　 　
Ø108×Ø80×20×18 108 80 20 18 104 90 　 　

Recommened grades of slitter blades for metal working:

Grade
 Density Strength Hardness Application
YS2T 14.5 ≥2300 ≥91.5 Qualified for low speed rough machining,milling titanuium alloy and refractory alloy,especially for cut-off tool and silk prick.
YG6X 14.9 ≥1860 ≥92.0 Qualified for machining of chilled cast iron,alloy cast iron,refractory steel and alloy steel.Also Qualified for the machining of common cast iron.
YG8 14.8 ≥2400 ≥89.5 Wear resistance and bending strength,suitable for disc cutters in electronics industry.
YL10.2 14.5 ≥3400 ≥91.7 Fine grain alloy, good wear resistance. Used for processing hard wood. Veneer board, PCB, PVC and metals.

ISO Code Grade Binder Grain size Density
g/cm3		 Hardness
HRA		 TRS
N/mm2		 Application
K10 YF06 6 fine 14.9 92 2000 Fine grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel.
K20 YG8 8 medium 14.7 89.5 2500 High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.

92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades

92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades

92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades

92HRA Carbide Slitter Blades , Large Diameter 350mm Rotary Shear Blades
