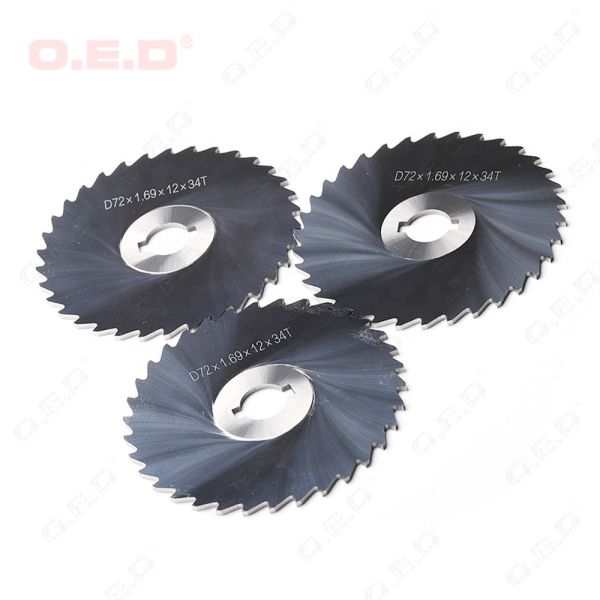

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades
Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades
Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades
Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades
Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Application :
Gray Cast Iron Cutter
Hardness :
90.5 HRA
TRS :
3000
Density :
14.8
ISO Grade :
K30
OD :
72mm
ID :
12mm
Thickness :
1.69mm
Parallelism :
0.05
Roughness :
Ra 0.4
Teeth :
34
Description

Solid Carbide Saw Slitter Blades Gray Cast Iron Cutter Carbide Knifes Thin Blades​

Our Advantage:

  • More than 300 circular saw blades in stock
  • Very smooth runing
  • Diameter from 15mm to 250mm
  • Quality assurance

Application

Our solid carbide circular saw blades are suitable for steel > 1000 N, stainless steel, gray cast iron, aluminum, copper, copper alloy, zinc alloy, inconel, titanium, plastic and GRP/CRP. Our DIN solid carbide circular saw blades are available in diameters ranging from 15 mm to 200 mm.

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades

Specifications Type of teeth OD ID T Number of teeth(Z)
CSB-O8I3T Z A/B 8 3 0.2-2 20/24/32
CSB-O12I5T Z A/B 12 5 0.2-2 20/24/32/40
CSB-O16I5T Z A/B 16 5 0.2-2 20/24/32/40/48
CSB-O20I5T Z A/B 20 5 0.2-2 24/32/48/64
CSB-O25I8T Z A/B 25 8 0.2-3 24/32/48/64/80
CSB-O32I8T Z A/B 32 8 0.2-3 40/48/64/80
CSB-O40I8T Z A/B 40 8 0.2-3 40/64/80/100
CSB-O40I10T Z A/B 40 10 0.2-4 40/64/80/100
CSB-O50I12.7T Z A/B 50 12.7 0.2-4 40/64/80/100
CSB-O50I13T Z A/B 50 13 0.2-5 40/64/80/100
CSB-O60I12.7T Z A/B 60 12.7 0.2-5 40/64/80/100
CSB-O60I22T Z A/B 60 22 0.2-5 40/64/80/100
CSB-O60I25.4T Z A/B 60 25.4 0.2-2 40/64/80/100
CSB-O70I12.7T Z A/B 70 12.7 0.2-2 40/64/72/90/100
CSB-O70I22T Z A/B 70 22 0.2-2 40/64/72/90/100
CSB-O70I25.4T Z A/B 70 25.4 0.2-2 40/64/72/90/100
CSB-O75I22T Z A/B 75 22 0.2-2 64/72/90/100
CSB-O75I25.4T Z A/B 75 25.4 0.2-3 64/72/90/100
CSB-O80I22T Z A/B 80 22 0.2-3 64/72/100/120
CSB-O80I25.4T Z A/B 80 25.4 0.2-3 64/72/100/120
CSB-O90I22T Z A/B 90 22 0.2-4 72/90/100/120
CSB-O90I25.4T Z A/B 90 25.4 0.2-4 72/90/100/120
CSB-O100I22T Z A/B 100 22 0.2-5 90/100/120/160
CSB-O100I25.4T Z A/B 100 25.4 0.2-5 90/100/120/160
CSB-O100I32T Z A/B 100 32 0.2-5 90/100/120/160
CSB-O110I22T Z A/B 110 22 0.2-5 100/120/140/160
CSB-O110I25.4T Z A/B 110 25.4 0.2-5 100/120/140/160
CSB-O110I32T Z A/B 110 32 0.2-5 100/120/140/160

Precision ground blank or raw sintered blank are avaliable.

Recomented carbide grades for metal working are as follows:

ISO Code Grade Binder Grain size Density
g/cm3		 Hardness
HRA		 TRS
N/mm2		 Application
K10 YF06 6 fine 14.9 92 2000 Fine grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel.
K20 YG8 8 medium 14.7 89.5 2500 High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades

Ra 0.4 Solid Carbide Slitter Blades , 90.5 HRA Carbide Slitting Saw Blades
