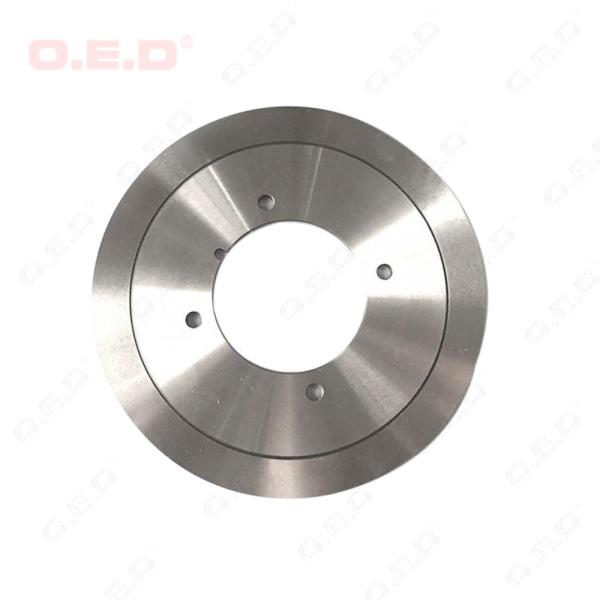

Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS
Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS
Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS
Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS
Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Application :
Paper slitteing knives
Hardness :
91.9-92HRA
TRS :
2500--3000
Density :
14.5
ISO Grade :
K30
OD :
350mm
ID :
50mm
Thickness :
5mm
Parallelism :
0.05
Roughness :
Ra 0.8
Cutting angle :
7 degree
Description

Slitter Rewinder Blades Carbide Top Bottom Slitter Blades For Cutting Paper Metal​

The slitter rewinder blades are mainly applied to rewinders For slitting of tissue paper. The quality of rewinder blades directly affect the production quality and efficiency. OED developed circular tungsten carbide and inlay carbide rewinder blades to improve customers’ use effect and blades’ service life.


As For the selection of cutting tool materials, we can make recommendation according to customers’ cutting materials, so as to ensure that customers can use the appropriate knives during production.

The common specifications of blades may be not suitable for your machines, and if needed, please send us the samples or drawings. we will manufacture strictly in accordance with the design precision.

Standard circular specifications

OD ID T
180 70 3
190 75 3
200 65 3
190 80 3
200 70 5
200 90 4
200 150 10
250 188 15
250 188 20
250 140 30

Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS

Recommened grades of slitter blades for metal working:

Grade
 Density Strength Hardness Application
YS2T 14.5 ≥2300 ≥91.5 Qualified for low speed rough machining,milling titanuium alloy and refractory alloy,especially for cut-off tool and silk prick.
YG6X 14.9 ≥1860 ≥92.0 Qualified for machining of chilled cast iron,alloy cast iron,refractory steel and alloy steel.Also Qualified for the machining of common cast iron.
YG8 14.8 ≥2400 ≥89.5 Wear resistance and bending strength,suitable for disc cutters in electronics industry.
YL10.2 14.5 ≥3400 ≥91.7 Fine grain alloy, good wear resistance. Used for processing hard wood. Veneer board, PCB, PVC and metals.

ISO Code Grade Binder Grain size Density
g/cm3		 Hardness
HRA		 TRS
N/mm2		 Application
K10 YF06 6 fine 14.9 92 2000 Fine grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel.
K20 YG8 8 medium 14.7 89.5 2500 High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.

Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS

Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS

Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS

Slitter Rewinder Carbide Cutting Blades Top Bottom 2500--3000 TRS
