HRA 92.5 Carbide Metal Cutting Tools , K05 Carbide Carving Tools
HRA 92.5 Carbide Metal Cutting Tools , K05 Carbide Carving Tools
HRA 92.5 Carbide Metal Cutting Tools , K05 Carbide Carving Tools
HRA 92.5 Carbide Metal Cutting Tools , K05 Carbide Carving Tools
Specifications
Brand Name :
OED/OEM is available
Model Number :
Customized
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box
Material :
Tungsten carbide
Type :
Curving
Application :
For wooden and metal curving
ISO Grade :
K05
TRS :
2200
Hardness :
HRA 92.5
Density :
15
Length :
5-60
Description

Carbide K05 Wooden Curving Tools Metal Curving Working K40 Carbide Cutting Plate

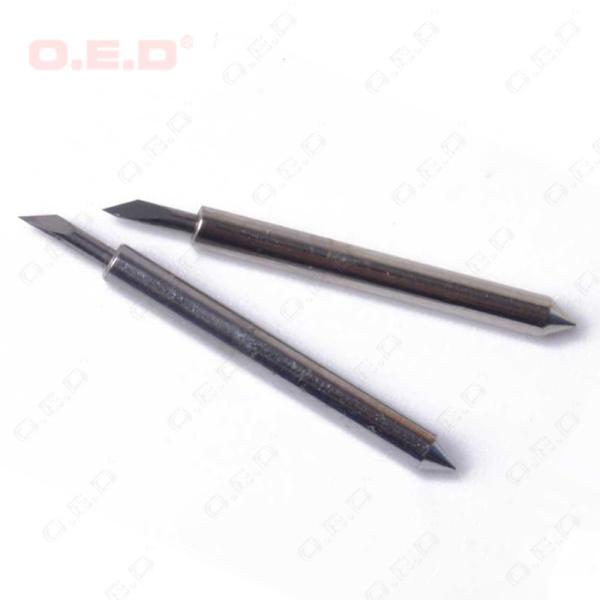

Carbide curving pin

Diameter 6mm

Length 55mm

Application: for wooden curving.


Recommended grades for Metal working:

Application
Code		 Chemical Composition Physical Properties
of powder		 Physical and mechanical properties
and mirco structure as stintered		 Application recommended
Co Tic/
TacNbc		 WC Hall Flow Apparent
density		 Density Hardness Transverse
rupture
strength		 Coercivity Magnetic
saturation		 Porosity
s/25cm3 g/cm3 g/cm3 HV 30 N/mm2 KA/m % 　
K05 6 0.3 93.7 35 3.45 14.94 1650-1750 ≥1560 19.5-24.5 5.1-5.9 A02 B02 For machining super-hard
grey cast steel, hardening steel, chilled iron, high
silicon-aluminum alloy,high wear-resistant plastic,
hard paper plate and ceramics.
6 2 92 35 2.85 14.95 1350-1500 ≥1600 21.5-26.5 4.9-5.9 A02 B02
K10-K15 6 0.4 93.6 35 3.45 14.91 1665-1835 ≥123 19.5-24.5 5.2-6.2 A02 B02 For machining cast iron with hardness higher than
200HB, short-chip forgeable cast iron, silicon-aluminum
alloy, copper alloy, plastic, glass, ceramics and stones.
K20 6 0.4 93.6 35 3.25 14.9 1600-1700 ≥1670 16.3-19.2 5.2-6.0 A02 B02 For machining grey cast iron with hardness lower than
200HB, non-ferrous metal, copper, brass and aluminum
7.8 1 91.2 35 3.35 14.61 ≥1400 ≥2000 15.0-18.0 6.6-7.8 A02 B02
K30 6 2 92 35 3.45 14.8 1450-1600 ≥1320 13.5-15.1 5.3-6.0 A02 B00 For machining low-hardness grey cast iron, low-strength
steel and compact wood.
