K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
Specifications
Brand Name :
OED/OEM is available
Model Number :
550×20×8mm
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
2pcs
Price :
$50-$300
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000pcs per week
Delivery Time :
1 week
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
Application :
Stationary knife
Hardness :
92HRA
TRS :
2600
Density :
14.8
ISO Grade :
K20
Length :
550mm +0.1
Width :
20mm+0.005
Thickness :
8mm +0.005
Parallelism :
0.01
Roughness :
Ra 0.2
Thread :
M8
Description

K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools​

Description:

Length 100mm

Width 16mm

Thickness 0.26mm

Thread M8 X 9

Roughness Ra 0.2 for all surfaces

Hardness HRA 92

Application: For metal cutting

All ground and polished surface, tolerance has been controlled to 0.005mm, and parallelism is 0.01mm.

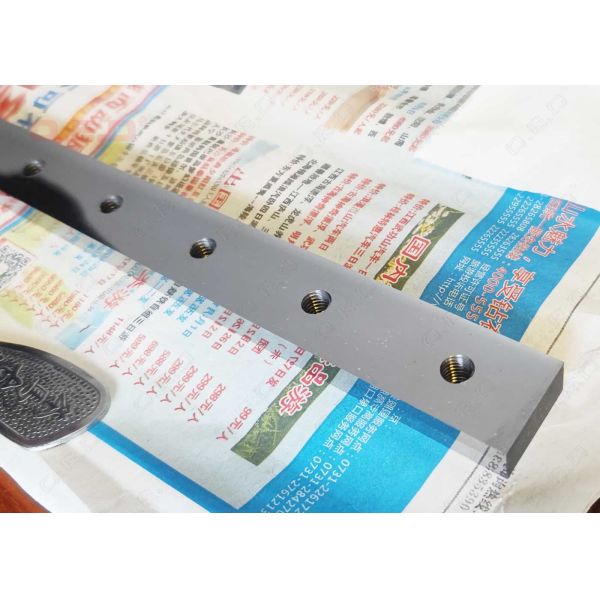

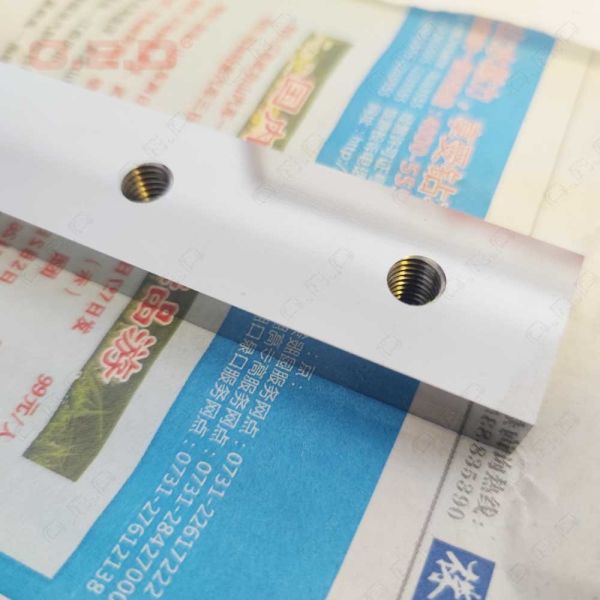

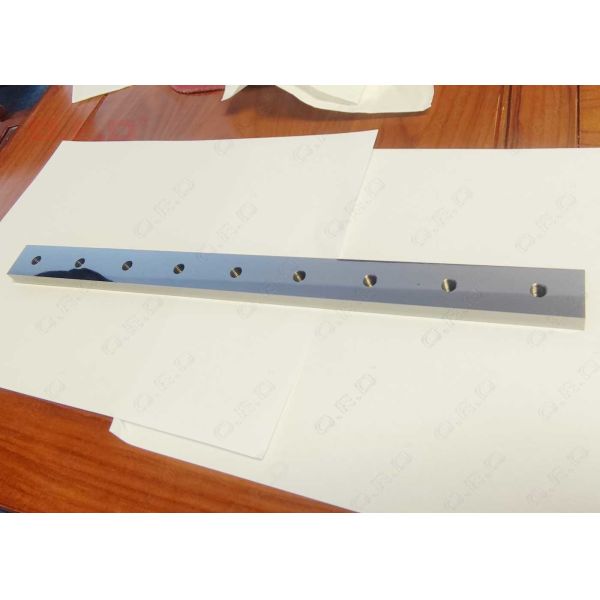

Photos:

K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting ToolsK20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting ToolsK20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting ToolsK20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools

Stationary Carbide Knives length can be 50mm up to 1200mm.

Welcome to contacts for special sizes.

Recommended grades of slitter blades for metalworking:

Grade
 Density Strength Hardness Application
YS2T 14.5 ≥2300 ≥91.5 Qualified for low-speed rough machining, milling titanium alloy, and refractory alloy, especially for cut-off tool and silk prick.
YG6X 14.9 ≥1860 ≥92.0 Qualified for machining of chilled cast iron, alloy cast iron, refractory steel, and alloy steel. Also Qualified for the machining of common cast iron.
YG8 14.8 ≥2400 ≥89.5 Wear resistance and bending strength, suitable for disc cutters in the electronics industry.
YL10.2 14.5 ≥3400 ≥91.7 Fine-grain alloy, good wear resistance. Used for processing hardwood. Veneer board, PCB, PVC, and metals.

ISO Code Grade Binder Grain size Density
g/cm3		 Hardness
HRA		 TRS
N/mm2		 Application
K10 YF06 6 fine 14.9 92 2000 Fine-grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel.
K20 YG8 8 medium 14.7 89.5 2500 High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals, and alloys as wee as non-metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel, and high manganese steel, etc.

K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools

K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools

K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools

K20 Stationary Carbide Knife 550mm Length Precision Ground M8 Thread Cutting Tools
