Specifications
Packaging Details :
PLYWOOD BOX
MOQ :
≥1000 $
Supply Ability :
5000 SET/MONTH
Warranty :
1year
Longest lifespan :
60000 hours
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Delivery Time :
4 DAYS-20 DAYS
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Payment Terms :
T/T
Cam material :
Default 42CrMoAl，Customizable
Price :
200 $/SET~4500 $/SET
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Hardness :
50HRC~72HRC ，Customizable
Place of Origin :
CHINA
Brand Name :
HONEPAN
Certification :
ISO9001
Dimensions :
Customizable
Description
DF Series Fixed Index Cam Indexer / Standard Indexing Drives
DF Series Flange-Type Indexer

Engineered for disc-shaped structures, the DF Series features a flange output with an expansive mounting surface. The faceplate design incorporates a central flange, threaded holes, positioning pins, and superior flatness for exceptional stability and precision.

This series is ideally suited for rotary disc drives and finds extensive application in disc-based machining equipment and automated intermittent transmission modules where reliable performance is critical.

Available Models: 38DF, 45DF, 60DF, 63DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 150DF, 180DF, 200DF, 250DF, 350DF
Configuration Options

The DF Series indexing drives are categorized based on three key parameters to ensure optimal performance for your specific application requirements:

  • Distance between input shaft and output shaft
  • Cabinet dimensions and footprint
  • Load capacity and torque specifications

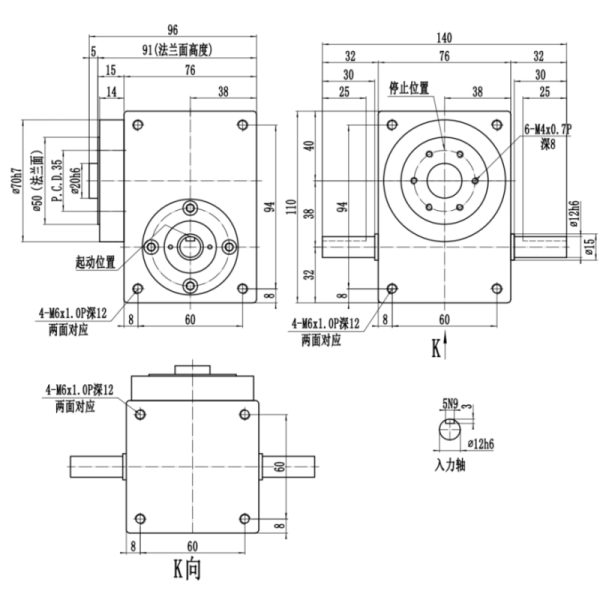

38DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 90
Allowable Axial Load of Output Shaft C2 kgf 100
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 34
Maximum Bending Moment of Input Shaft C4 kgf 34
Maximum Torque of Input Shaft C5 kgf-m 2.4
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6.6×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 5

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

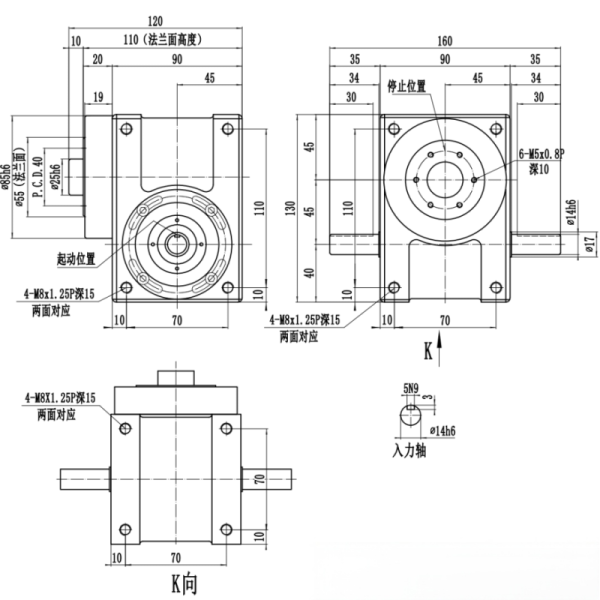

45DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 128
Allowable Axial Load of Output Shaft C2 kgf 138
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 108
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 9

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

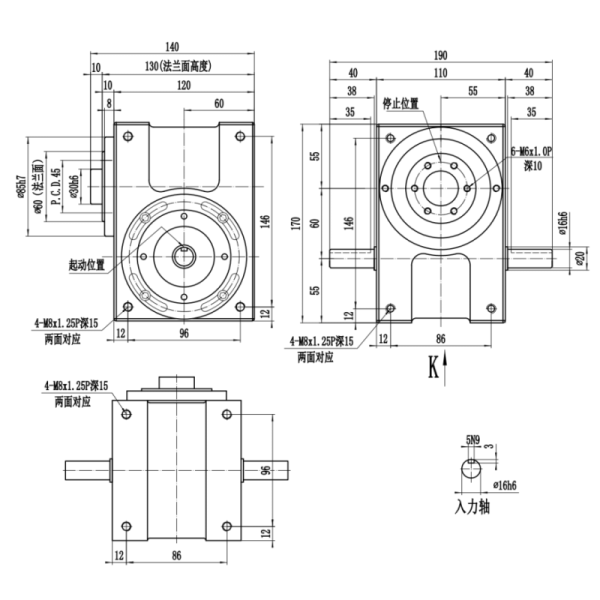

60DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 138
Allowable Axial Load of Output Shaft C2 kgf 140
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 97
Maximum Bending Moment of Input Shaft C4 kgf 148
Maximum Torque of Input Shaft C5 kgf-m 5.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 15

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

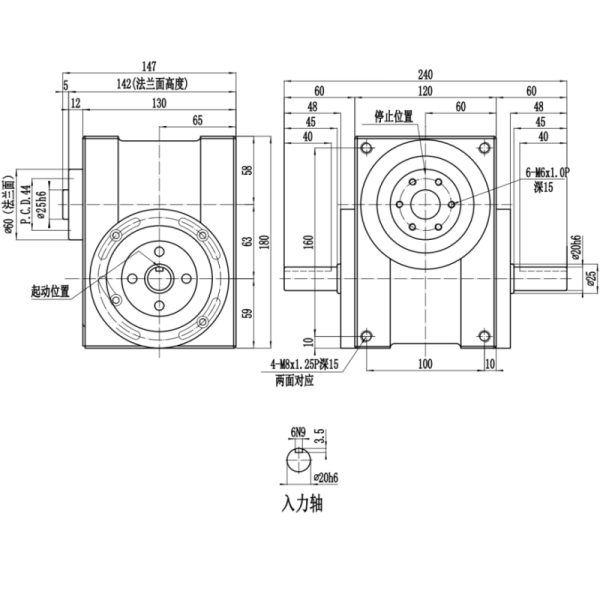

63DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 140
Allowable Axial Load of Output Shaft C2 kgf 142
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 100
Maximum Bending Moment of Input Shaft C4 kgf 150
Maximum Torque of Input Shaft C5 kgf-m 6
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 17

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

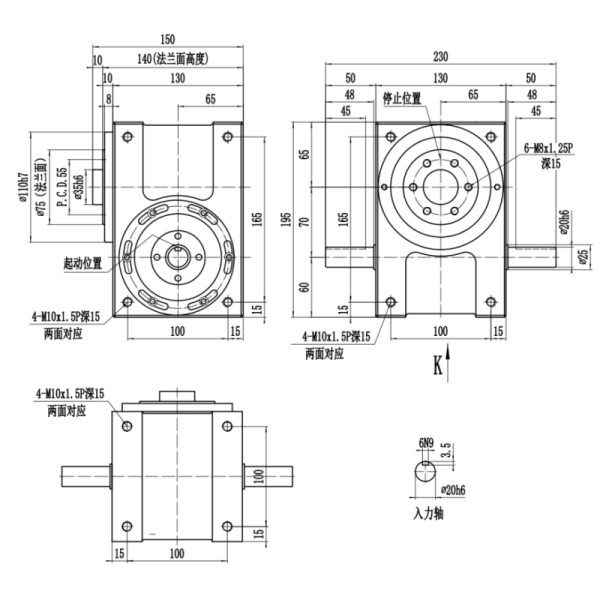

70DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 218
Allowable Axial Load of Output Shaft C2 kgf 298
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 146
Maximum Bending Moment of Input Shaft C4 kgf 105
Maximum Torque of Input Shaft C5 kgf-m 9
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 20

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

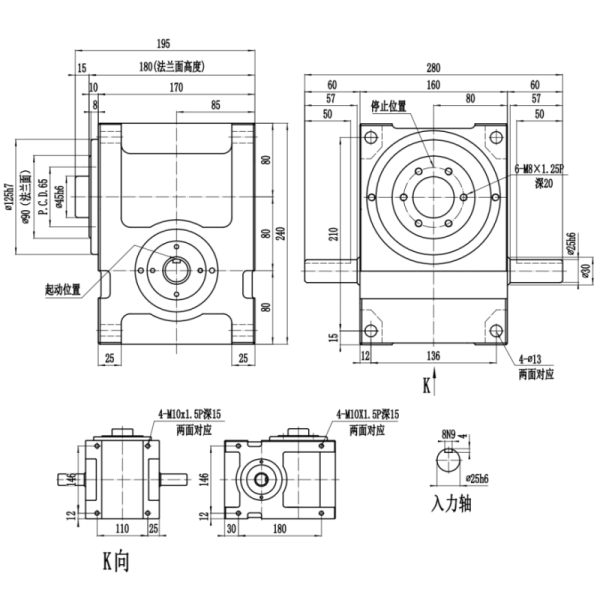

80DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 327
Allowable Axial Load of Output Shaft C2 kgf 417
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 35

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

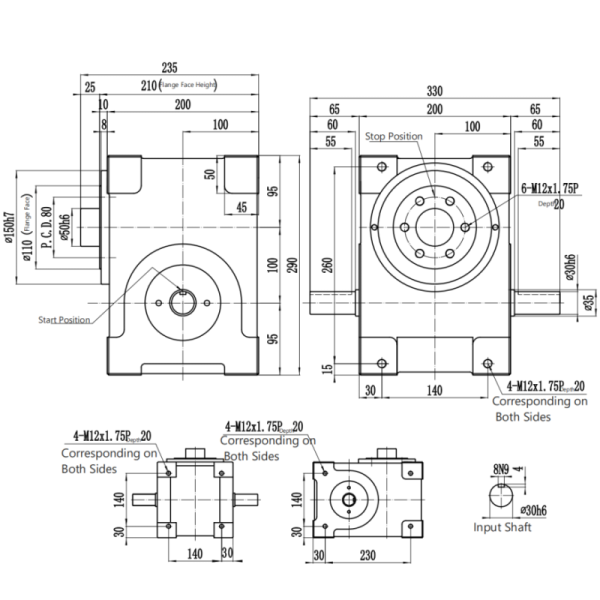

100DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 500
Allowable Axial Load of Output Shaft C2 kgf 650
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 400
Maximum Bending Moment of Input Shaft C4 kgf 395
Maximum Torque of Input Shaft C5 kgf-m 34
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 4×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 55

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

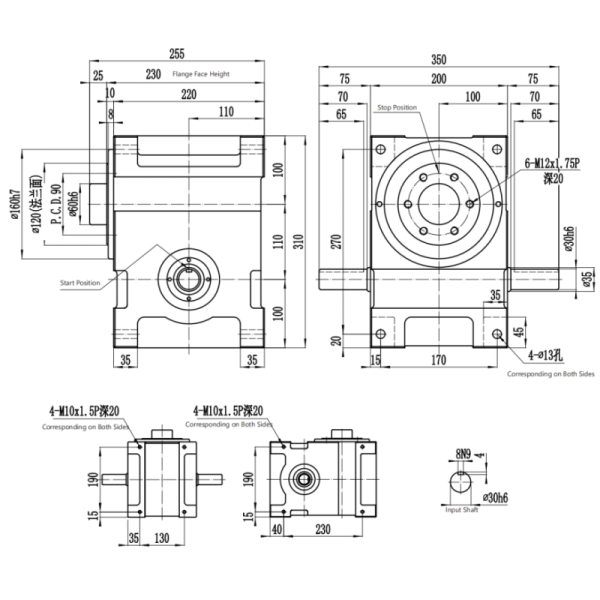

110DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 555
Allowable Axial Load of Output Shaft C2 kgf 695
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 475
Maximum Bending Moment of Input Shaft C4 kgf 410
Maximum Torque of Input Shaft C5 kgf-m 39
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.8×10-2
Positioning Indexing Accuracy sec. ±30
Weight kg 68

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

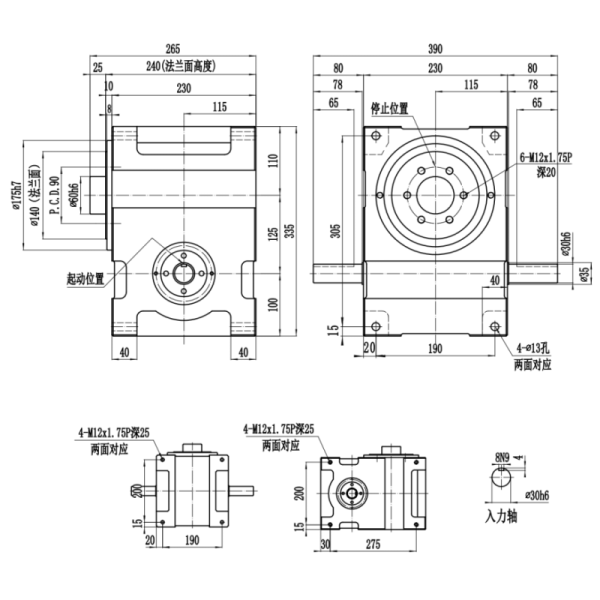

125DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 630
Allowable Axial Load of Output Shaft C2 kgf 850
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 520
Maximum Bending Moment of Input Shaft C4 kgf 560
Maximum Torque of Input Shaft C5 kgf-m 65
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.28
Positioning Indexing Accuracy sec. ±30
Weight kg 78

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

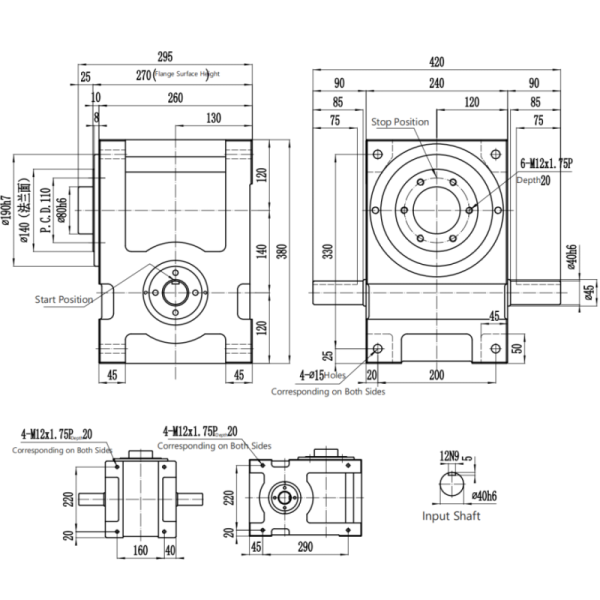

140DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 755
Allowable Axial Load of Output Shaft C2 kgf 995
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 545
Maximum Bending Moment of Input Shaft C4 kgf 705
Maximum Torque of Input Shaft C5 kgf-m 98
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 92

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

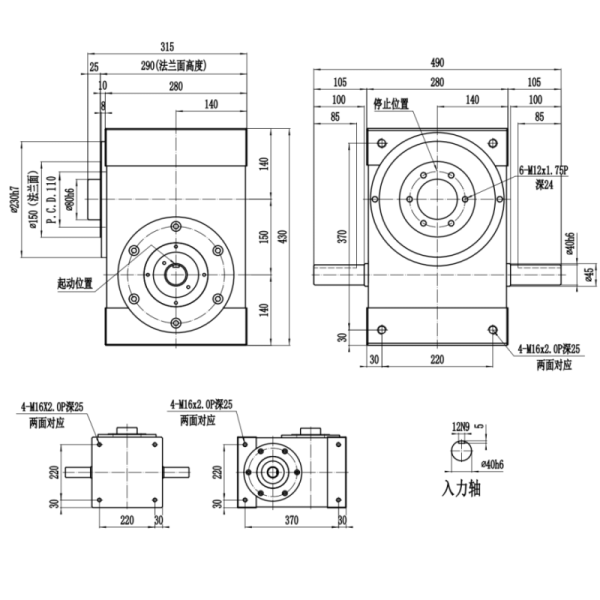

150DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 760
Allowable Axial Load of Output Shaft C2 kgf 1000
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 550
Maximum Bending Moment of Input Shaft C4 kgf 710
Maximum Torque of Input Shaft C5 kgf-m 100
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 94

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

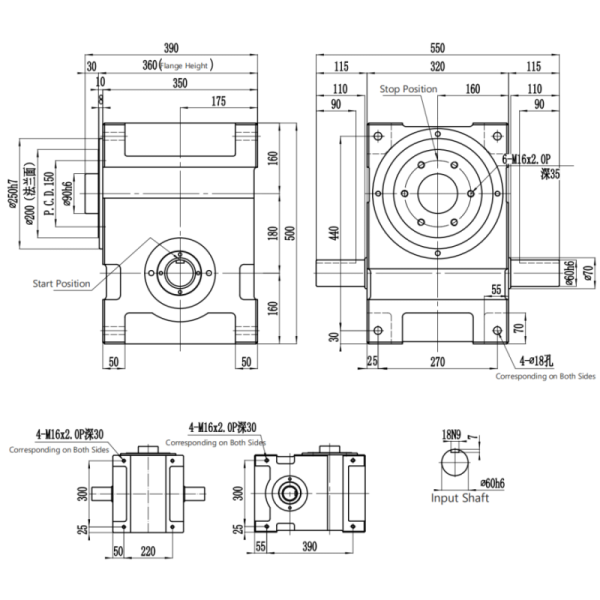

180DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1195
Allowable Axial Load of Output Shaft C2 kgf 1495
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1095
Maximum Bending Moment of Input Shaft C4 kgf 1955
Maximum Torque of Input Shaft C5 kgf-m 336
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 225

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

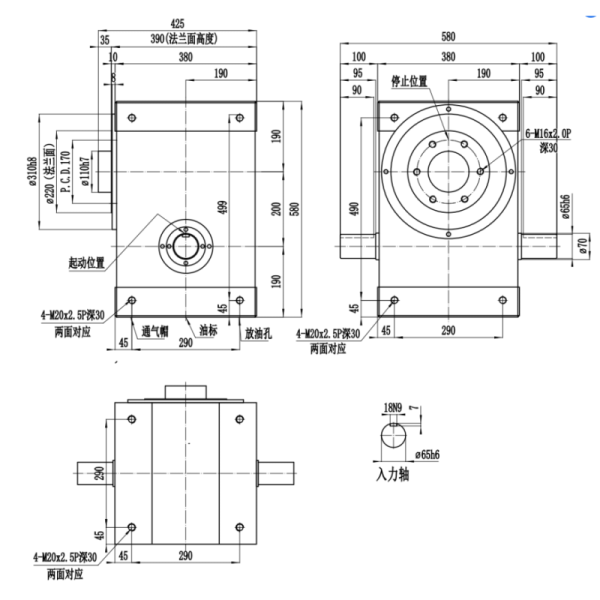

200DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1210
Allowable Axial Load of Output Shaft C2 kgf 1510
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1105
Maximum Bending Moment of Input Shaft C4 kgf 1965
Maximum Torque of Input Shaft C5 kgf-m 341
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 240

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

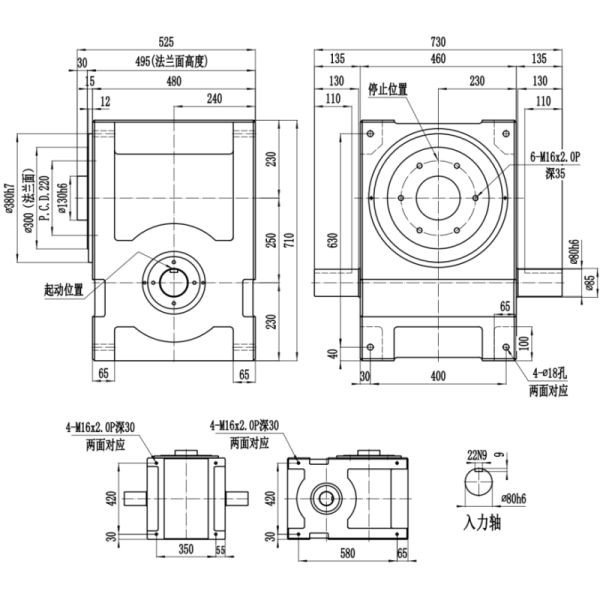

250DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3195
Allowable Axial Load of Output Shaft C2 kgf 4145
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1545
Maximum Bending Moment of Input Shaft C4 kgf 3795
Maximum Torque of Input Shaft C5 kgf-m 775
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.98
Positioning Indexing Accuracy sec. ±30
Weight kg 695

DF Series Fixed Index Cam Indexer / Standard Indexing Drives

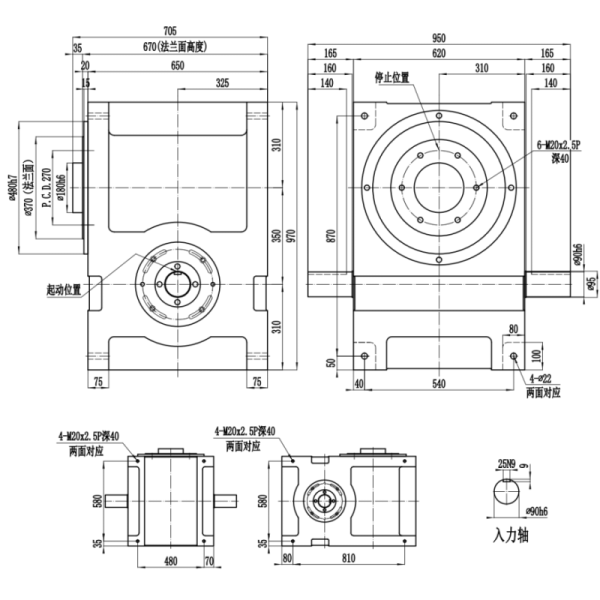

350DF
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 4400
Allowable Axial Load of Output Shaft C2 kgf 5500
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 2020
Maximum Bending Moment of Input Shaft C4 kgf 4400
Maximum Torque of Input Shaft C5 kgf-m 1350
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9.23
Positioning Indexing Accuracy sec. ±30
Weight kg 1400
