Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
Specifications
Supply Ability :
5000 SET/MONTH
Cam material :
Default 42CrMoAl，Customizable
Warranty :
1year
MOQ :
≥1000 $
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Packaging Details :
PLYWOOD BOX
Payment Terms :
T/T
Hardness :
50HRC~72HRC ，Customizable
Delivery Time :
4 DAYS-20 DAYS
Price :
200 $/SET~4500 $/SET
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Longest lifespan :
60000 hours
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Dimensions :
Customizable
Description
DFH Series Fixed Index Cam Indexer / Standard Indexing Drives

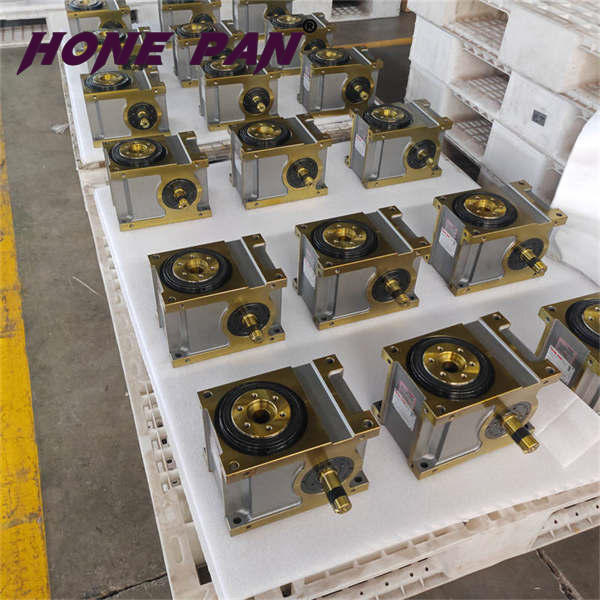

DFH Series Hollow Flange-Type Indexer

The DFH Series builds upon the proven DF Series design with the added benefit of a hollow center configuration. This innovative feature allows cables, pipes, or rods to pass directly through the unit, making it particularly suitable for disc-type machining tools that require integrated wiring or fluid line routing.

Key Features
  • Hollow center design for cable, pipe, and rod routing
  • Based on reliable DF Series indexing technology
  • Ideal for disc-type machining applications
  • Supports integrated wiring and fluid line systems
  • Robust construction for industrial environments
Available Models by Size Classification

The DFH Series is categorized based on the distance between input and output shafts, cabinet dimensions, and load capacity requirements. Available models include:

  • 45DFH
  • 60DFH
  • 70DFH
  • 80DFH
  • 100DFH
  • 110DFH
  • 125DFH
  • 140DFH
  • 150DFH
  • 180DFH
  • 200DFH
  • 250DFH

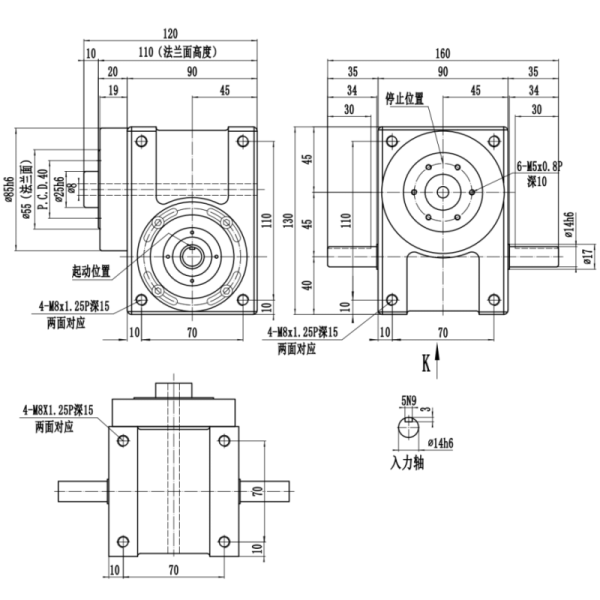

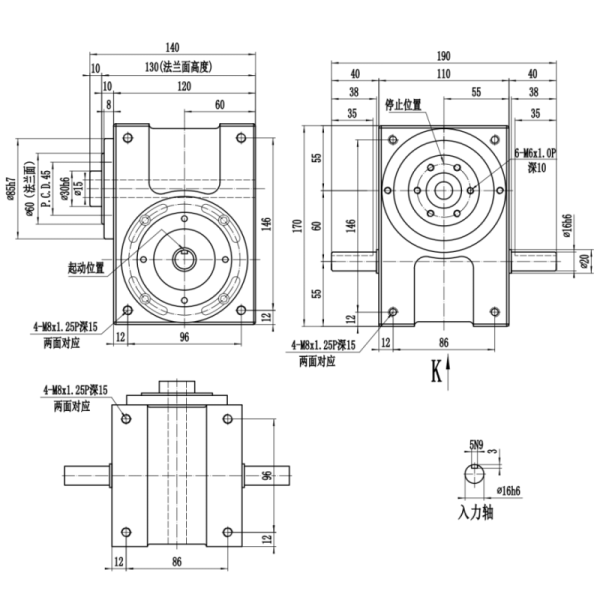

45DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 128
Allowable Axial Load of Output Shaft C2 kgf 138
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 108
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 9

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

60DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 138
Allowable Axial Load of Output Shaft C2 kgf 140
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 97
Maximum Bending Moment of Input Shaft C4 kgf 148
Maximum Torque of Input Shaft C5 kgf-m 5.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 15

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

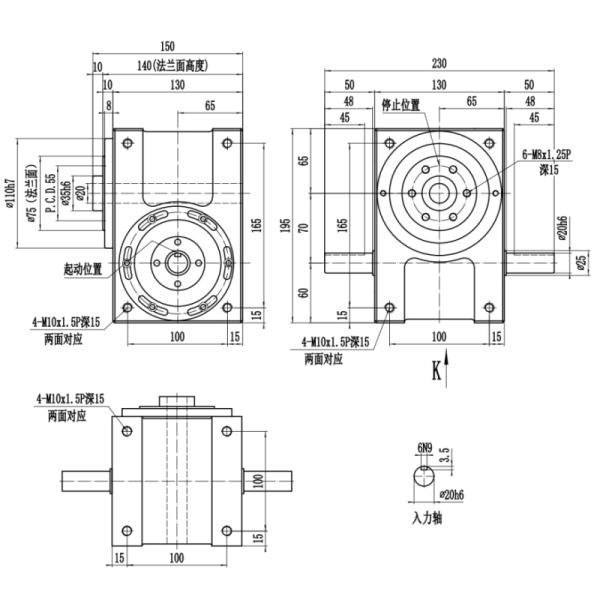

70DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 218
Allowable Axial Load of Output Shaft C2 kgf 298
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 146
Maximum Bending Moment of Input Shaft C4 kgf 105
Maximum Torque of Input Shaft C5 kgf-m 9
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 20

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

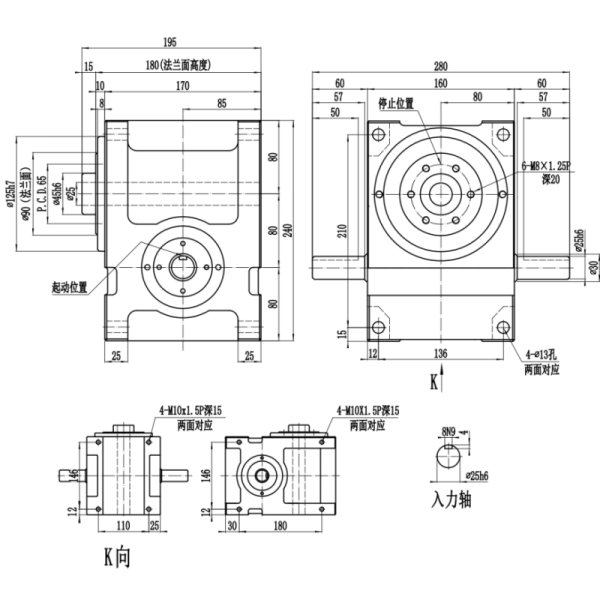

80DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 327
Allowable Axial Load of Output Shaft C2 kgf 417
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 35

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

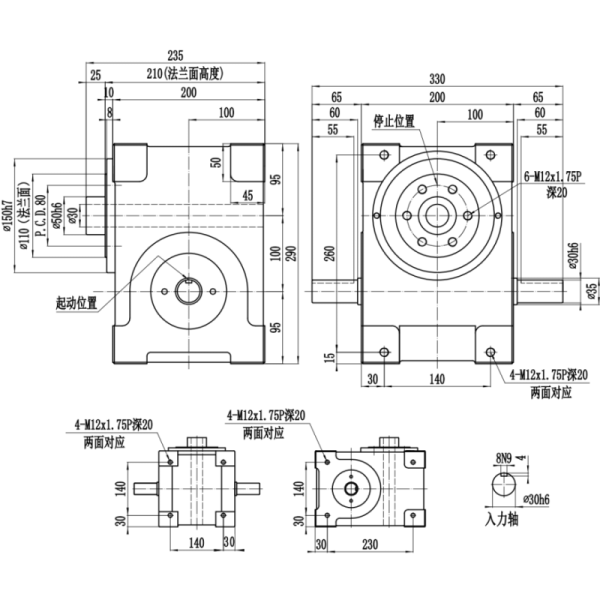

100DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 500
Allowable Axial Load of Output Shaft C2 kgf 650
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 400
Maximum Bending Moment of Input Shaft C4 kgf 395
Maximum Torque of Input Shaft C5 kgf-m 34
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 4×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 55

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

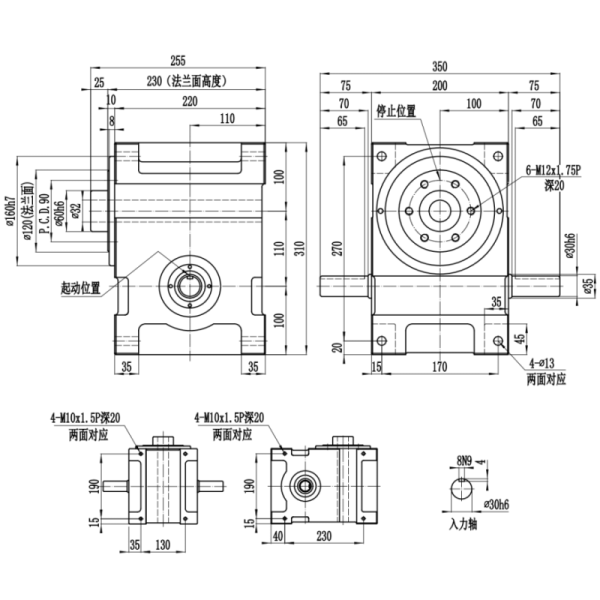

110DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 555
Allowable Axial Load of Output Shaft C2 kgf 695
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 475
Maximum Bending Moment of Input Shaft C4 kgf 410
Maximum Torque of Input Shaft C5 kgf-m 39
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.8×10-2
Positioning Indexing Accuracy sec. ±30
Weight kg 68

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

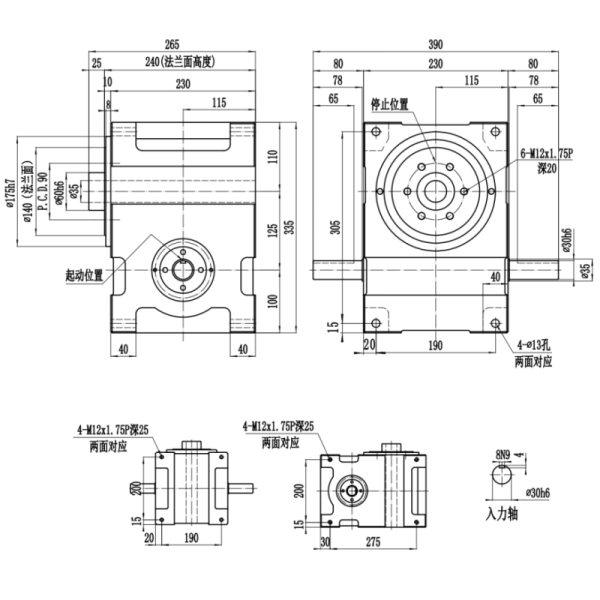

125DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 630
Allowable Axial Load of Output Shaft C2 kgf 850
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 520
Maximum Bending Moment of Input Shaft C4 kgf 560
Maximum Torque of Input Shaft C5 kgf-m 65
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.28
Positioning Indexing Accuracy sec. ±30
Weight kg 78

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

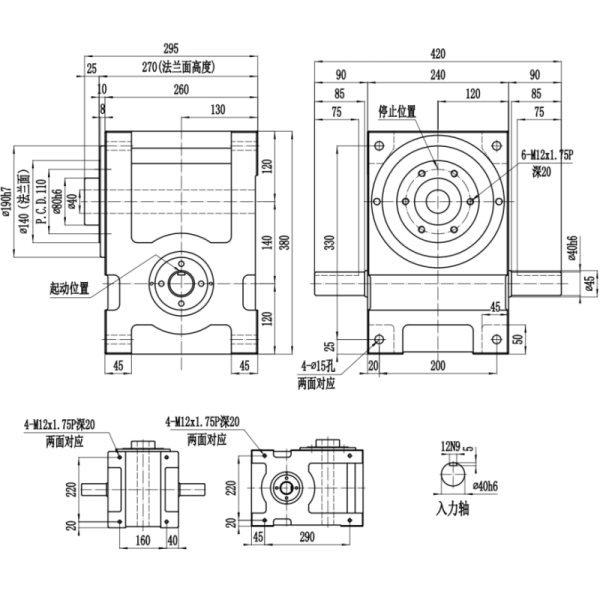

140DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 755
Allowable Axial Load of Output Shaft C2 kgf 995
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 545
Maximum Bending Moment of Input Shaft C4 kgf 705
Maximum Torque of Input Shaft C5 kgf-m 98
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 92

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

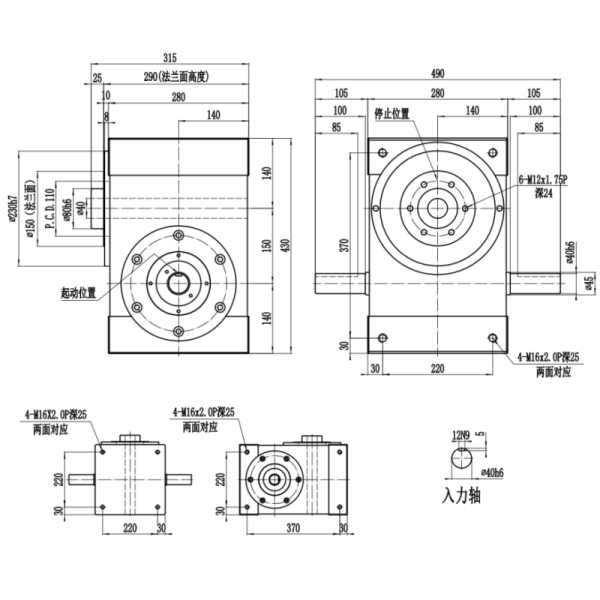

150DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 760
Allowable Axial Load of Output Shaft C2 kgf 1000
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 550
Maximum Bending Moment of Input Shaft C4 kgf 710
Maximum Torque of Input Shaft C5 kgf-m 100
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 94

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

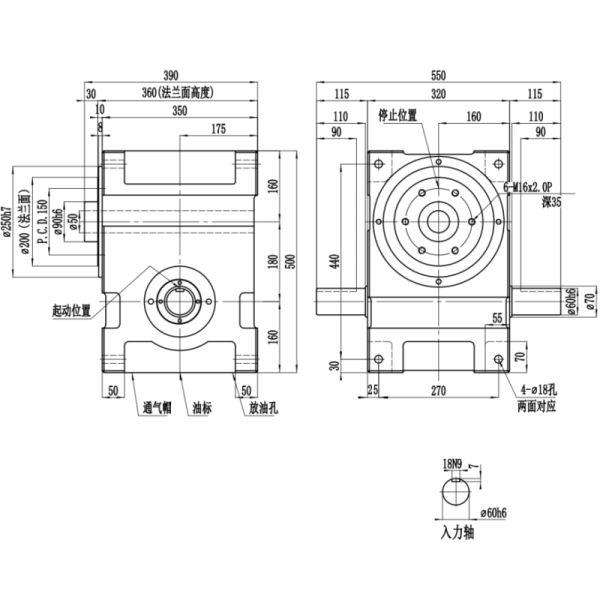

180DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1195
Allowable Axial Load of Output Shaft C2 kgf 1495
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1095
Maximum Bending Moment of Input Shaft C4 kgf 1955
Maximum Torque of Input Shaft C5 kgf-m 336
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 225

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

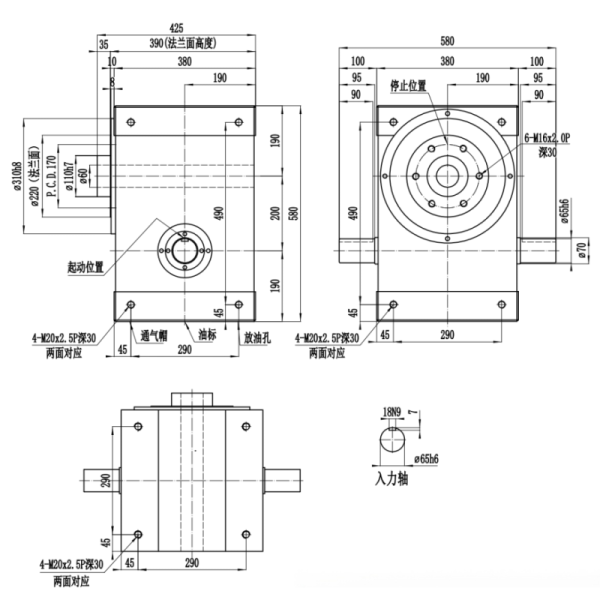

200DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1210
Allowable Axial Load of Output Shaft C2 kgf 1510
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1105
Maximum Bending Moment of Input Shaft C4 kgf 1965
Maximum Torque of Input Shaft C5 kgf-m 341
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 240

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

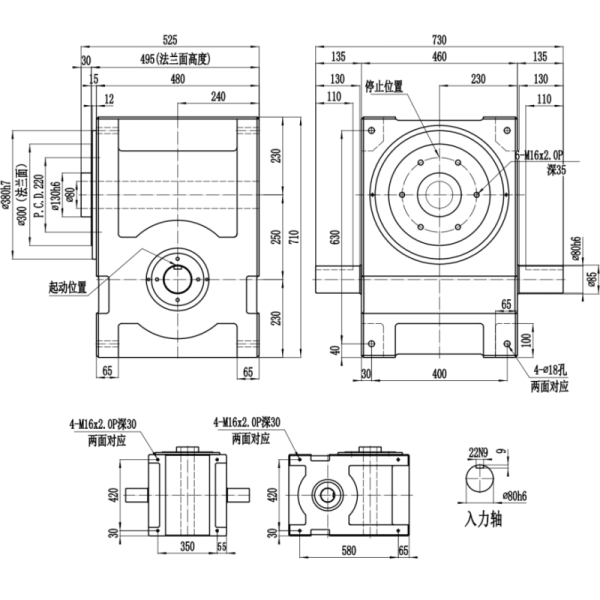

250DFH
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3195
Allowable Axial Load of Output Shaft C2 kgf 4145
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1545
Maximum Bending Moment of Input Shaft C4 kgf 3795
Maximum Torque of Input Shaft C5 kgf-m 775
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.98
Positioning Indexing Accuracy sec. ±30
Weight kg 695

Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools
