High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
Specifications
Delivery Time :
4 DAYS-20 DAYS
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Dimensions :
Customizable
Packaging Details :
PLYWOOD BOX
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Hardness :
50HRC~72HRC ，Customizable
Supply Ability :
5000 SET/MONTH
Longest lifespan :
60000 hours
Price :
200 $/SET~4500 $/SET
MOQ :
≥1000 $
Payment Terms :
T/T
Cam material :
Default 42CrMoAl，Customizable
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Warranty :
1year
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Description

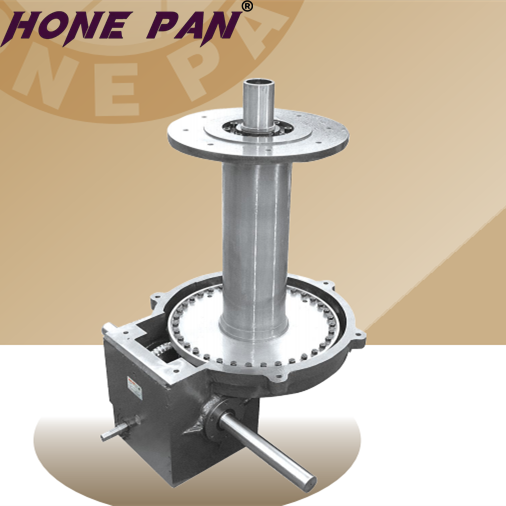

AT Series High-Speed Cam Indexer / Standard Indexing Drives
AT Series Overview

Lighting Equipment Indexer

Engineered with high load capacity and precision indexing capabilities, the AT Series powers rotary conveyor systems specifically designed for electric lighting equipment manufacturing applications.

Key Features
  • High load capacity for demanding industrial applications
  • Precision indexing for accurate positioning
  • Optimized for electric light source equipment manufacturing
Primary Application

Rotary conveyor systems specialized for electric light source equipment production lines.

Available Models

The AT Series is available in multiple configurations based on distance between input and output shafts, cabinet size, and load capacity requirements:

180AT / 250AT

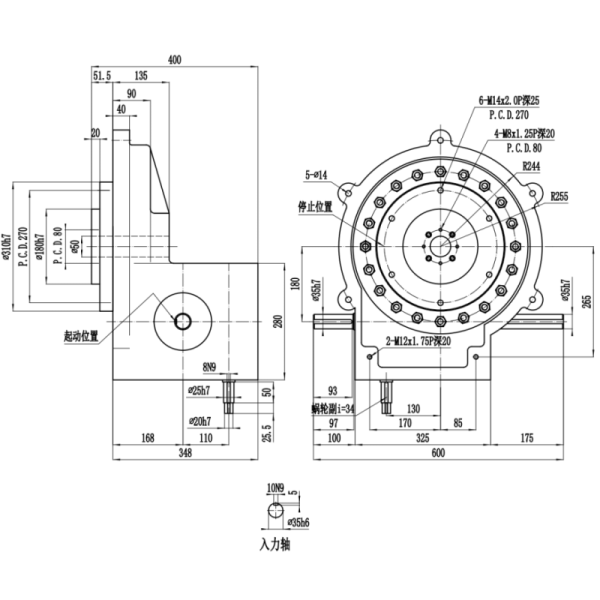

180AT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1400
Allowable Axial Load of Output Shaft C2 kgf 1700
Allowable Radial Load of Input Shaft C3 kgf 1100
Maximum Bending Moment of Input Shaft C4 kgf 1960
Maximum Torque of Input Shaft C5 kgf-m 340
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 220
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing

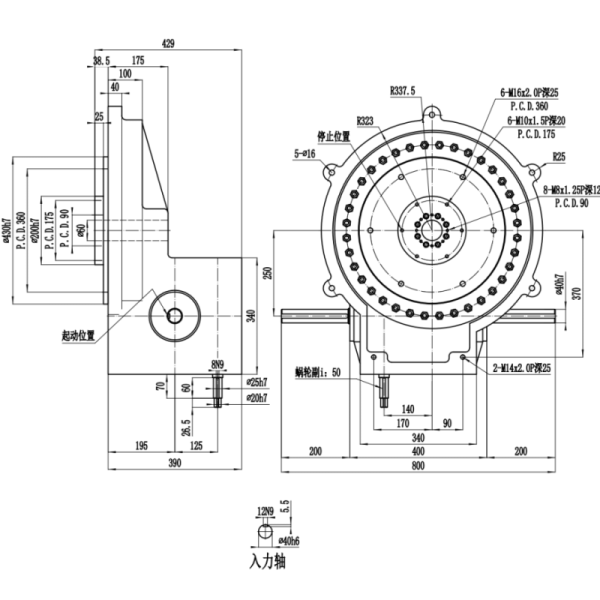

250AT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3400
Allowable Axial Load of Output Shaft C2 kgf 4350
Allowable Radial Load of Input Shaft C3 kgf 1550
Maximum Bending Moment of Input Shaft C4 kgf 3800
Maximum Torque of Input Shaft C5 kgf-m 780
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.98
Positioning Indexing Accuracy sec. ±30
Weight kg 550
High Speed Camco Rotary Indexer AT Series With High Load Capacity And Precision Indexing
