Specifications
Price :
200 $/SET~4500 $/SET
Packaging Details :
PLYWOOD BOX
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Cam material :
Default 42CrMoAl，Customizable
Warranty :
1year
Place of Origin :
CHINA
Brand Name :
HONEPAN
Certification :
ISO9001
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Supply Ability :
5000 SET/MONTH
Payment Terms :
T/T
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Delivery Time :
4 DAYS-20 DAYS
Hardness :
50HRC~72HRC ，Customizable
Longest lifespan :
60000 hours
Dimensions :
Customizable
MOQ :
≥1000 $
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Description

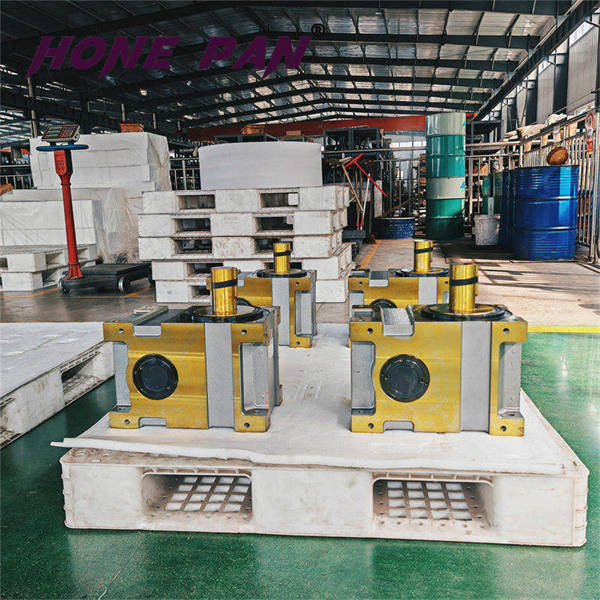

DE Series Fixed Index Cam Indexer / Standard Indexing Drives
DFS Series Shaft Flange-Type Indexer

Building upon the proven DF Series platform, the DFS Series integrates an extended shaft with the flange, creating a unified output design that offers greater flexibility for diverse mounting and drive requirements.

With enhanced rigidity and precision, the DFS Series is widely used in medium-to-large precision equipment demanding high reliability, including medical devices and automated filling systems.

Key Features
  • Unified shaft-flange output design
  • Enhanced rigidity and precision
  • Flexible mounting and drive configurations
  • Ideal for medium-to-large precision equipment
  • High reliability for demanding applications
Typical Applications
  • Medical devices and equipment
  • Automated filling systems
  • Precision manufacturing machinery
  • Industrial automation systems

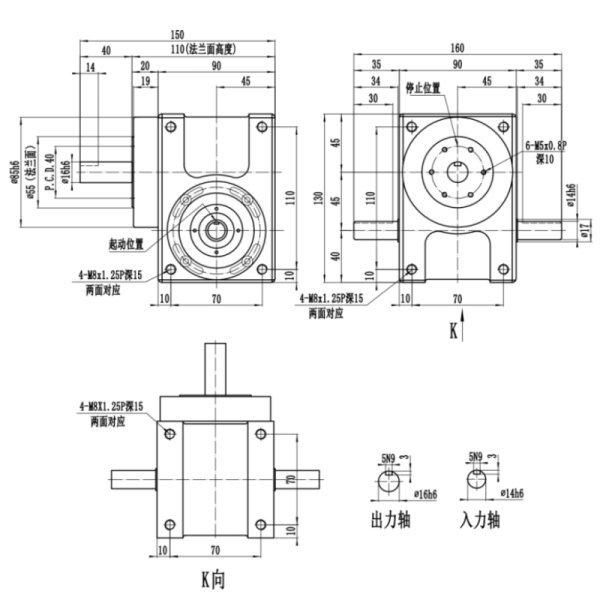

45DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 128
Allowable Axial Load of Output Shaft C2 kgf 138
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 108
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 9

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

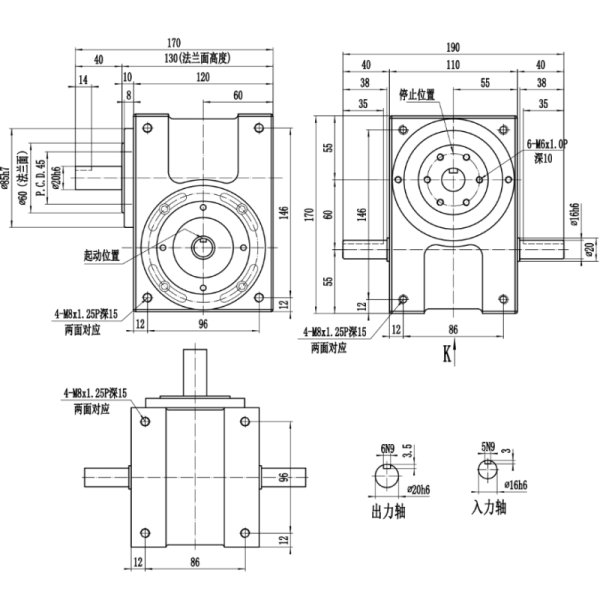

60DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 138
Allowable Axial Load of Output Shaft C2 kgf 140
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 97
Maximum Bending Moment of Input Shaft C4 kgf 148
Maximum Torque of Input Shaft C5 kgf-m 5.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 15

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

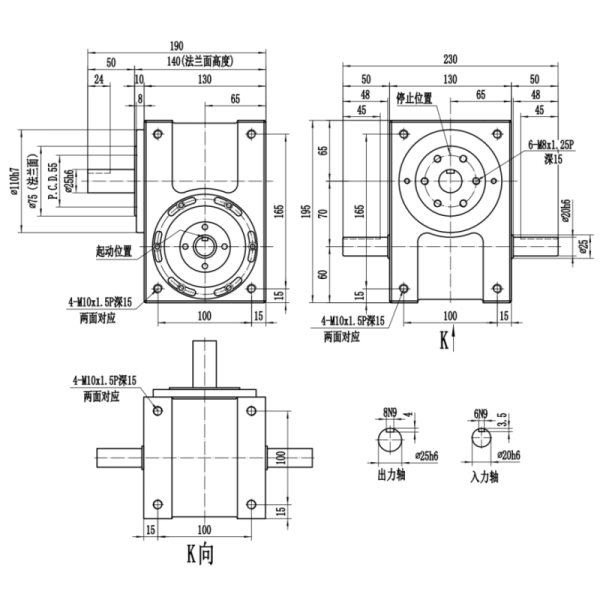

70DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 218
Allowable Axial Load of Output Shaft C2 kgf 298
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 146
Maximum Bending Moment of Input Shaft C4 kgf 105
Maximum Torque of Input Shaft C5 kgf-m 9
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 20

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

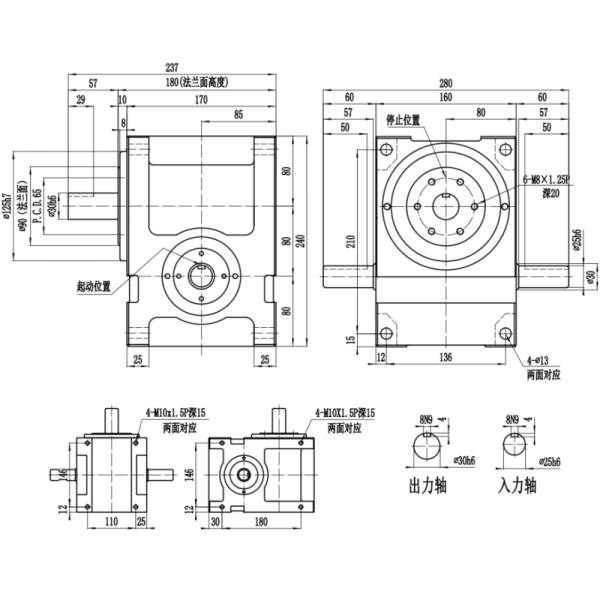

80DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 327
Allowable Axial Load of Output Shaft C2 kgf 417
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 35

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

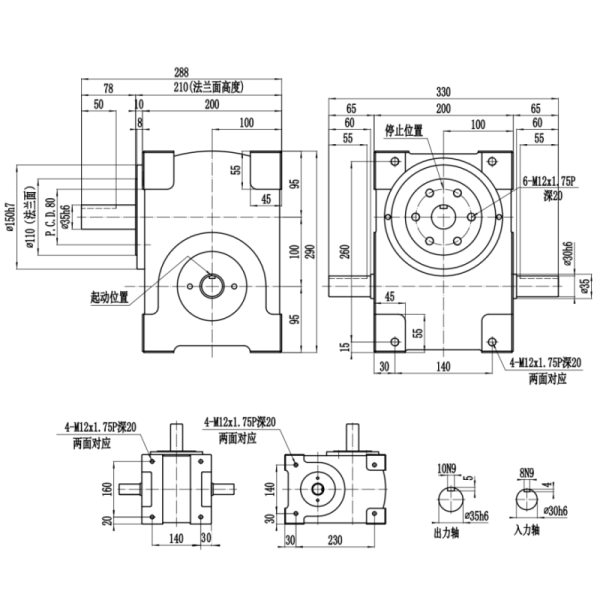

100DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 500
Allowable Axial Load of Output Shaft C2 kgf 650
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 400
Maximum Bending Moment of Input Shaft C4 kgf 395
Maximum Torque of Input Shaft C5 kgf-m 34
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 4×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 55

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

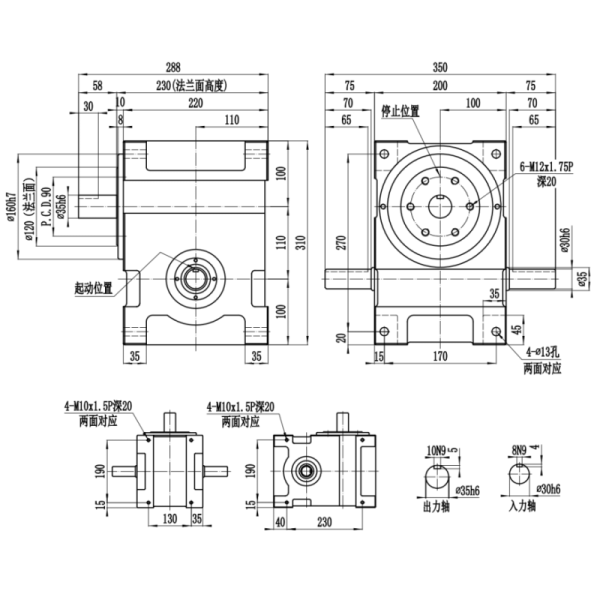

110DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 555
Allowable Axial Load of Output Shaft C2 kgf 695
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 475
Maximum Bending Moment of Input Shaft C4 kgf 410
Maximum Torque of Input Shaft C5 kgf-m 39
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.8×10-2
Positioning Indexing Accuracy sec. ±30
Weight kg 68

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

125DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 630
Allowable Axial Load of Output Shaft C2 kgf 850
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 520
Maximum Bending Moment of Input Shaft C4 kgf 560
Maximum Torque of Input Shaft C5 kgf-m 65
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.28
Positioning Indexing Accuracy sec. ±30
Weight kg 78

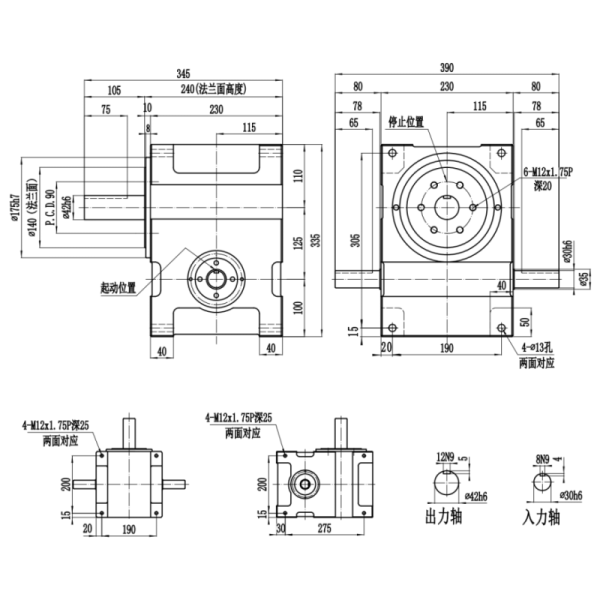

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

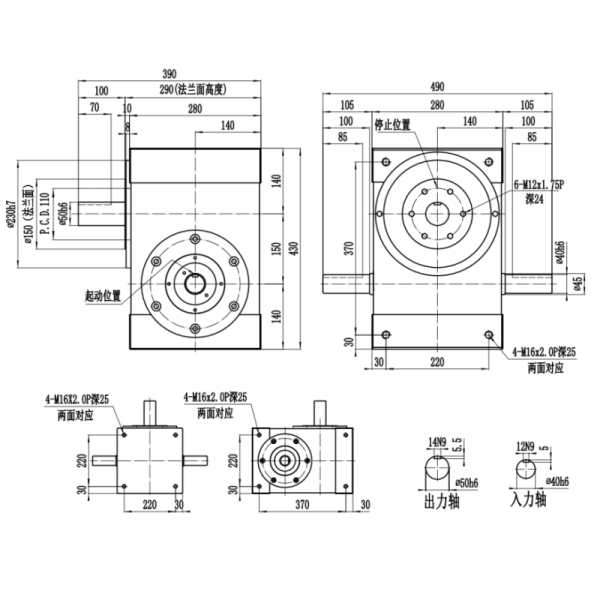

140DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 755
Allowable Axial Load of Output Shaft C2 kgf 995
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 545
Maximum Bending Moment of Input Shaft C4 kgf 705
Maximum Torque of Input Shaft C5 kgf-m 98
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 92

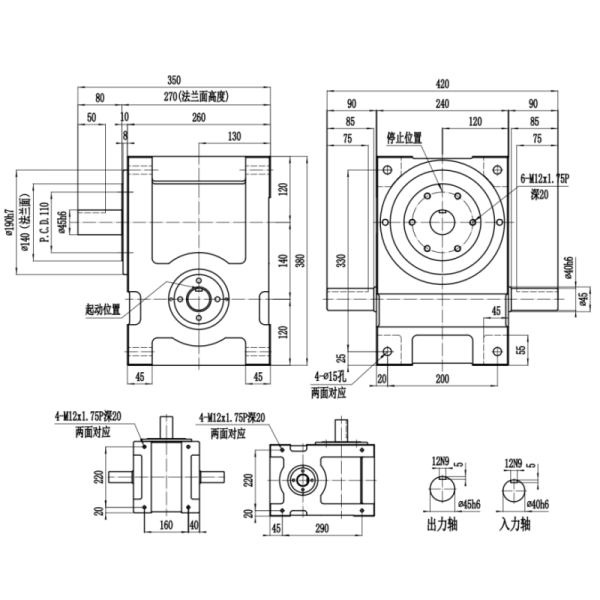

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

150DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 760
Allowable Axial Load of Output Shaft C2 kgf 1000
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 550
Maximum Bending Moment of Input Shaft C4 kgf 710
Maximum Torque of Input Shaft C5 kgf-m 100
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 94

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

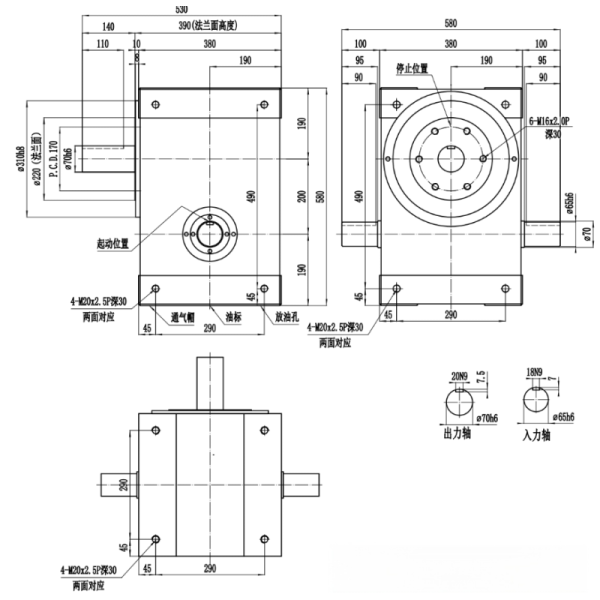

180DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1195
Allowable Axial Load of Output Shaft C2 kgf 1495
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1095
Maximum Bending Moment of Input Shaft C4 kgf 1955
Maximum Torque of Input Shaft C5 kgf-m 336
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 225

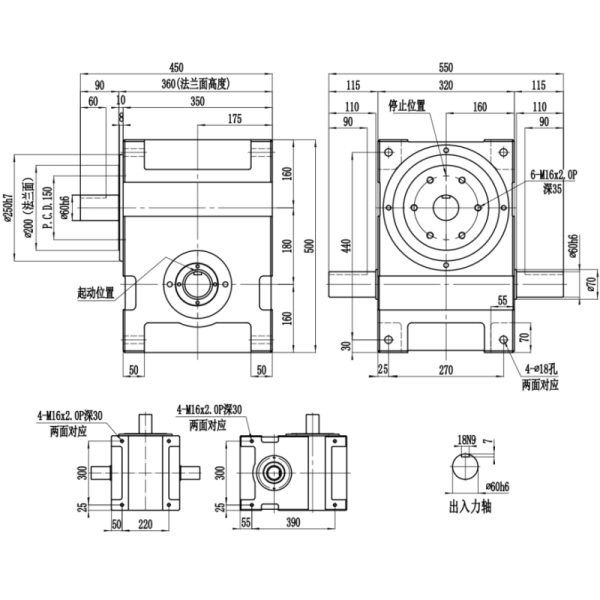

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

200DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1210
Allowable Axial Load of Output Shaft C2 kgf 1510
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1105
Maximum Bending Moment of Input Shaft C4 kgf 1965
Maximum Torque of Input Shaft C5 kgf-m 341
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 240

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision

250DE
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3195
Allowable Axial Load of Output Shaft C2 kgf 4145
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1545
Maximum Bending Moment of Input Shaft C4 kgf 3795
Maximum Torque of Input Shaft C5 kgf-m 775
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.98
Positioning Indexing Accuracy sec. ±30
Weight kg 695

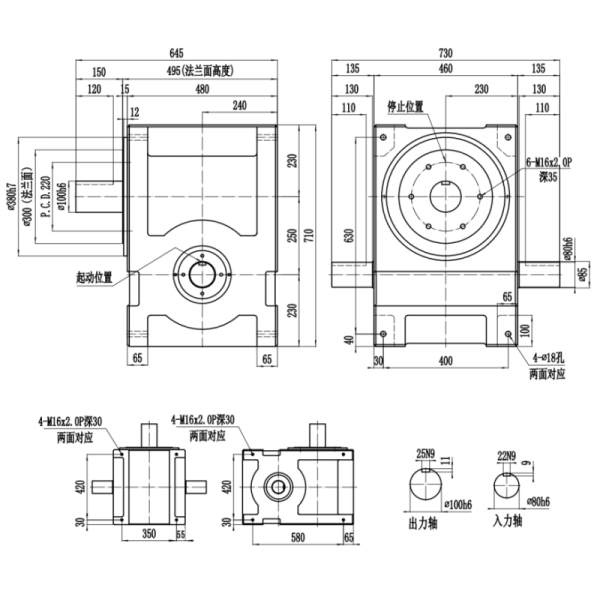

Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision
