DA Series Fixed Index Cam Indexer / Standard Indexing Drives

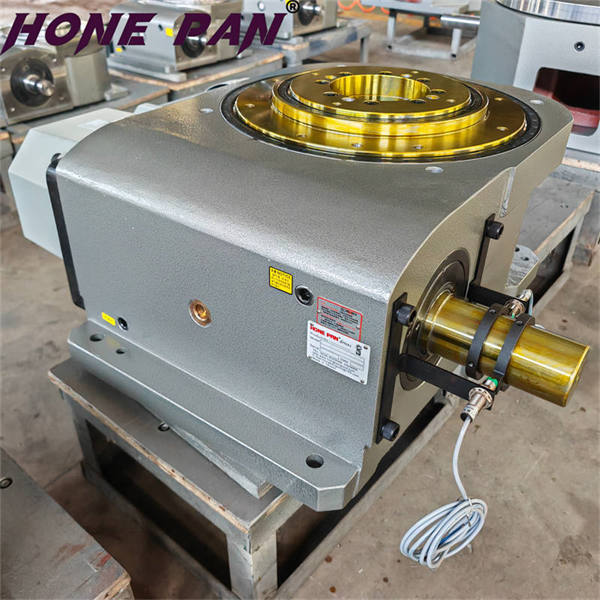

Ultra-Thin Platen-Type Indexer

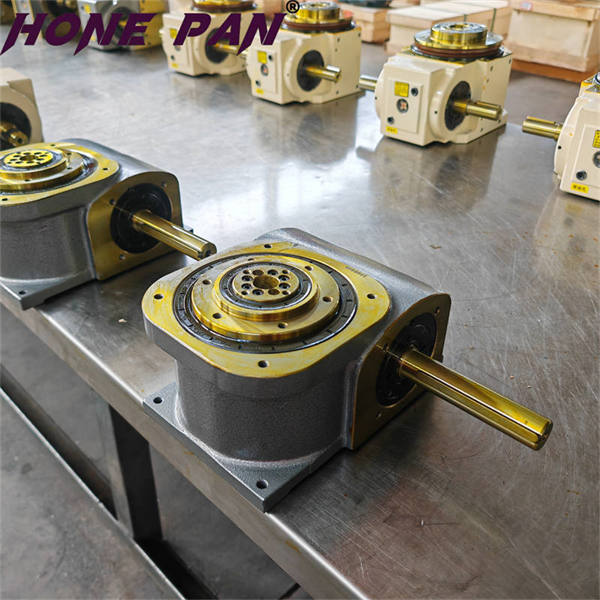

The DA Series maintains full platen-type functionality while featuring a 40% slimmer profile, specifically engineered for height-restricted installations such as vertical CNC machines and compact robotic cells.

Available Models by Configuration

Models are categorized according to the distance between input and output shafts, cabinet dimensions, and load capacity specifications:

70DA 90DA 110DA 150DA 190DA 230DA 330DA 450DA

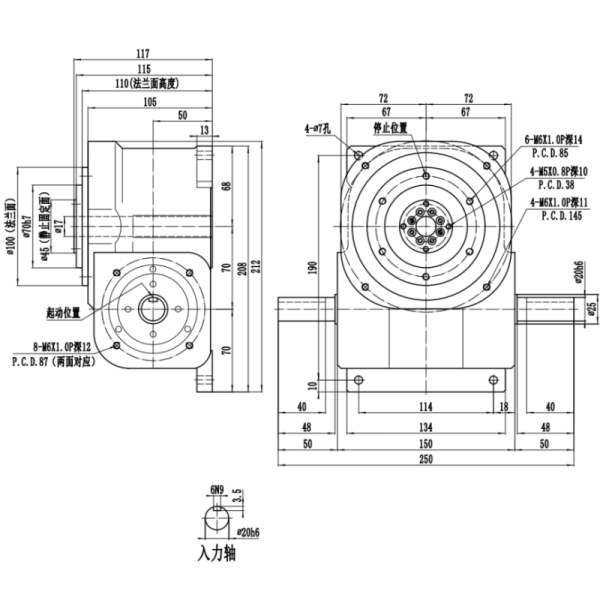

70DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 316
Allowable Axial Load of Output Shaft C2 kgf 142
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 190
Maximum Bending Moment of Input Shaft C4 kgf 163
Maximum Torque of Input Shaft C5 kgf-m 9.5
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-5
Positioning Indexing Accuracy sec. ±30
Weight kg 15

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

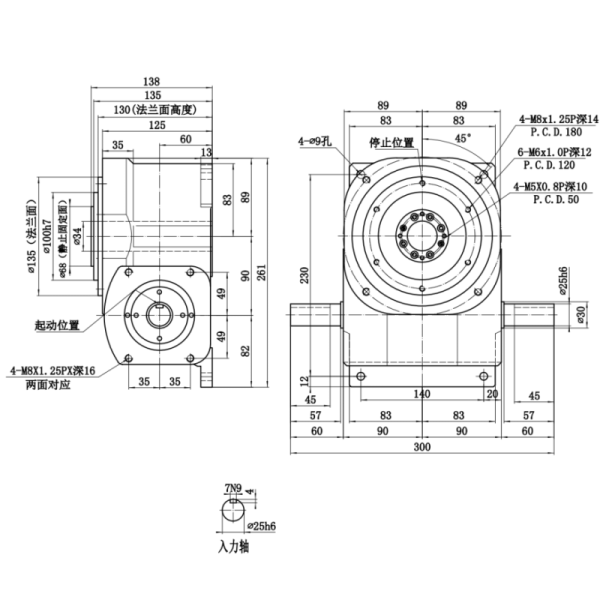

90DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 480
Allowable Axial Load of Output Shaft C2 kgf 195
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 250
Maximum Bending Moment of Input Shaft C4 kgf 250
Maximum Torque of Input Shaft C5 kgf-m 22
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.5×10-5
Positioning Indexing Accuracy sec. ±30
Weight kg 30

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

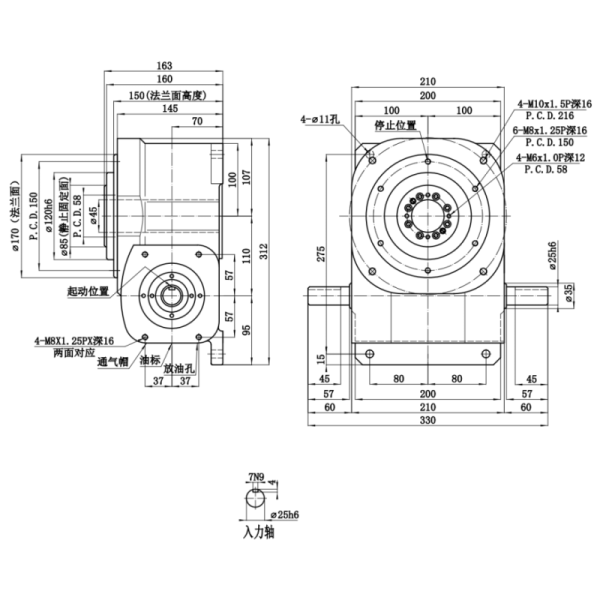

110DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 680
Allowable Axial Load of Output Shaft C2 kgf 330
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 300
Maximum Bending Moment of Input Shaft C4 kgf 350
Maximum Torque of Input Shaft C5 kgf-m 27
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6×10-5
Positioning Indexing Accuracy sec. ±30
Weight kg 44

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

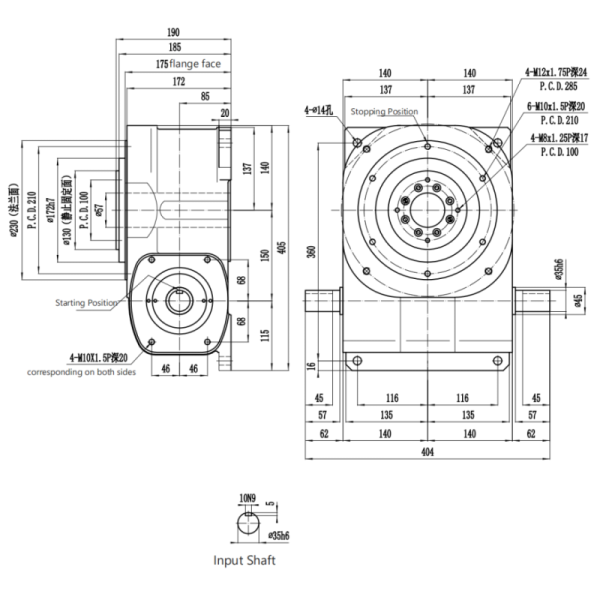

150DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1000
Allowable Axial Load of Output Shaft C2 kgf 650
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 400
Maximum Bending Moment of Input Shaft C4 kgf 400
Maximum Torque of Input Shaft C5 kgf-m 36
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2×10-5
Positioning Indexing Accuracy sec. ±30
Weight kg 90

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

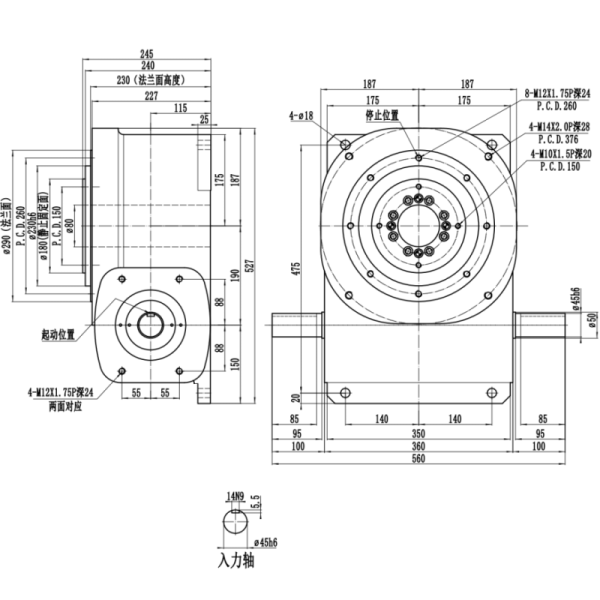

190DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1838
Allowable Axial Load of Output Shaft C2 kgf 918
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 510
Maximum Bending Moment of Input Shaft C4 kgf 510
Maximum Torque of Input Shaft C5 kgf-m 61
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.105
Positioning Indexing Accuracy sec. ±30
Weight kg 180

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

230DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 2800
Allowable Axial Load of Output Shaft C2 kgf 1300
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 650
Maximum Bending Moment of Input Shaft C4 kgf 650
Maximum Torque of Input Shaft C5 kgf-m 80
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.136
Positioning Indexing Accuracy sec. ±30
Weight kg 285

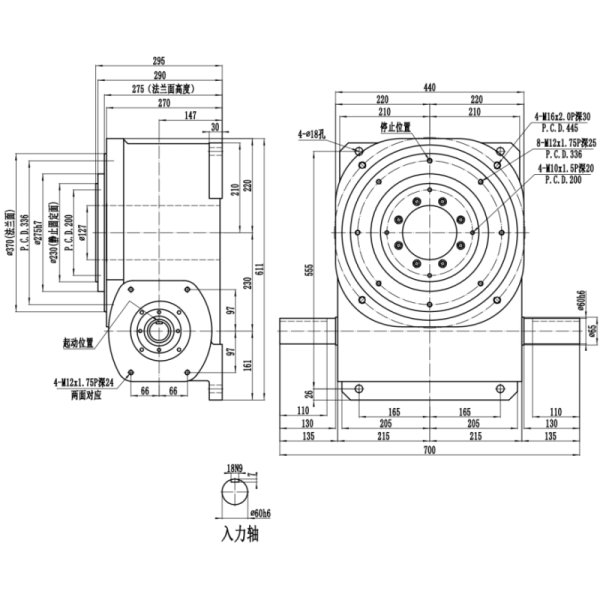

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

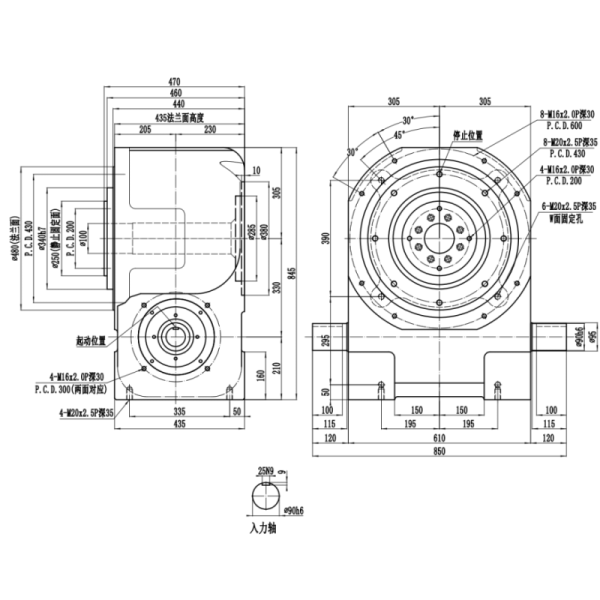

330DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3560
Allowable Axial Load of Output Shaft C2 kgf 3430
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1880
Maximum Bending Moment of Input Shaft C4 kgf 2150
Maximum Torque of Input Shaft C5 kgf-m 650
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.71
Positioning Indexing Accuracy sec. ±30
Weight kg 1000

Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations

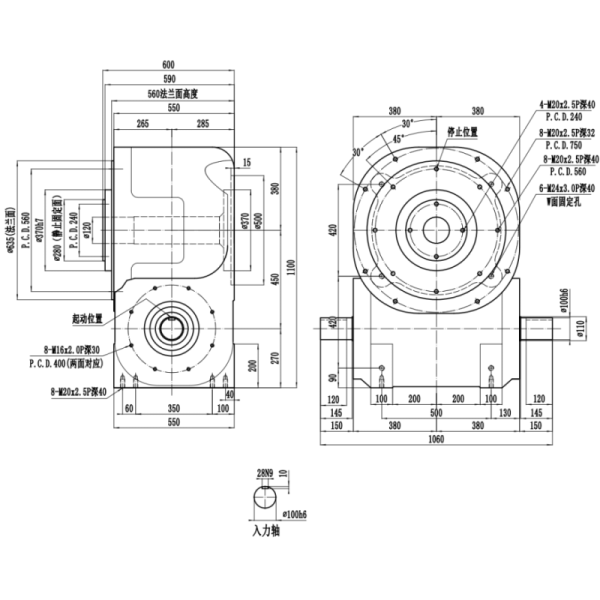

450DA
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 4850
Allowable Axial Load of Output Shaft C2 kgf 4160
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 2460
Maximum Bending Moment of Input Shaft C4 kgf 2760
Maximum Torque of Input Shaft C5 kgf-m 860
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 7.9
Positioning Indexing Accuracy sec. ±30
Weight kg 1600
