DT Series Fixed Index Cam Indexer / Standard Indexing Drives

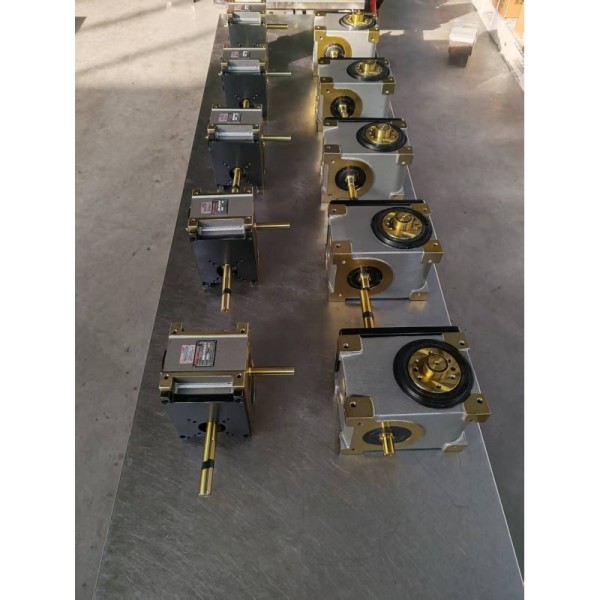

DT Series Platen-Type Indexer

Engineered for heavy-load applications and vertical radial pressure resistance, the DT Series features a raised stationary flange designed for mounting dynamic and static automation interfaces. The hollow shaft configuration accommodates power transmission lines including electrical, hydraulic, and pneumatic systems, while the large rotating flange provides secure mounting for heavy-duty rotary components.

This robust indexing drive is widely implemented in heavy-load automation systems and industrial machinery applications where reliability and durability are critical.

Available Models

The DT Series is available in multiple configurations based on input-to-output shaft distance, cabinet size, and load capacity:

  • 80DT
  • 110DT
  • 140DT
  • 180DT
  • 200DT
  • 210DT
  • 250DT
  • 350DT

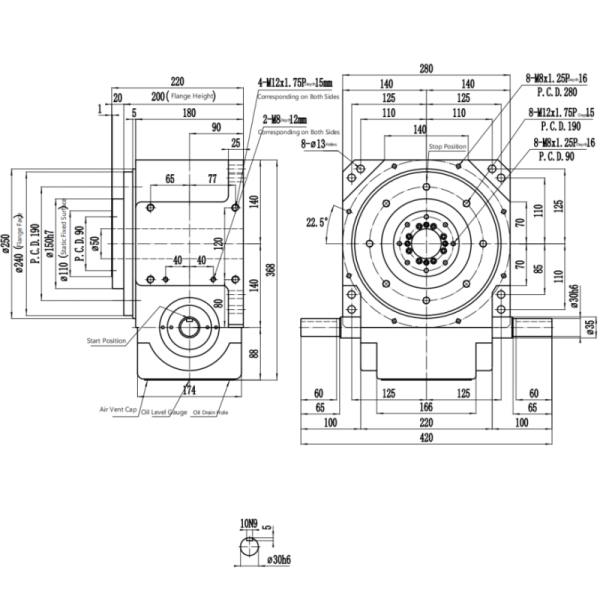

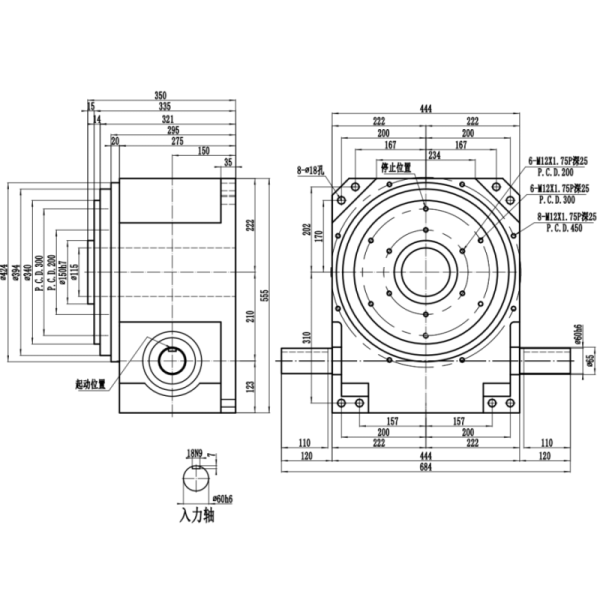

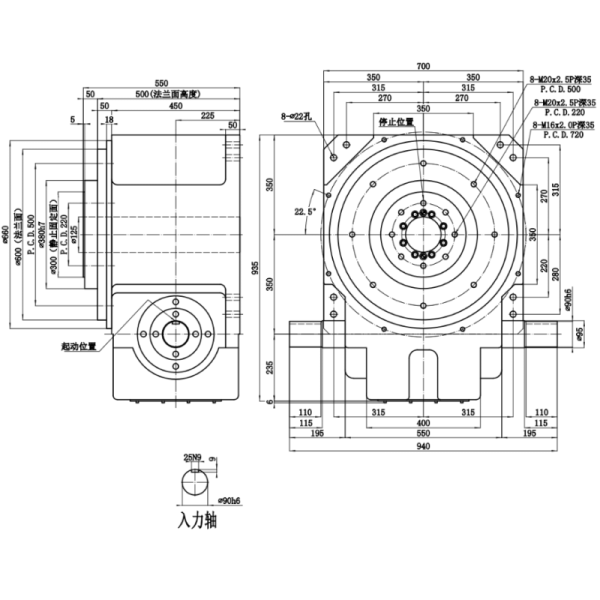

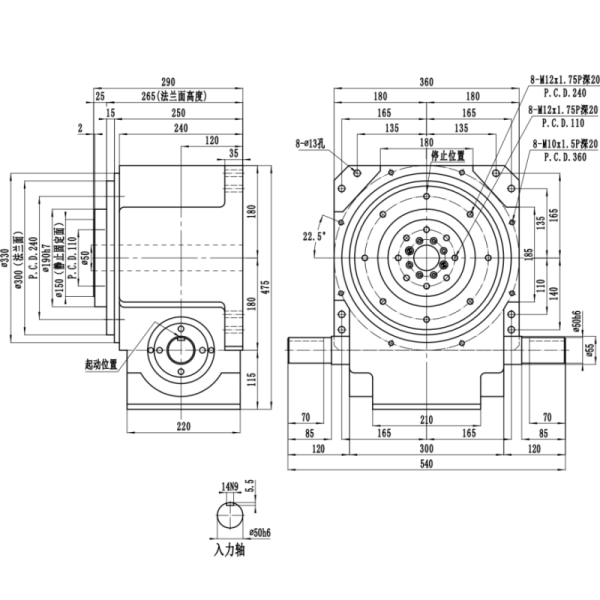

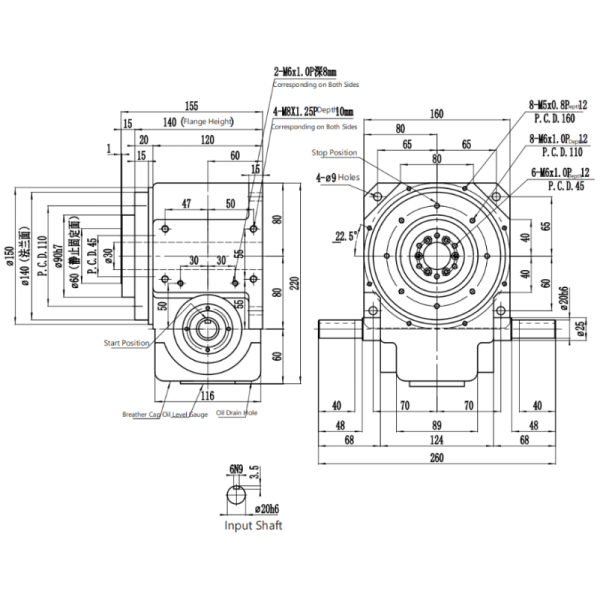

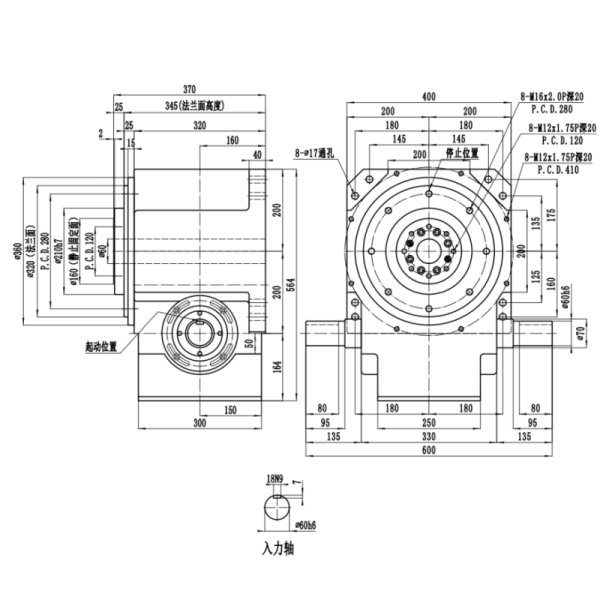

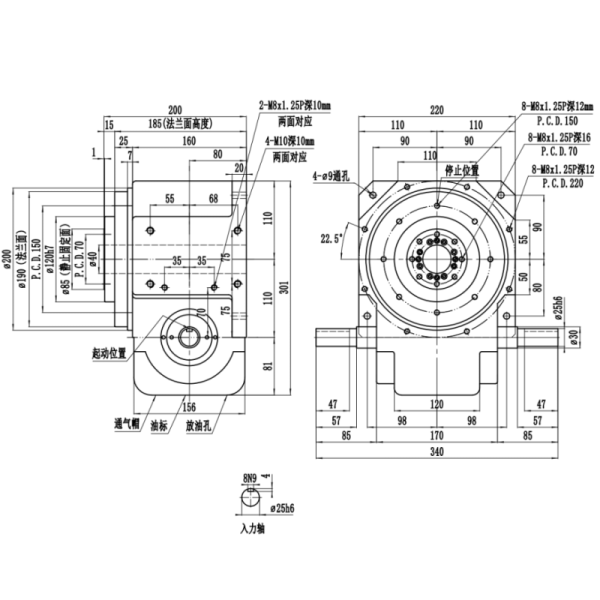

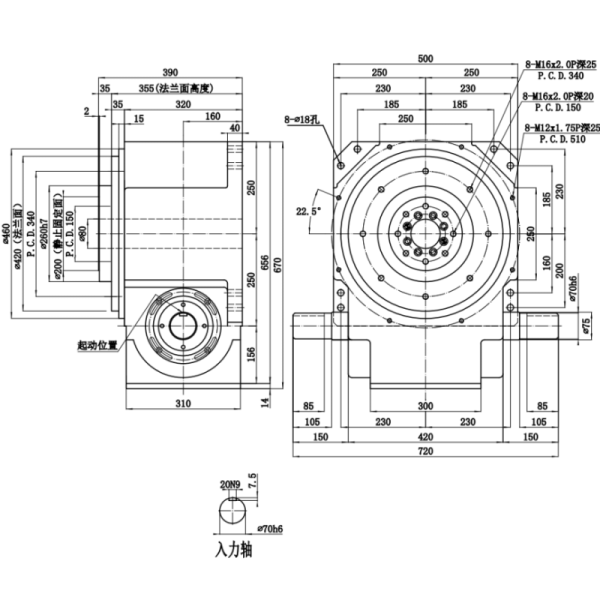

80DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 510
Allowable Axial Load of Output Shaft C2 kgf 210
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 215
Maximum Bending Moment of Input Shaft C4 kgf 155
Maximum Torque of Input Shaft C5 kgf-m 9.3
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.03
Positioning Indexing Accuracy sec. ±30
Weight kg 22

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

110DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 850
Allowable Axial Load of Output Shaft C2 kgf 410
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 295
Maximum Bending Moment of Input Shaft C4 kgf 245
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.01
Positioning Indexing Accuracy sec. ±30
Weight kg 52

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

140DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1030
Allowable Axial Load of Output Shaft C2 kgf 705
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 495
Maximum Bending Moment of Input Shaft C4 kgf 340
Maximum Torque of Input Shaft C5 kgf-m 51
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.07
Positioning Indexing Accuracy sec. ±30
Weight kg 87

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

180DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1480
Allowable Axial Load of Output Shaft C2 kgf 1080
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1190
Maximum Bending Moment of Input Shaft C4 kgf 950
Maximum Torque of Input Shaft C5 kgf-m 216
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.23
Positioning Indexing Accuracy sec. ±30
Weight kg 190

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

200DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1800
Allowable Axial Load of Output Shaft C2 kgf 1300
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1400
Maximum Bending Moment of Input Shaft C4 kgf 1050
Maximum Torque of Input Shaft C5 kgf-m 440
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.62
Positioning Indexing Accuracy sec. ±30
Weight kg 450

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

210DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1950
Allowable Axial Load of Output Shaft C2 kgf 1520
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1570
Maximum Bending Moment of Input Shaft C4 kgf 1130
Maximum Torque of Input Shaft C5 kgf-m 460
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.62
Positioning Indexing Accuracy sec. ±30
Weight kg 450

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

250DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 2400
Allowable Axial Load of Output Shaft C2 kgf 1700
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1800
Maximum Bending Moment of Input Shaft C4 kgf 2200
Maximum Torque of Input Shaft C5 kgf-m 665
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.86
Positioning Indexing Accuracy sec. ±30
Weight kg 500

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

350DT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 4300
Allowable Axial Load of Output Shaft C2 kgf 3100
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 2700
Maximum Bending Moment of Input Shaft C4 kgf 3700
Maximum Torque of Input Shaft C5 kgf-m 990
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.7
Positioning Indexing Accuracy sec. ±30
Weight kg 1200
