Specifications
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Hardness :
50HRC~72HRC ，Customizable
MOQ :
≥1000 $
Cam material :
Default 42CrMoAl，Customizable
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Dimensions :
Customizable
Supply Ability :
5000 SET/MONTH
Longest lifespan :
60000 hours
Price :
200 $/SET~4500 $/SET
Delivery Time :
4 DAYS-20 DAYS
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Packaging Details :
PLYWOOD BOX
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T
Warranty :
1year
Description

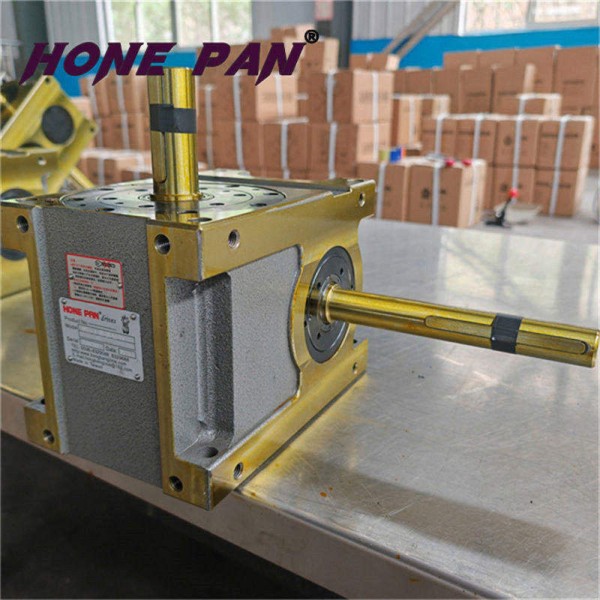

DS Series Fixed Index Cam Indexer / Standard Indexing Drives
The DS Series features a shaft output design, making it ideal for intermittent conveyor belt systems. It connects seamlessly via gears, couplings, or coupling discs to ensure reliable power transmission in demanding industrial applications.

According to the distance between the input shaft and the output shaft, the size of the cabinet, and the size of the load that can be withstood, it can be divided into:

32DS/38DS/45DS/60DS/63DS/70DS/80DS/83DS/100DS/110DS

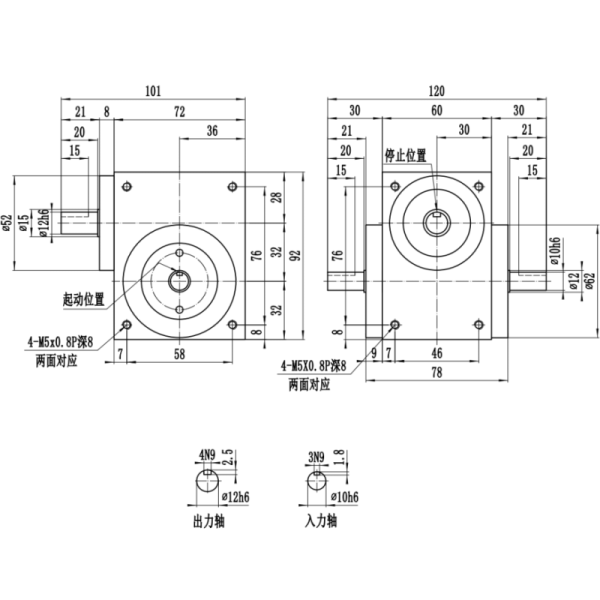

32DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 19
Allowable Axial Load of Output Shaft C2 kgf 29
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 17
Maximum Bending Moment of Input Shaft C4 kgf 19
Maximum Torque of Input Shaft C5 kgf-m 2.5
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3×10-5
Positioning Indexing Accuracy sec. ±30
Weight kg 1.5
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

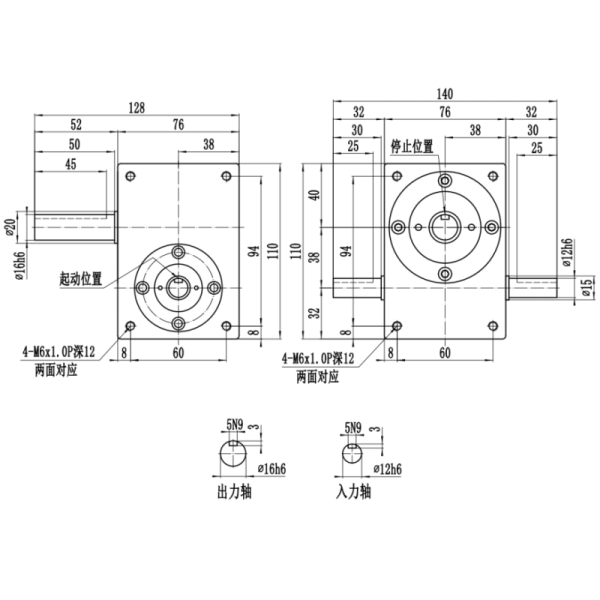

38DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 39
Allowable Axial Load of Output Shaft C2 kgf 44
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 34
Maximum Bending Moment of Input Shaft C4 kgf 34
Maximum Torque of Input Shaft C5 kgf-m 2.4
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6.6×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 5
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

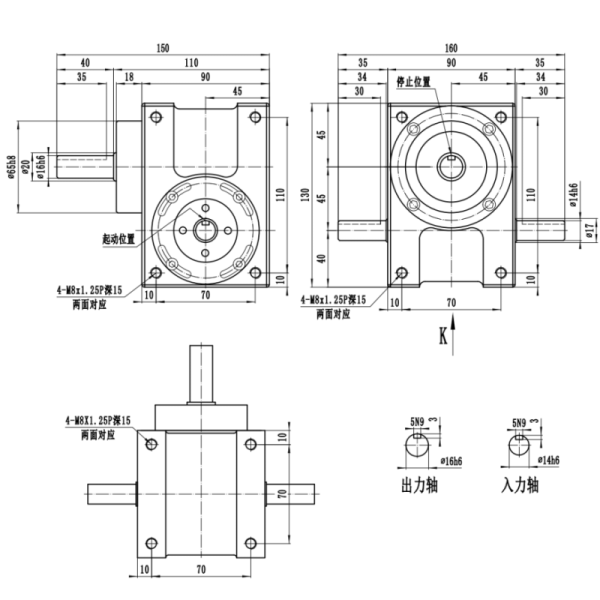

45DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 78
Allowable Axial Load of Output Shaft C2 kgf 70.5
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 73
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 9
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

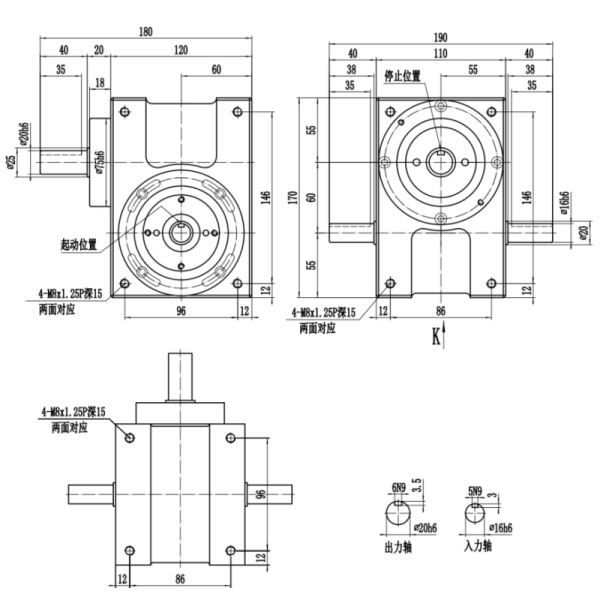

60DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 78
Allowable Axial Load of Output Shaft C2 kgf 70.5
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 73
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy sec. ±30
Weight kg 9
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

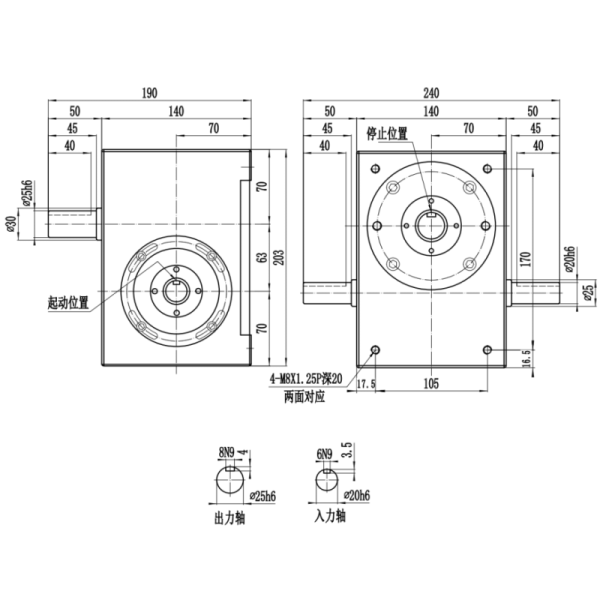

63DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 178
Allowable Axial Load of Output Shaft C2 kgf 148
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 97
Maximum Bending Moment of Input Shaft C4 kgf 93
Maximum Torque of Input Shaft C5 kgf-m 6
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 17
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

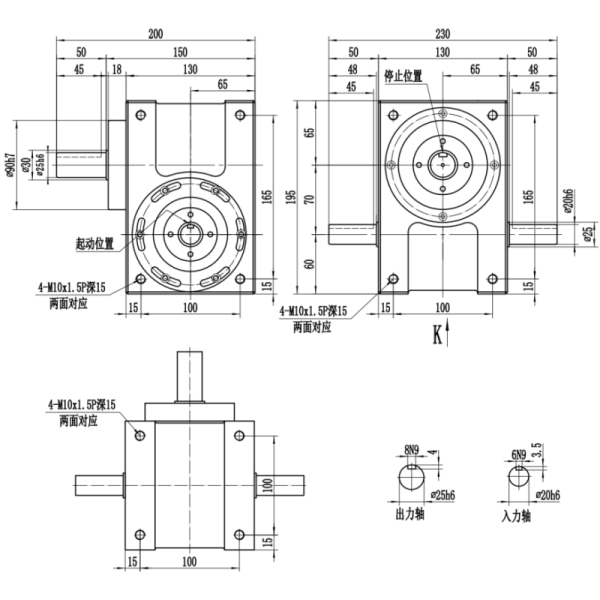

70DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 215
Allowable Axial Load of Output Shaft C2 kgf 217
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 146
Maximum Bending Moment of Input Shaft C4 kgf 106
Maximum Torque of Input Shaft C5 kgf-m 9
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 20
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

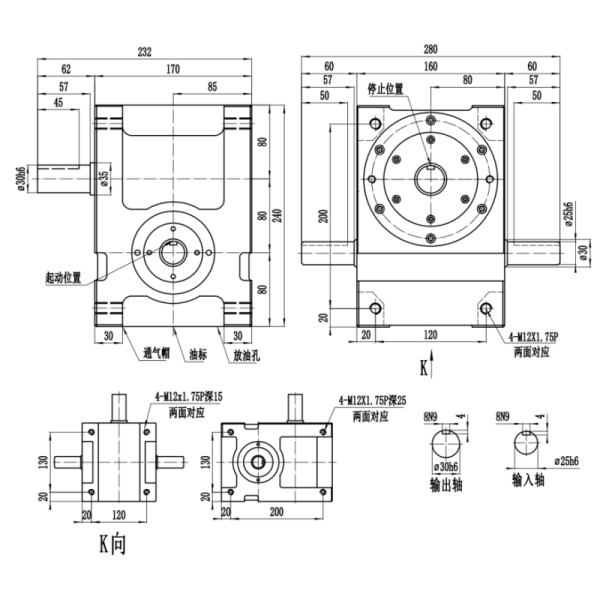

80DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 327
Allowable Axial Load of Output Shaft C2 kgf 417
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 35
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

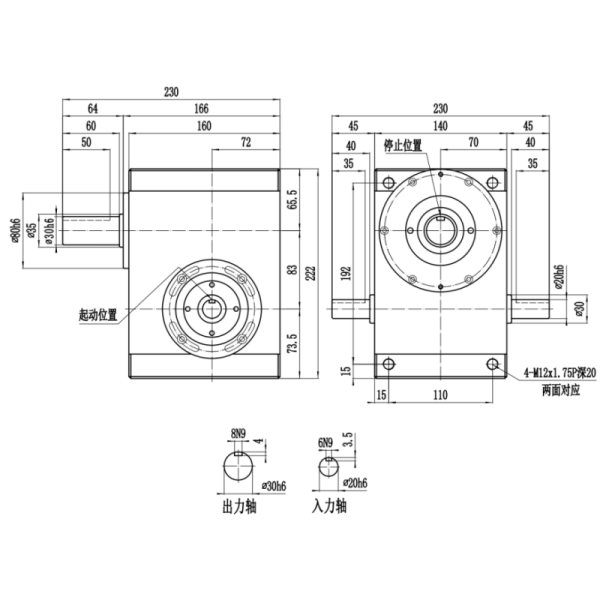

83DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 325
Allowable Axial Load of Output Shaft C2 kgf 415
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 28
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

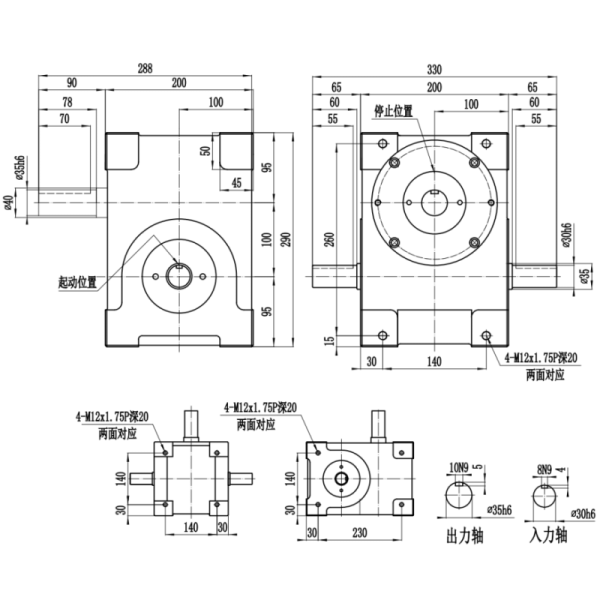

100DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 395
Allowable Axial Load of Output Shaft C2 kgf 445
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 295
Maximum Bending Moment of Input Shaft C4 kgf 215
Maximum Torque of Input Shaft C5 kgf-m 25
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 4×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 54
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

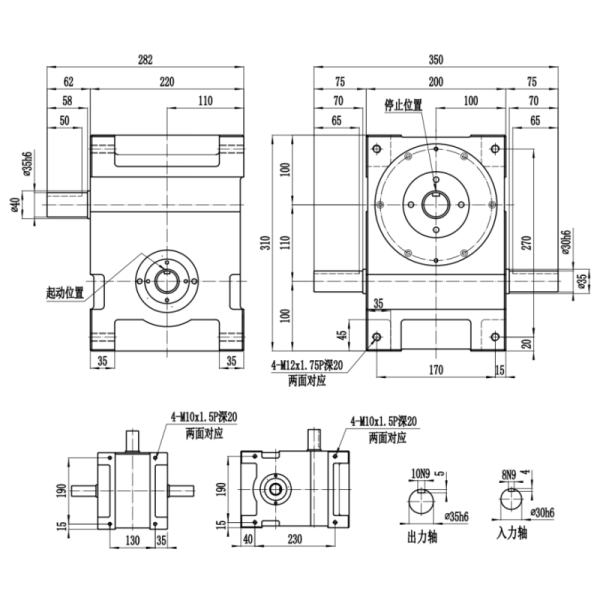

110DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 494
Allowable Axial Load of Output Shaft C2 kgf 544
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 355
Maximum Bending Moment of Input Shaft C4 kgf 285
Maximum Torque of Input Shaft C5 kgf-m 31
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.8×10-2
Positioning Indexing Accuracy sec. ±30
Weight kg 67
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

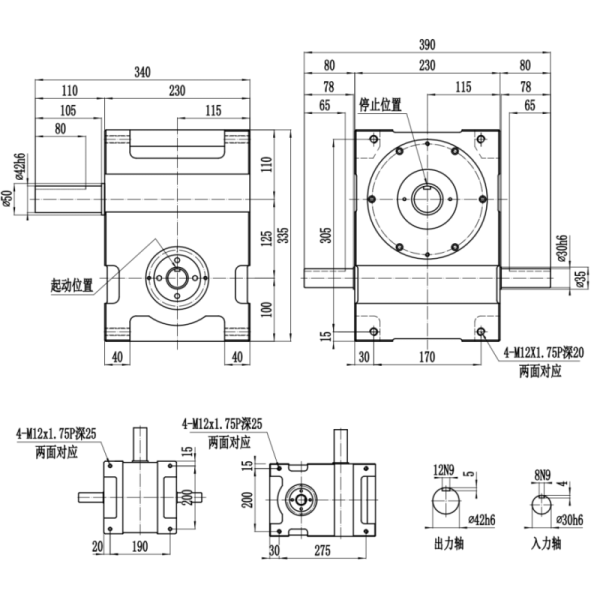

125DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 600
Allowable Axial Load of Output Shaft C2 kgf 690
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 390
Maximum Bending Moment of Input Shaft C4 kgf 410
Maximum Torque of Input Shaft C5 kgf-m 50
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.092
Positioning Indexing Accuracy sec. ±30
Weight kg 78
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

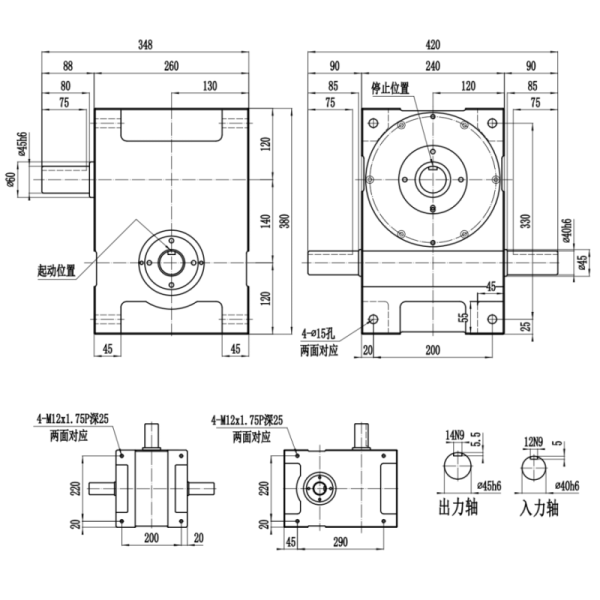

140DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 720
Allowable Axial Load of Output Shaft C2 kgf 850
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 430
Maximum Bending Moment of Input Shaft C4 kgf 550
Maximum Torque of Input Shaft C5 kgf-m 74
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 92
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

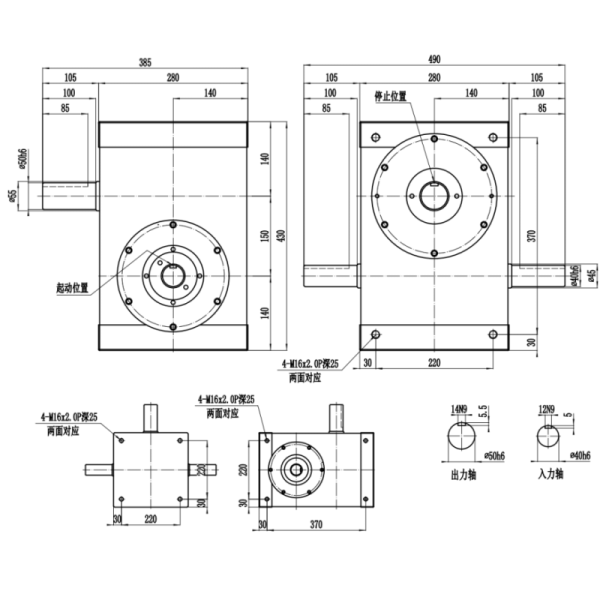

150DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 730
Allowable Axial Load of Output Shaft C2 kgf 860
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 440
Maximum Bending Moment of Input Shaft C4 kgf 560
Maximum Torque of Input Shaft C5 kgf-m 75
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 96
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

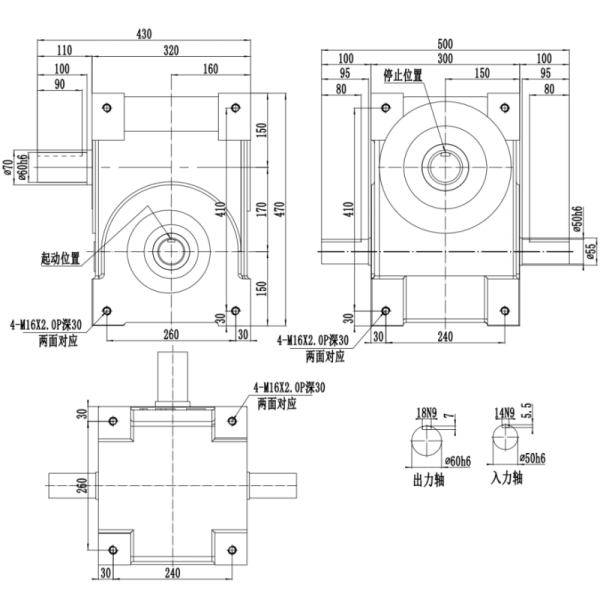

170DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 990
Allowable Axial Load of Output Shaft C2 kgf 1290
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 480
Maximum Bending Moment of Input Shaft C4 kgf 940
Maximum Torque of Input Shaft C5 kgf-m 130
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 200
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

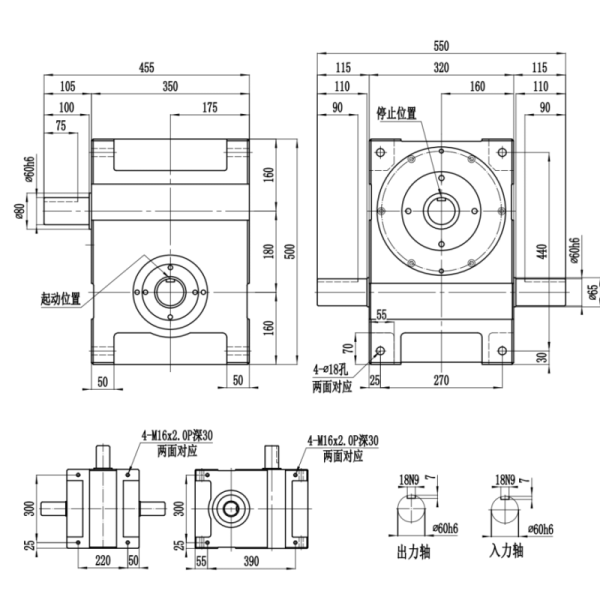

180DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1190
Allowable Axial Load of Output Shaft C2 kgf 1490
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 580
Maximum Bending Moment of Input Shaft C4 kgf 1040
Maximum Torque of Input Shaft C5 kgf-m 145
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 230
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

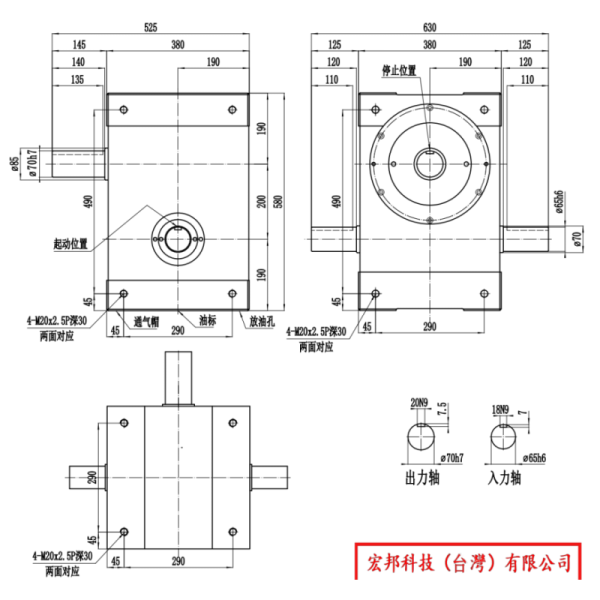

200DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1200
Allowable Axial Load of Output Shaft C2 kgf 1500
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 590
Maximum Bending Moment of Input Shaft C4 kgf 1045
Maximum Torque of Input Shaft C5 kgf-m 147
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 240

60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

Send your message to this supplier
Send Now

60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

Ask Latest Price
Product Detail
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Hardness :
50HRC~72HRC ，Customizable
MOQ :
≥1000 $
Cam material :
Default 42CrMoAl，Customizable
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Dimensions :
Customizable
Contact Supplier
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems
60000 Hours Fixed Index Cam Indexer With Shaft Output For Intermittent Conveyor Belt Systems

Zhucheng HONEPAN Automation Machinery Factory

Verified Supplier
1 Years
shandong
Since 2007.01
Business Type :
Manufacturer, Seller
Main Products :
Cam Indexers, Cam Indexing Drive, Programmable Rotary Indexer
Total Annual :
70000000-130000000
Employee Number :
120~180
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Cam Indexers
MachineU China Products Machinery Engineering & Construction Machinery Road Machinery Road Marking Machines
Contact Supplier
Submit Requirement
