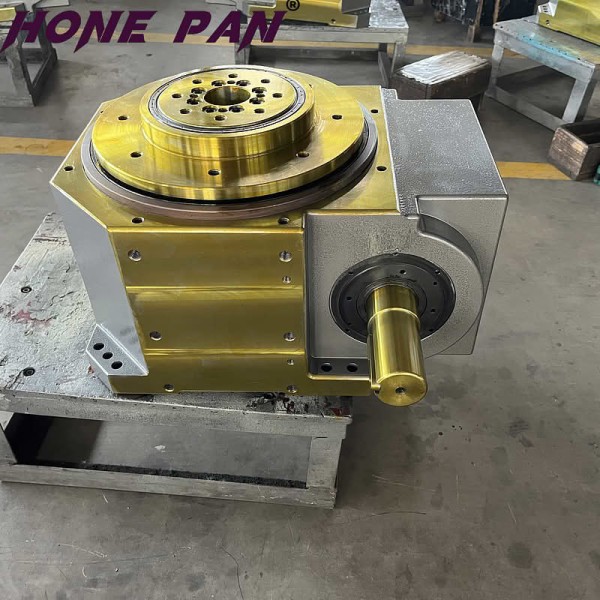

DT Series Platen Type Indexer - Programmable Rotary Indexer
Product Overview

DT Series Fixed Index Cam Indexer / Standard Indexing Drives

Engineered for heavy-load applications and vertical radial pressure resistance, the DT Series features a raised stationary flange designed for mounting dynamic and static automation interfaces. The hollow shaft configuration accommodates power transmission lines including electrical, hydraulic, and pneumatic systems, while the large rotating flange provides secure mounting for heavy-duty rotary components.

This robust indexing drive is widely implemented in heavy-load automation systems and industrial machinery applications where reliability and durability are critical.

Available Models
  • 80DT
  • 110DT
  • 140DT
  • 180DT
  • 200DT
  • 210DT
  • 250DT
  • 350DT
Technical Specifications
80DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf510
Allowable Axial Load of Output ShaftC2kgf210
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf215
Maximum Bending Moment of Input ShaftC4kgf155
Maximum Torque of Input ShaftC5kgf-m9.3
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.03
Positioning Indexing Accuracysec.±30
Weightkg22
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
110DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf850
Allowable Axial Load of Output ShaftC2kgf410
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf295
Maximum Bending Moment of Input ShaftC4kgf245
Maximum Torque of Input ShaftC5kgf-m24
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.01
Positioning Indexing Accuracysec.±30
Weightkg52
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
140DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf1030
Allowable Axial Load of Output ShaftC2kgf705
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf495
Maximum Bending Moment of Input ShaftC4kgf340
Maximum Torque of Input ShaftC5kgf-m51
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.07
Positioning Indexing Accuracysec.±30
Weightkg87
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
180DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf1480
Allowable Axial Load of Output ShaftC2kgf1080
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf1190
Maximum Bending Moment of Input ShaftC4kgf950
Maximum Torque of Input ShaftC5kgf-m216
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.23
Positioning Indexing Accuracysec.±30
Weightkg190
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
200DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf1800
Allowable Axial Load of Output ShaftC2kgf1300
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf1400
Maximum Bending Moment of Input ShaftC4kgf1050
Maximum Torque of Input ShaftC5kgf-m440
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.62
Positioning Indexing Accuracysec.±30
Weightkg450
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
210DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf1950
Allowable Axial Load of Output ShaftC2kgf1520
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf1570
Maximum Bending Moment of Input ShaftC4kgf1130
Maximum Torque of Input ShaftC5kgf-m460
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.62
Positioning Indexing Accuracysec.±30
Weightkg450
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
250DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf2400
Allowable Axial Load of Output ShaftC2kgf1700
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf1800
Maximum Bending Moment of Input ShaftC4kgf2200
Maximum Torque of Input ShaftC5kgf-m665
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²0.86
Positioning Indexing Accuracysec.±30
Weightkg500
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
350DT
Item Symbol Unit Value
Allowable Radial Load of Output ShaftC1kgf4300
Allowable Axial Load of Output ShaftC2kgf3100
Allowable Torque of Output ShaftTskgf-mRefer to Torque Table
Allowable Radial Load of Input ShaftC3kgf2700
Maximum Bending Moment of Input ShaftC4kgf3700
Maximum Torque of Input ShaftC5kgf-m990
Moment of Inertia of Input Shaft (Note 1)C6kgf-m²2.7
Positioning Indexing Accuracysec.±30
Weightkg1200
DT Series Heavy Load Handling Cam Indexer with Hollow Shaft for High Precision Industrial Automation
Note 1: Moment of Inertia values are approximate and may vary based on specific configuration.
