Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Automotive Welding Programmable Rotary Index Table Free Stop
Specifications
Warranty :
1year
Delivery Time :
4 DAYS-20 DAYS
Price :
200 $/SET~4500 $/SET
Dimensions :
Customizable
Packaging Details :
PLYWOOD BOX
MOQ :
≥1000 $
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Supply Ability :
5000 SET/MONTH
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Payment Terms :
T/T
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Cam material :
Default 42CrMoAl，Customizable
Longest lifespan :
60000 hours
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Hardness :
50HRC~72HRC ，Customizable
Description

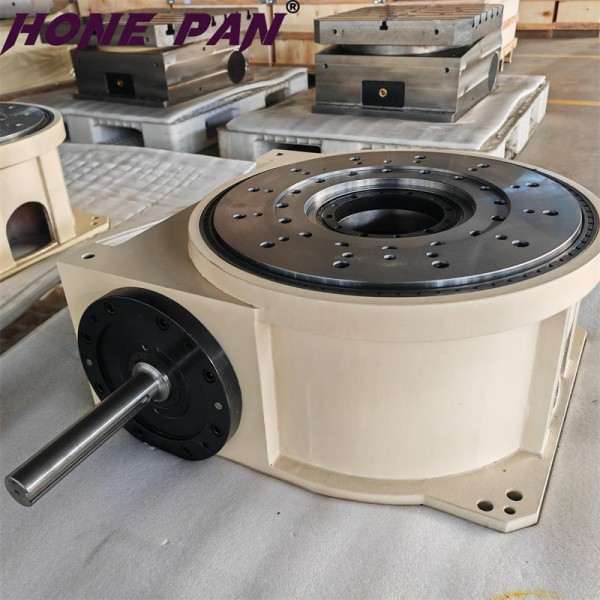

HB-YS Series Cam Driven Rotary Table Free Stop Heavy Duty Rotary Tables

The HONEPAN Automotive Welding Rotary Table delivers exceptional precision and reliability for demanding automotive welding applications. Engineered for heavy-duty industrial operations, this robust rotary table provides seamless integration with robotic welding arms, laser systems, and automated production lines.

Features 360° precise positioning capability for complex weld seam alignment and optimal component access.
Additional Applications

The HB-YS series is also widely utilized in robotics, robotic arms, and various other industrial automation fields requiring precise rotational positioning and heavy-duty performance.

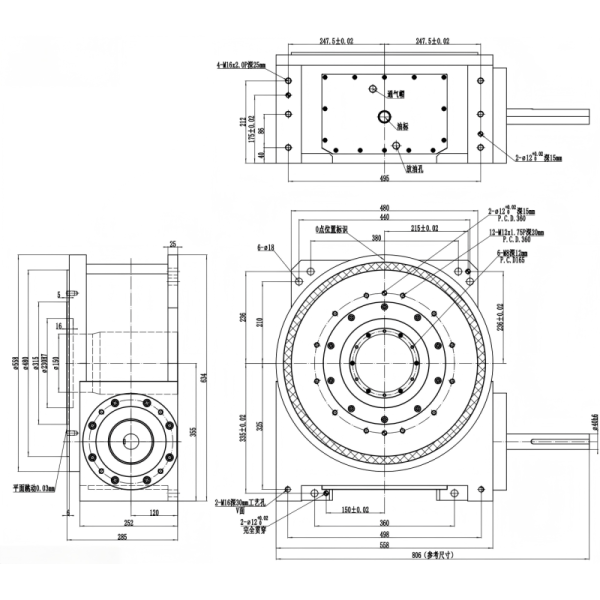

Rotary Table Technical Specifications
Item Unit HBYS480
Table Diameter mm 480
Center Bore Diameter mm 150
Height (Output Flange Surface to Mounting Surface) mm 285
Mounting Orientation — Vertical or Horizontal
Rotation Direction — Clockwise / Counterclockwise / Reciprocating
Drive Position — Right Side
Cam Curve Direction — Right-hand
Rotary Table Reduction Ratio — 1 : 12 (Reduction)
Measuring System (Inside Servo Motor) — Absolute Encoder
Max. Load Capacity kg 3500
Allowable Moment of Inertia kg·m² 5300
Allowable Axial Load (Dynamic) N 35000
Allowable Radial Load (Dynamic) N 23000
Allowable Overturning Moment Nm 8000
Allowable Tangential Torque Nm 5600
Positioning Accuracy arcsec ±30
Repeat Positioning Accuracy arcsec ±6
