Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
Specifications
Supply Ability :
5000 SET/MONTH
Dimensions :
Customizable
Payment Terms :
T/T
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Cam material :
Default 42CrMoAl，Customizable
Packaging Details :
PLYWOOD BOX
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Delivery Time :
4 DAYS-20 DAYS
Price :
200 $/SET~4500 $/SET
Hardness :
50HRC~72HRC ，Customizable
MOQ :
≥1000 $
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Longest lifespan :
60000 hours
Warranty :
1year
Place of Origin :
CHINA
Brand Name :
HONEPAN
Certification :
ISO9001
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Description

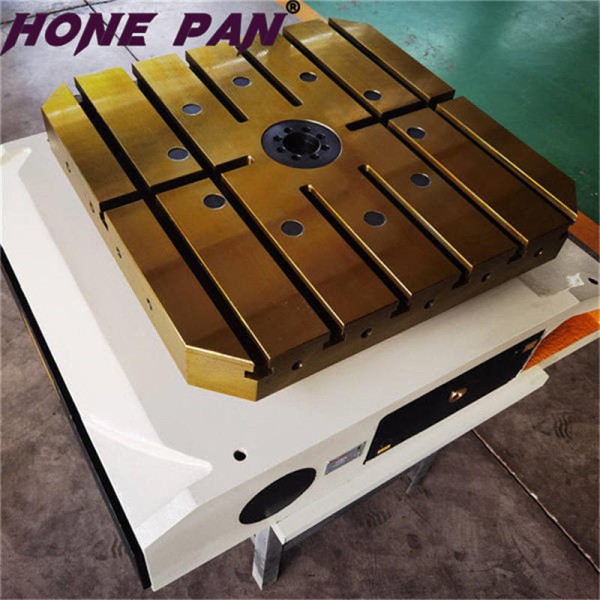

Free Stop Heavy Duty Indexers
DC Series Horizontal Cam Rotary Table

Our DC Series Horizontal Cam Rotary Tables feature advanced internal transmission technology designed for precision manufacturing applications.

  • Cam roller transmission structure for superior performance
  • Pre-pressed cam and needle roller bearings eliminate backlash
  • Zero sliding friction operation
  • High repeatability in forward and reverse movements
  • No regular calibration or adjustment required
  • Maintains zero-backlash characteristics over time
  • High precision and efficiency for demanding applications

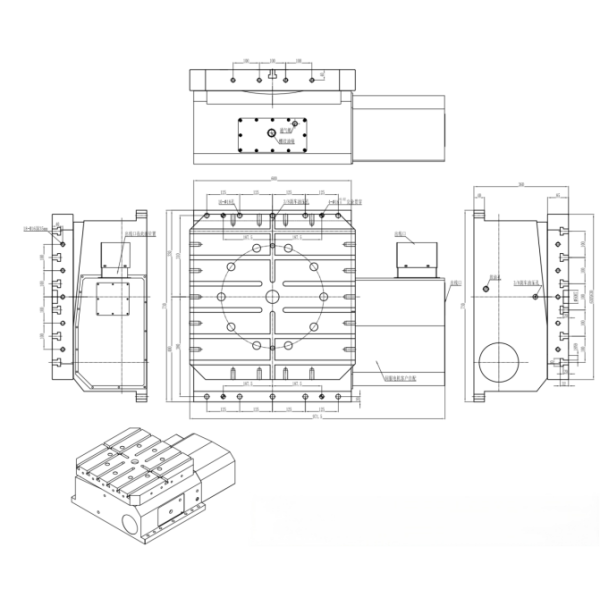

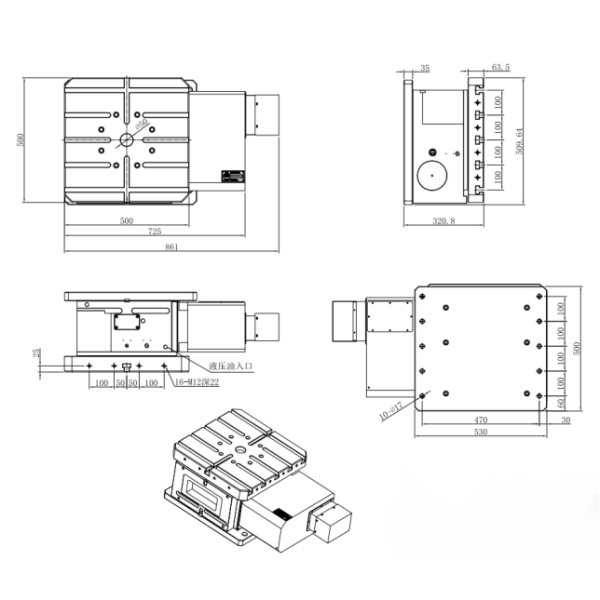

DC500 Parameter Table
ItemUnitData
Turntable Diametermm500*500
Turntable Heightmm290
Central Through Holemm∅100
Motor Standard Specification (Direct Shaft Motor)
For Other Specifications and Brands, Please Consult for Customization		-FANUC - βiS22
MITSUBISHI - HF204
T - Slot Widthmm18H7
Minimum Angle Setting Unitdeg0.001
Maximum Rotation Speedrpm40
Total Reduction Ratio-0.076388889
Indexing Accuracyarc·sec±10
Repeatability Accuracyarc·sec4
Locking Method (Hydraulic)Mpa4.5±0.5
Locking TorqueN·m2650
Continuous Cutting TorqueN·m1580
Maximum Cutting Torque (When Brake is Locked)N·m2650
Product Weightkg370

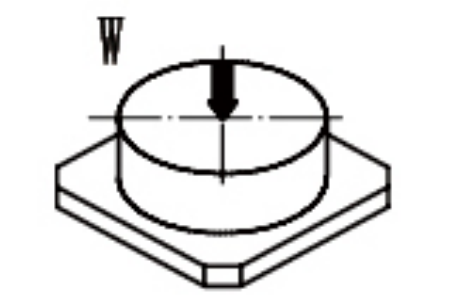

Load CapacityFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structurekg800

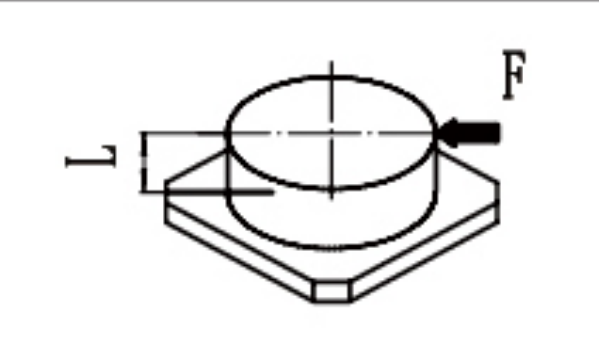

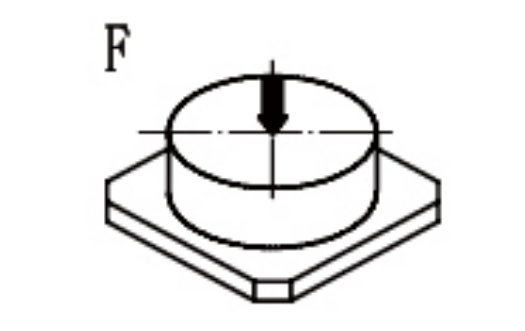

Allowable Load - FFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN58000

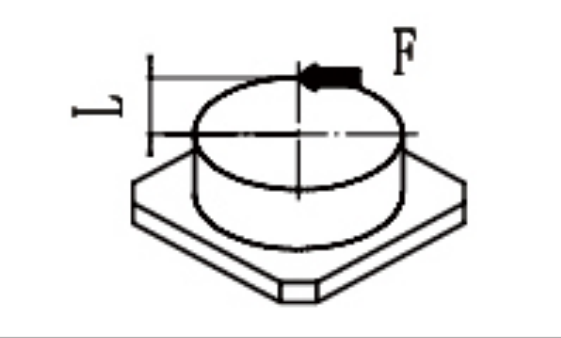

Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m2650
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m7900

Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure

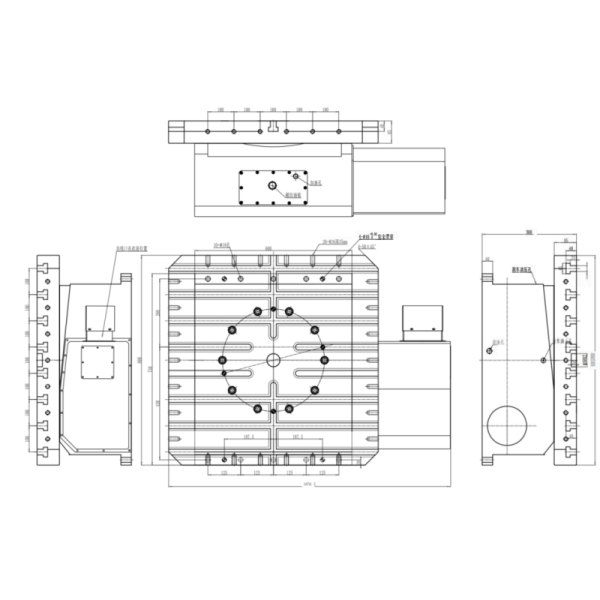

DC630 Parameter Table
ItemUnitData
Turntable Diametermm630*630
Turntable Heightmm350
Central Through Holemm∅100
Motor Standard Specification (Direct Shaft Motor)
For Other Specifications and Brands, Please Consult for Customization		-FANUC - βiS22
MITSUBISHI - HF204
T - Slot Widthmm18H7
Minimum Angle Setting Unitdeg0.001
Maximum Rotation Speedrpm25
Total Reduction Ratio-1:70
Indexing Accuracyarc·sec±10
Repeatability Accuracyarc·sec4
Locking Method (Hydraulic)Mpa4.5±0.5
Locking TorqueN·m4600
Continuous Cutting TorqueN·m2800
Maximum Cutting Torque (When Brake is Locked)N·m4600
Product Weightkg800
Load CapacityFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structurekg1200
Allowable Load - FFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN65000
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m4600
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m9500

Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure

DC800 Parameter Table
ItemUnitData
Turntable Diametermm800*800
Turntable Heightmm390
Central Through Holemm∅100
Motor Standard Specification (Direct Shaft Motor)
For Other Specifications and Brands, Please Consult for Customization		-FANUC - βiS22
MITSUBISHI - HF204
T - Slot Widthmm22H7
Minimum Angle Setting Unitdeg0.001
Maximum Rotation Speedrpm20
Total Reduction Ratio-1:90
Indexing Accuracyarc·sec±10''
Repeatability Accuracyarc·sec4''
Locking Method (Hydraulic)Mpa4.5±0.5
Locking TorqueN·m7600
Continuous Cutting TorqueN·m3950
Maximum Cutting Torque (When Brake is Locked)N·m7600
Product Weightkg1020
Load CapacityFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structurekg2000
Allowable Load - FFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN105000
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m7600
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m12800

Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
