HBY-BT Series Hollow Shaft Cam Indexing Drive Through Hole Design 45mm Bore for Automated Assembly Lines
HBY-BT Series Hollow Shaft Cam Indexing Drive Through Hole Design 45mm Bore for Automated Assembly Lines
HBY-BT Series Hollow Shaft Cam Indexing Drive Through Hole Design 45mm Bore for Automated Assembly Lines
HBY-BT Series Hollow Shaft Cam Indexing Drive Through Hole Design 45mm Bore for Automated Assembly Lines
HBY-BT Series Hollow Shaft Cam Indexing Drive Through Hole Design 45mm Bore for Automated Assembly Lines
HBY-BT Series Hollow Shaft Cam Indexing Drive Through Hole Design 45mm Bore for Automated Assembly Lines
Specifications
Place of Origin :
Guangdong, China
Model Number :
HBY-BT-45
MOQ :
1 Set
Delivery Time :
7-15 working days
Certification :
ISO 9001:2015
Center Distance :
80-180mm
Positioning Accuracy :
±30 Arcsec
Price :
USD 900-2800 / Set
Indexing Stations :
2-8 Stops
Output Torque :
Up to 800Nm
Hollow Shaft Diameter :
45mm
Input Speed :
Up to 400RPM
Supply Ability :
400 Sets per Month
Payment Terms :
T/T, L/C, Western Union
Packaging Details :
WNRLN branded plywood case with anti-rust protection and foam cushioning
Brand Name :
WNRLN
Cam Type :
Globoidal Cam
Description

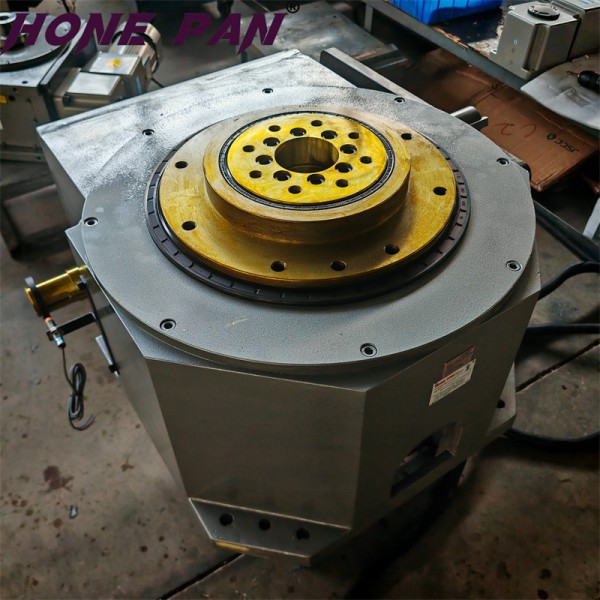

HBY-BT Series Hollow Shaft Cam Indexing Drive

The HBY-BT Series features a hollow shaft cam indexing drive with a 45mm through hole bore design, ideal for automated assembly lines requiring wiring, pneumatic lines, or shaft pass-through in the center of the rotary indexer.

Key Features

  • 45mm Through Hole: Large central bore for wiring, piping, and auxiliary shaft pass-through
  • Space-Saving Integration: Eliminates external cable management systems
  • Globoidal Cam Mechanism: Smooth indexing motion with high rigidity
  • Flexible Station Count: Configurable from 2 to 8 indexing stops
  • Sealed Bearings: Maintenance-friendly design with long lubrication intervals

Technical Specifications

Hollow Shaft Diameter45mm
Indexing Stations2-8 Stops
Center Distance80-180mm
Output TorqueUp to 800Nm
Input SpeedUp to 400RPM

Applications

Automated assembly lines, rotary filling machines, pick-and-place systems, packaging turntables, and robotic workstations with central utility routing.
