Specifications
Hardness :
50HRC~72HRC ，Customizable
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T
Packaging Details :
PLYWOOD BOX
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Supply Ability :
5000 SET/MONTH
MOQ :
≥1000 $
Price :
200 $/SET~4500 $/SET
Dimensions :
Customizable
Longest lifespan :
60000 hours
Delivery Time :
4 DAYS-20 DAYS
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Cam material :
Default 42CrMoAl，Customizable
Warranty :
1year
Description
HBY-DB Series Heavy Duty Cam Indexing Table Fixed Index Heavy Duty Indexers
DB Series: Cylinder Type Design

Featuring a slimmer height profile compared to the BT Series with no static disc, the DB Series is engineered for height-restricted heavy-load automation applications.

Cylinder-Type Indexer Features

A compact version of heavy-duty indexers, the DB Series eliminates the central stationary disc to fit height-limited applications while maintaining robust load capacity for 8+ workstations.

Available Models

Based on the distance between input and output shafts, cabinet size, and load capacity, the DB Series is available in the following models:

80DB
130DB
160DB
180DB
80DB
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 760
Allowable Axial Load of Output Shaft C2 kgf 1000
Allowable Radial Load of Input Shaft C3 kgf 350
Maximum Bending Moment of Input Shaft C4 kgf 260
Maximum Torque of Input Shaft C5 kgf-m 25
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy sec. ±30
Weight kg 35

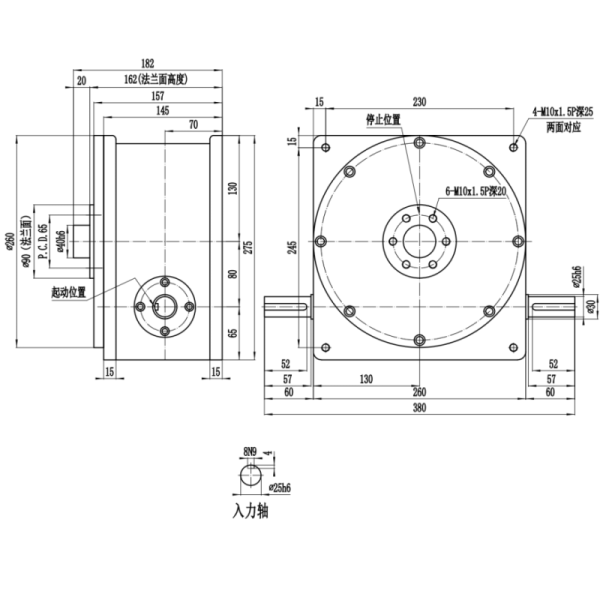

Hby-Db Series Heavy Duty Cam Indexing Table With Cylinder Type Design ±30 Arcse Positional Accuracy
130DB
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 760
Allowable Axial Load of Output Shaft C2 kgf 1000
Allowable Radial Load of Input Shaft C3 kgf 550
Maximum Bending Moment of Input Shaft C4 kgf 710
Maximum Torque of Input Shaft C5 kgf-m 100
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 80

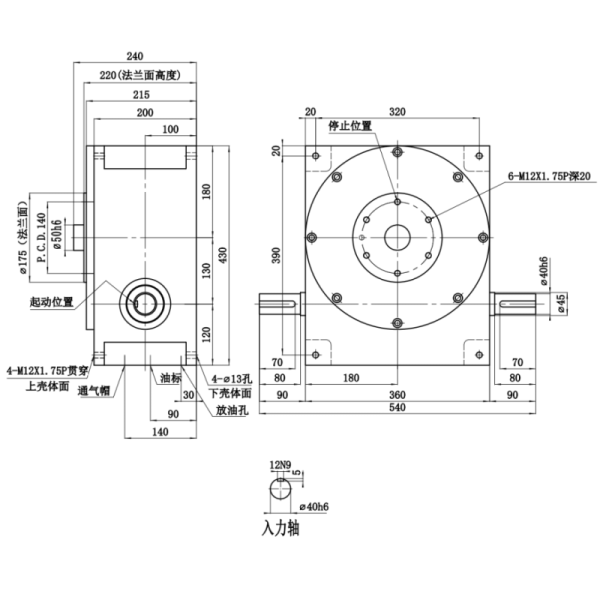

Hby-Db Series Heavy Duty Cam Indexing Table With Cylinder Type Design ±30 Arcse Positional Accuracy
160DB
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1100
Allowable Axial Load of Output Shaft C2 kgf 750
Allowable Radial Load of Input Shaft C3 kgf 550
Maximum Bending Moment of Input Shaft C4 kgf 400
Maximum Torque of Input Shaft C5 kgf-m 55
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.08
Positioning Indexing Accuracy sec. ±30
Weight kg 140

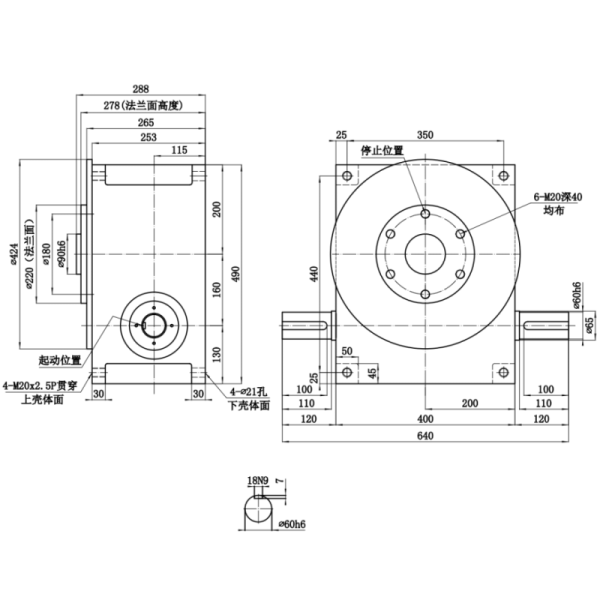

Hby-Db Series Heavy Duty Cam Indexing Table With Cylinder Type Design ±30 Arcse Positional Accuracy
180DB
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1300
Allowable Axial Load of Output Shaft C2 kgf 1600
Allowable Radial Load of Input Shaft C3 kgf 1100
Maximum Bending Moment of Input Shaft C4 kgf 1960
Maximum Torque of Input Shaft C5 kgf-m 340
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 200

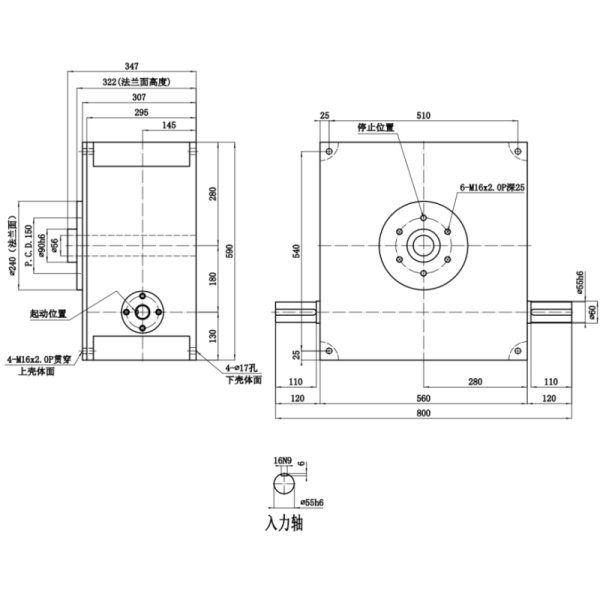

Hby-Db Series Heavy Duty Cam Indexing Table With Cylinder Type Design ±30 Arcse Positional Accuracy
