Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
Specifications
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Warranty :
1year
Payment Terms :
T/T
Supply Ability :
5000 SET/MONTH
Hardness :
50HRC~72HRC ，Customizable
Cam material :
Default 42CrMoAl，Customizable
Price :
200 $/SET~4500 $/SET
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
MOQ :
≥1000 $
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Delivery Time :
4 DAYS-20 DAYS
Dimensions :
Customizable
Longest lifespan :
60000 hours
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Packaging Details :
PLYWOOD BOX
Description

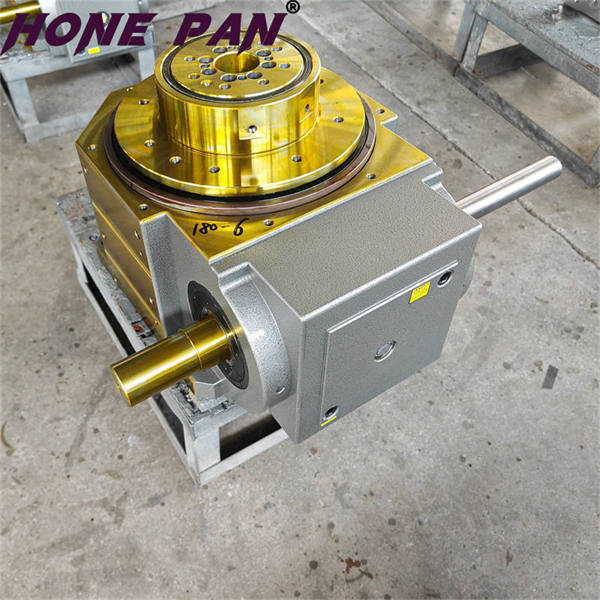

HBY-BT Series Heavy Duty Cam Indexing Table
BT Series Heavy-Duty Design

Engineered with reinforced construction similar to platen-type indexers, the BT Series delivers exceptional axial and radial load capacity for demanding industrial applications.

Key Features
  • Reinforced axial and radial load capacity

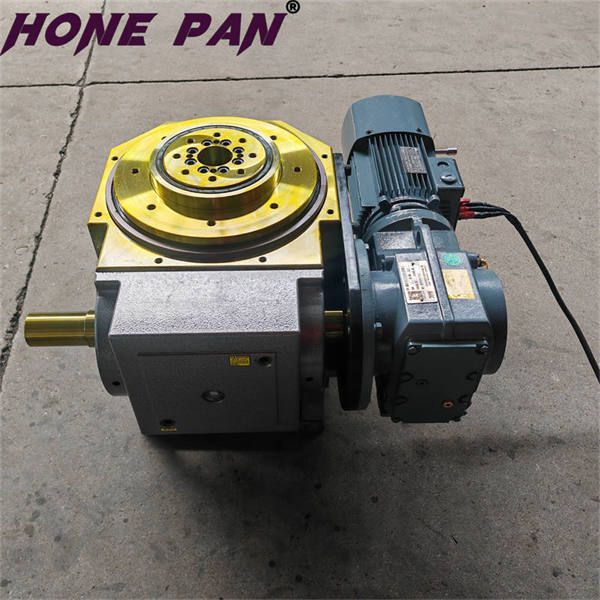

  • Optional built-in worm gear reducer

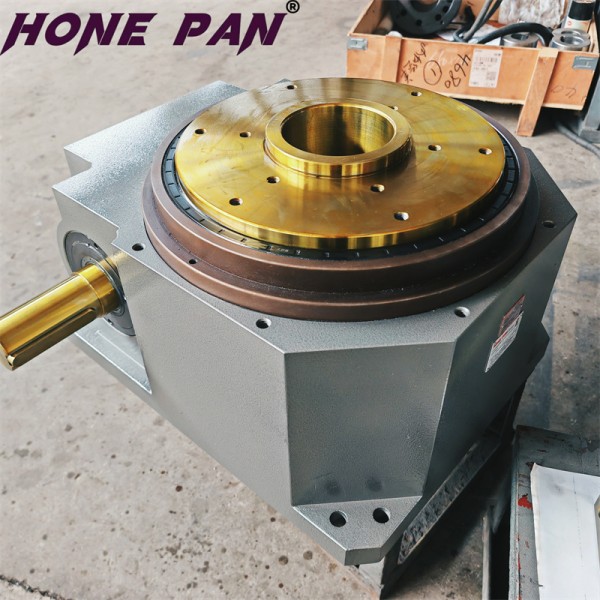

  • Large hollow shaft design
  • Heavy-duty construction for extreme conditions

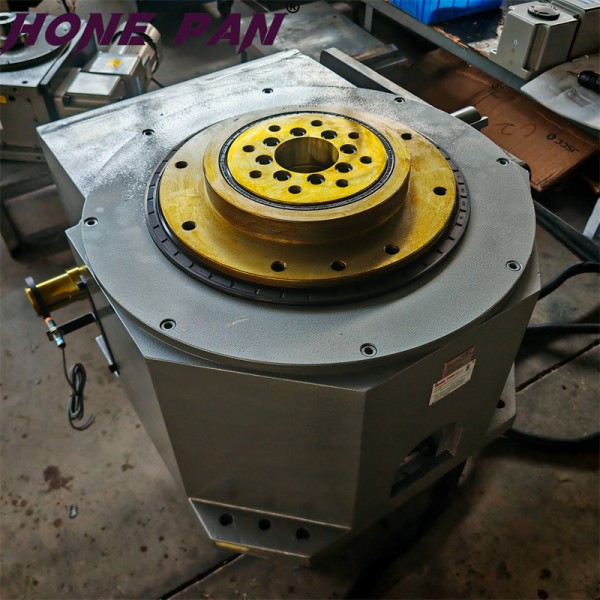

Heavy-Duty Indexer Performance

Optimized for extreme axial and radial loads, the BT Series supports optional built-in worm gear reducers and features a large hollow shaft. This robust design ensures reliable performance in the most demanding automation environments.

Ideal for glass processing machinery and heavy automation systems requiring superior load capacity and precision indexing.

According to the distance between the input shaft and the output shaft, the size of the cabinet, and the size of the load that can be withstood, it can be divided into:

130BT/150BT/160BT/180BT/225BT/300BT/500BT

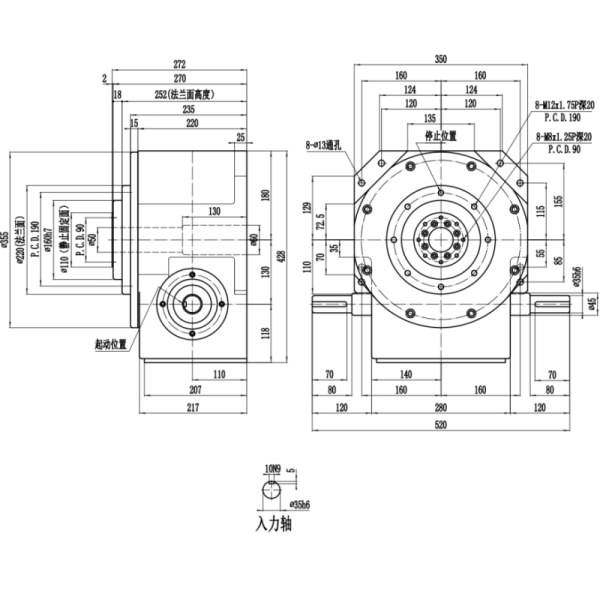

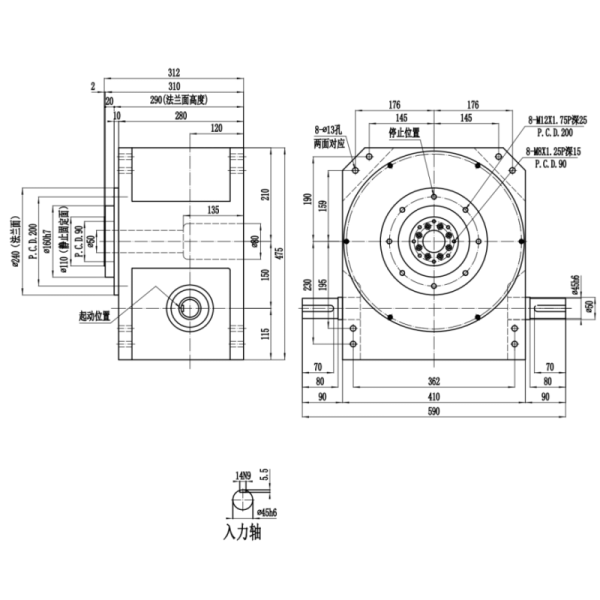

130BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1050
Allowable Axial Load of Output Shaft C2 kgf 720
Allowable Radial Load of Input Shaft C3 kgf 500
Maximum Bending Moment of Input Shaft C4 kgf 350
Maximum Torque of Input Shaft C5 kgf-m 53
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.07
Positioning Indexing Accuracy sec. ±30
Weight kg 82

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series

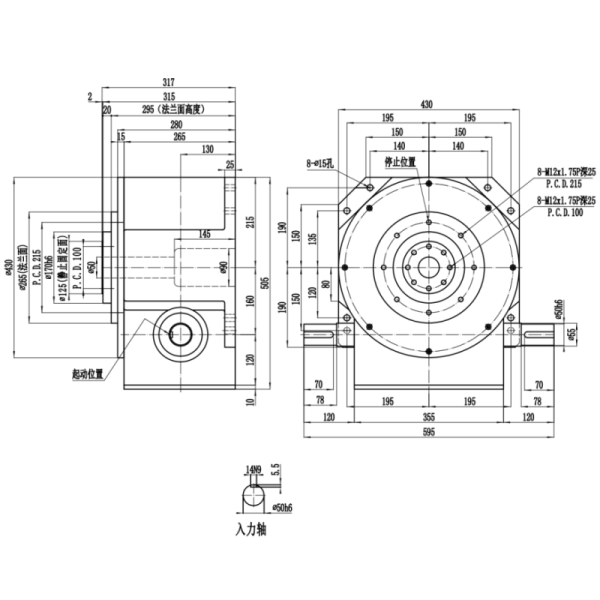

150BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1400
Allowable Axial Load of Output Shaft C2 kgf 1200
Allowable Radial Load of Input Shaft C3 kgf 1250
Maximum Bending Moment of Input Shaft C4 kgf 950
Maximum Torque of Input Shaft C5 kgf-m 380
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.55
Positioning Indexing Accuracy sec. ±30
Weight kg 300

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series

160BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1400
Allowable Axial Load of Output Shaft C2 kgf 1200
Allowable Radial Load of Input Shaft C3 kgf 1250
Maximum Bending Moment of Input Shaft C4 kgf 950
Maximum Torque of Input Shaft C5 kgf-m 380
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.55
Positioning Indexing Accuracy sec. ±30
Weight kg 300

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series

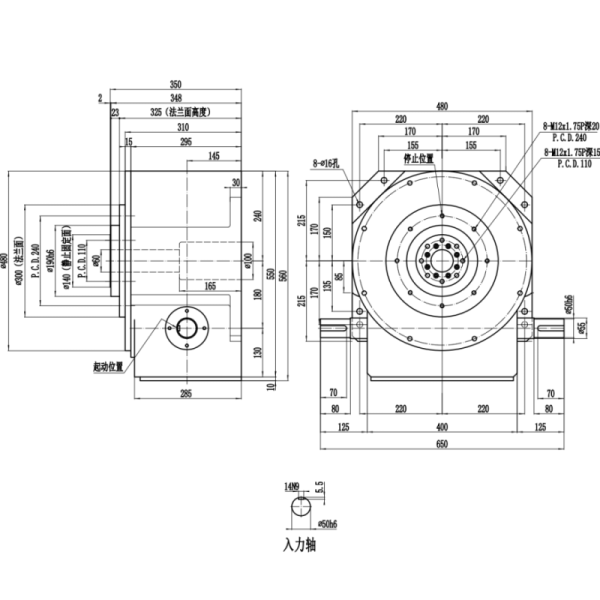

180BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1950
Allowable Axial Load of Output Shaft C2 kgf 1520
Allowable Radial Load of Input Shaft C3 kgf 1570
Maximum Bending Moment of Input Shaft C4 kgf 1130
Maximum Torque of Input Shaft C5 kgf-m 460
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.62
Positioning Indexing Accuracy sec. ±30
Weight kg 420

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series

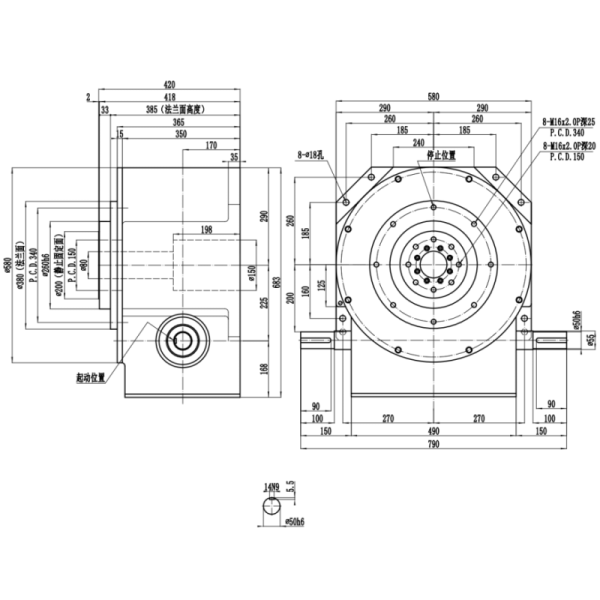

225BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 2500
Allowable Axial Load of Output Shaft C2 kgf 1800
Allowable Radial Load of Input Shaft C3 kgf 1900
Maximum Bending Moment of Input Shaft C4 kgf 2250
Maximum Torque of Input Shaft C5 kgf-m 670
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.86
Positioning Indexing Accuracy sec. ±30
Weight kg 490

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series

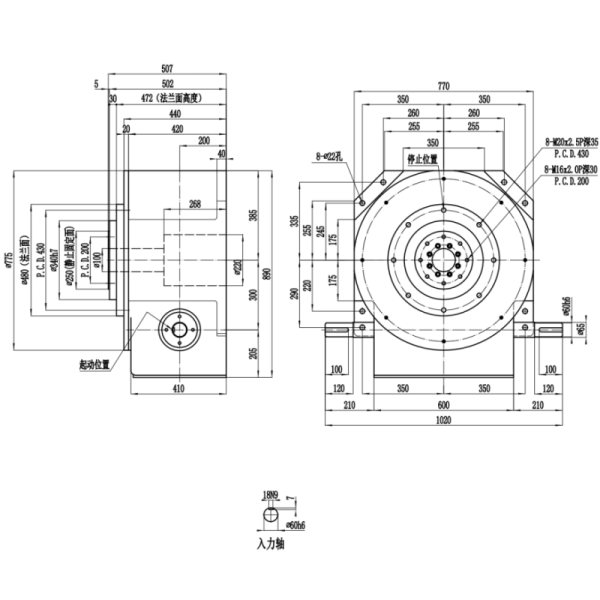

300BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 4500
Allowable Axial Load of Output Shaft C2 kgf 3300
Allowable Radial Load of Input Shaft C3 kgf 2800
Maximum Bending Moment of Input Shaft C4 kgf 3800
Maximum Torque of Input Shaft C5 kgf-m 1000
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.7
Positioning Indexing Accuracy sec. ±30
Weight kg 1100

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series

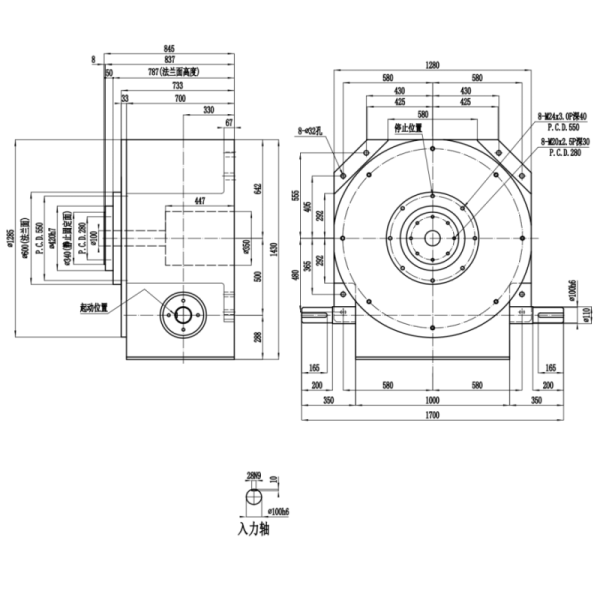

500BT
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 6600
Allowable Axial Load of Output Shaft C2 kgf 4700
Allowable Radial Load of Input Shaft C3 kgf 3300
Maximum Bending Moment of Input Shaft C4 kgf 4500
Maximum Torque of Input Shaft C5 kgf-m 1400
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 10.27
Positioning Indexing Accuracy sec. ±30
Weight kg 3500

Customizable Large Hollow Shaft Cam Indexing Drive HBY-BT Series
