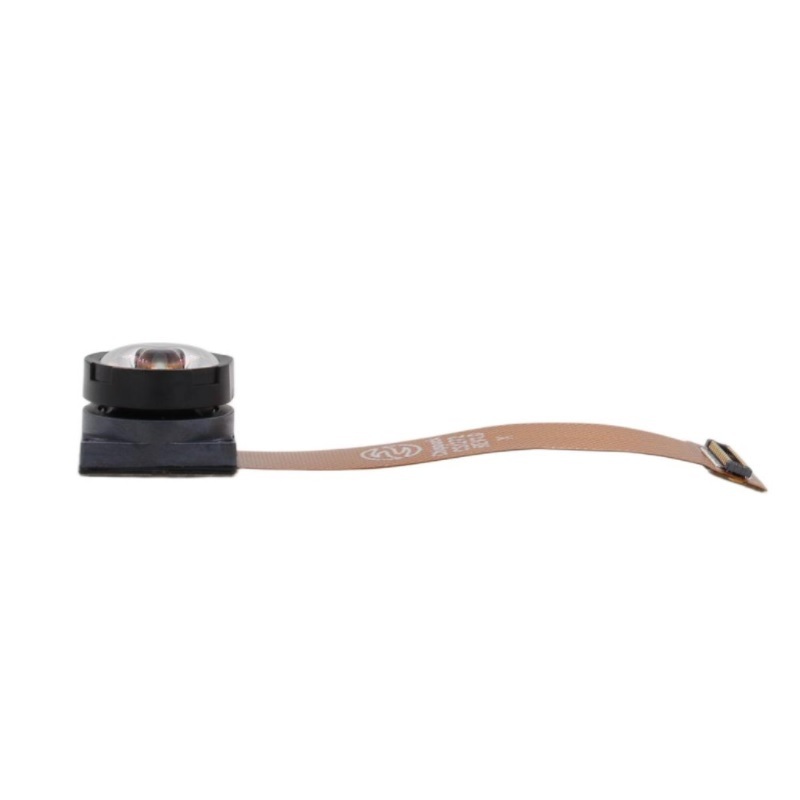

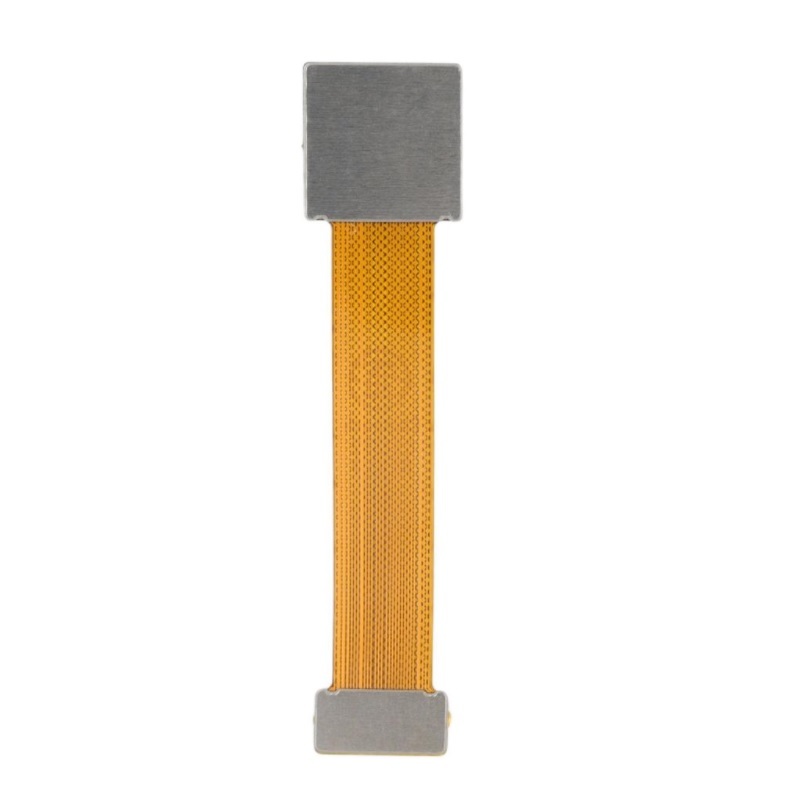

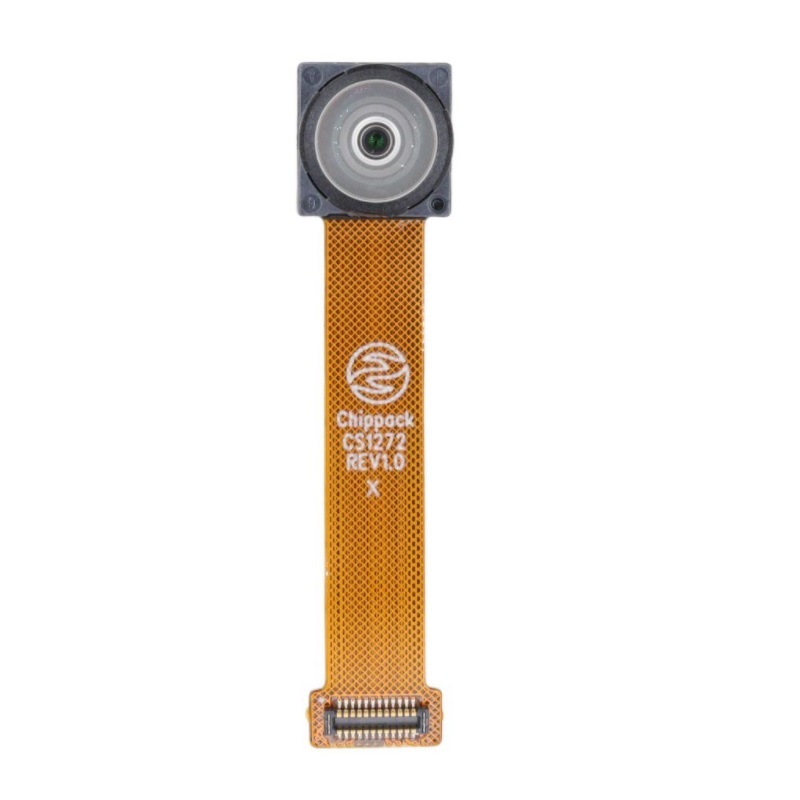

OV OV9282 MONO Global Shutter Camera Module , Machine Vision , AR / VR , QR Code , Customization Services Available .

1.Basic Parameters:

- Resolution: 1280 (H) × 800 (V), 1 MP; supports multi-resolution cropping output and offers excellent high-speed imaging performance.
- Pixel dimensions: 3.0 μm (H) × 3.0 μm (V), featuring OmniPixel®3-GS's proprietary global shutter pixel technology with ample per-pixel light-sensitive area, delivering optimal balance between image clarity and sensitivity while effectively suppressing motion blur.
- Optical format: 1/4 inch, featuring a compact imaging target surface ideal for miniaturized lenses and compact module designs, making it suitable for portable devices and embedded vision systems.
- Power Supply Voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-30°C to 85°C, providing a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts while reducing power consumption.

- Utilizes OmniPixel®3-GS pixel technology with industry-leading near-infrared quantum efficiency, enabling low-light imaging without additional illumination (minimum illuminance of 1 lux); combined with a monochromatic imaging design that eliminates color interference, delivers higher image contrast and significantly improved clarity in infrared lighting scenarios, making it ideal for 24/7 visual inspection applications.
- Integrates functions including dynamic bad pixel correction, automatic black level calibration, frame synchronization, ROI (region of interest) cropping, pixel merging, and image mirroring; supports rapid parameter switching between frames, enabling dynamic mode switching with a unique configuration per frame without requiring an external image processing chip, thereby reducing development costs and hardware footprint.

- OV9282 Camera Module: Compatible with standard modules for various lens configurations such as 150mm, meeting diverse customer requirements.

3. Application Areas:

Used in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client requirements, delivering tailored solutions that meet individual needs.
