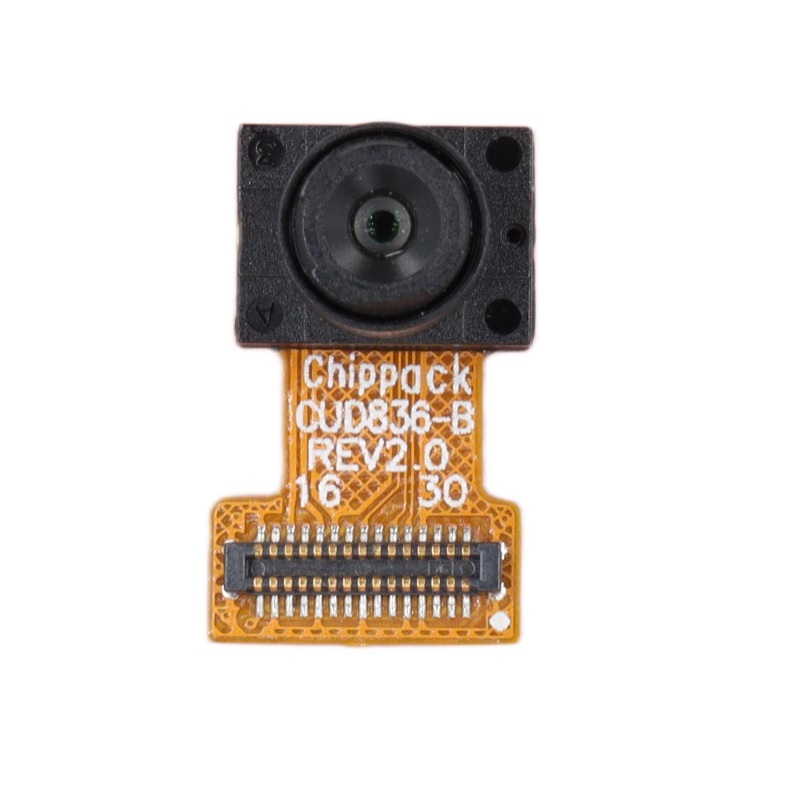

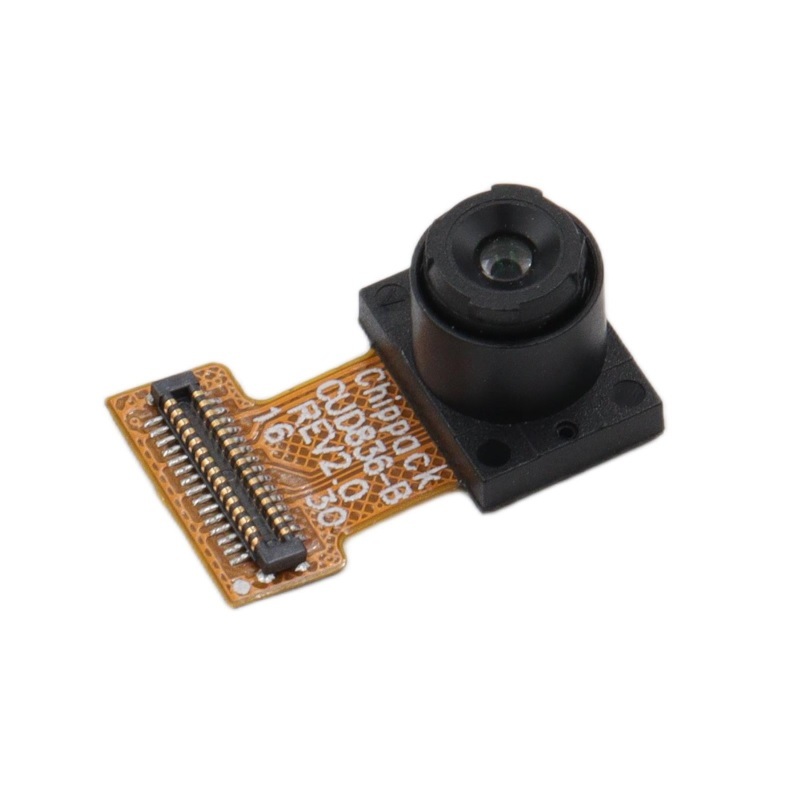

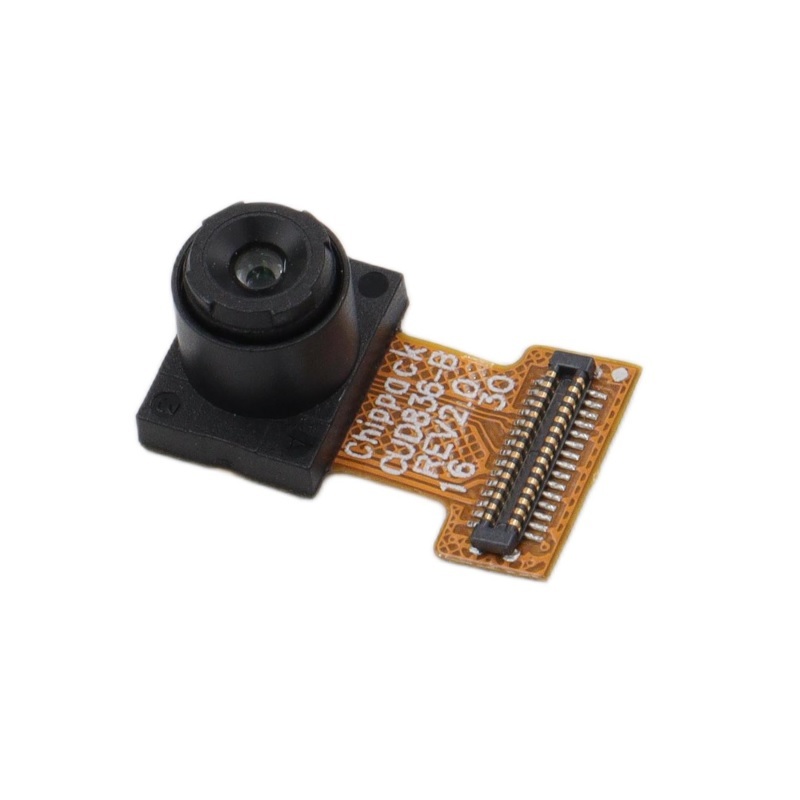

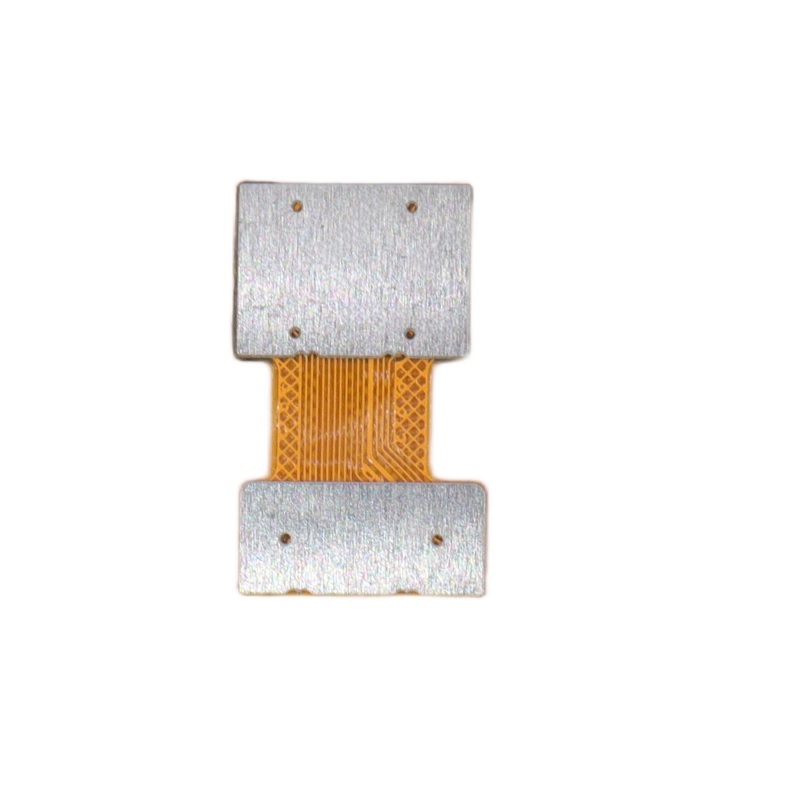

OV OV9281 MONO Global Shutter Camera Module , Machine Vision , AR/VR , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1296 (H) × 816 (V), 1MP. Supports multiple resolution outputs, which can be flexibly switched according to application scenarios to meet different clarity requirements.

- Pixel Size: 3.0μm (H) × 3.0μm (V). Adopting OmniPixel®3-GS pixel technology, the relatively large pixel size effectively improves the sensor's light sensitivity and signal-to-noise ratio, ensuring clear image capture even under complex lighting conditions.

- Optical Format: 1/4 inch. Featuring a miniaturized optical design, it is compatible with various small lenses, facilitating integration into space-constrained devices while balancing imaging performance and equipment miniaturization.

- Supply Voltage: Core voltage 1.2V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under different voltage conditions, guaranteeing the sensor's reliability.

- Temperature Range: Operating temperature from -30℃ to 85℃. With a wide operating temperature range, it can adapt to diverse working environments.

2. Technical Features:

- Global Shutter Technology: The global shutter design effectively eliminates motion blur and lighting artifacts while reducing lighting power consumption.

- Supports flexible image control and output configuration, equipped with Automatic Black Level Calibration (ABLC) to automatically optimize image brightness uniformity. Supports programmable control including frame rate, mirroring, flipping, cropping, windowing and other parameter adjustments. Also supports 8/10-bit RAW format output to suit different image processing needs, as well as 2×2 monochrome binning and horizontal/vertical 2:1/4:1 monochrome downsampling functions.

- Equipped with advanced OmniPixel®3-GS pixel technology combined with a Back-Side Illuminated (BSI) structure, significantly improving near-infrared (NIR) quantum efficiency and light sensitivity. It features a dynamic range of 68dB and a signal-to-noise ratio of 38dB, maintaining excellent imaging quality even in low-light environments, effectively reducing noise and enhancing image purity. Adopting Chip Scale Package (CSP), it is compact in size, easy to integrate into small devices, and features high reliability and stability.

- OV9281 Camera Module: Compatible with standard modules configured with different lenses such as 49° to meet diverse customer requirements.

3. Application Fields:

Applied in virtual reality/augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced according to customer requirements, providing tailor-made products that meet their specific needs.
