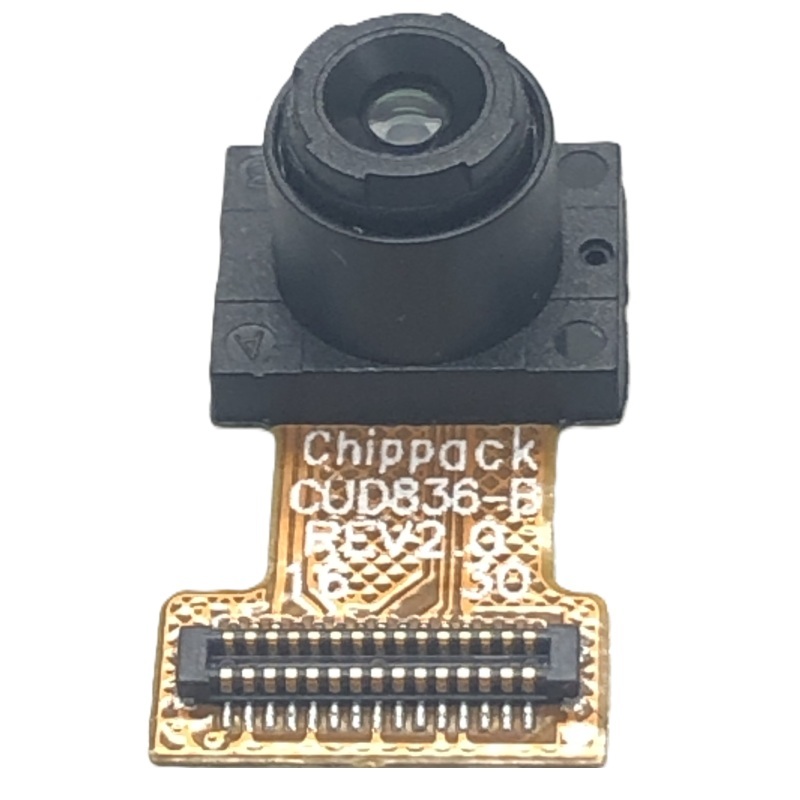

1 MP MONO Global 49 - Degree View Shutter Camera Module OV9282 Sensor For Machine Vision , Customization Services Available .

Basic Introduction:

• Image Sensor Specifications: OMNIVISION uses a 1/4-inch optical format with a pixel size of 3μm × 3μm, 1 million effective pixels, and a maximum output resolution of 1280 × 800 pixels.
• Interface Type: Typically features a MIPI CSI-2 interface for high-speed data transmission, and also supports an I2C interface for controlling and configuring the camera module.
• Application Areas: OMNIVISION is widely used in QR code scanning, industrial automation, drone obstacle avoidance, augmented reality (AR), and virtual reality (VR) fields.

Features:

• High Frame Rate: OMNIVISION achieves a frame rate of 120 frames per second at 1280 × 800 resolution and 180 frames per second at VGA resolution, enabling rapid capture of dynamic images, suitable for QR code scanning scenarios with high real-time requirements.
• Performance: Utilizing OmniPixel® 3-GS pixel technology, it boasts excellent near-infrared (NIR) quantum efficiency, enabling clear image capture even in low-light conditions. Its sensitivity to infrared light makes it suitable for applications such as infrared QR code scanning.
• High Dynamic Range: Equipped with High Dynamic Range (HDR) functionality, it provides more balanced exposure in complex lighting conditions, ensuring accurate QR code recognition even in strong light or backlight.
• Region of Interest (ROI): Supports ROI selection and context switching, allowing the camera settings to change rapidly and dynamically between frames. This enables focused capture and processing of the QR code's location, improving recognition efficiency.
• Multiple Output Formats: Supports 8/10-bit RAW format output, and also supports 2-lane MIPI and DVP output, facilitating connectivity and data transfer with various processors and systems.
• Automatic Calibration and Programmable Control: Features Automatic Black Level Calibration (ABLC) and supports programmable control, including frame rate, mirroring and flipping, cropping, and windowing, allowing users to flexibly configure settings according to their application needs.
• Low power consumption: It has low power consumption, with 156mW in active mode and 150μA in standby mode, making it suitable for battery-powered portable devices.
