NOUL 4Px30AWG Medical Device Cable 30V With FEP Insulation / Biocompatible PVC Jacket
NOUL 4Px30AWG Medical Device Cable 30V With FEP Insulation / Biocompatible PVC Jacket
NOUL 4Px30AWG Medical Device Cable 30V With FEP Insulation / Biocompatible PVC Jacket
NOUL 4Px30AWG Medical Device Cable 30V With FEP Insulation / Biocompatible PVC Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperaturerange :
80°C
Packing :
Packed in reels or rolls
Certification :
Reach,RoHS
Conductor :
Bare Copper / Cu55Ni45 alloy
Model Number :
NOUL
SP :
1902321
Payment Terms :
T/T,L/C,Western Union
Insulation :
FEP
Price :
To be negotiated
Jacket :
PVC
Supply Ability :
100km per day
Application :
Medical devices, Diagnostic equipment, Patient monitoring
Brand Name :
Shineplus
Name :
Medical Device Cable
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
30V
Description

NOUL 4Px30AWG Medical Device Cable with FEP Insulation and Biocompatible PVC Jacket

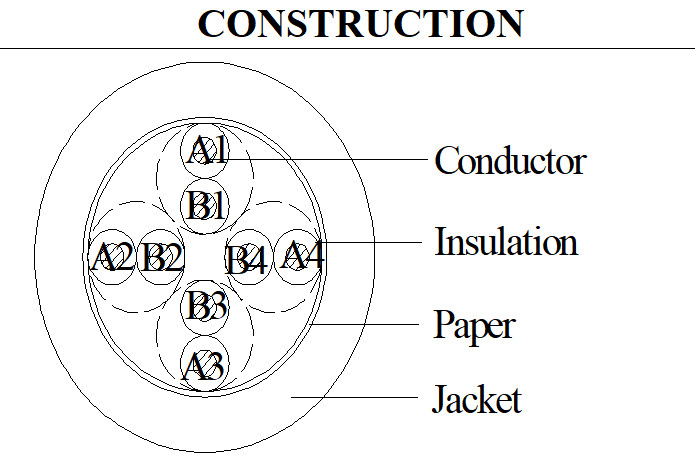

ITEM A:30AWG B:30AWG
CONDUCTOR Material Bare Copper Cu55Ni45 alloy
Size 1/0.254mm 1/0.254mm
O.D.(Ref) 0.254mm 0.254mm
INSULATION Material FEP FEP
Min.average thickness 0.12mm 0.12mm
Min.thickness at any point 0.08mm 0.08mm
O.D. 0.50±0.05mm 0.50±0.05mm
TWISTED O.D.(Ref) 1.00mm
CABLING Assembly Paper,≥25%
Assembly 4Px30AWG
JACKET Material PVC
Min.average thickness 0.60mm
Min.thickness at any point 0.48mm
O.D. 3.80±0.20mm
Product Description
Products are widely used for medical wire harness, suitable for connecting medical equipment such as analytical instruments.
Key Features
  • Application: Internal wiring or external interconnection of electronic equipment
  • Application standard: According to customer requirement
  • Excellent insulation performance with stable chemical properties
  • FEP insulation
  • Biocompatible and environmentally friendly
Technical Parameters

Rated temperature: 80ºC

Rated Voltage: 30V

Max. DC conductor resistance(20℃):A:0.35Ω/m B:10Ω/m

Voltage withstand test:AC 1.0kV/1min

Leakage current:≤0.5mA

Min. insulation resisitance(20℃):25MΩ·M DC 500V

Physical Properties

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
