UL21317 12C×26AWG+12Coax×32AWG Silver Plated Copper Cable With FEP Insulation / PU Jacket
UL21317 12C×26AWG+12Coax×32AWG Silver Plated Copper Cable With FEP Insulation / PU Jacket
UL21317 12C×26AWG+12Coax×32AWG Silver Plated Copper Cable With FEP Insulation / PU Jacket
UL21317 12C×26AWG+12Coax×32AWG Silver Plated Copper Cable With FEP Insulation / PU Jacket
Specifications
Model Number :
UL21317
Conductor :
Silver plated copper
Payment Terms :
T/T,L/C,Western Union
Application :
Medical devices, Diagnostic equipment, Patient monitoring
Price :
To be negotiated
Insulation :
FEP
Supply Ability :
100km per day
Packing :
Packed in reels or rolls
Brand Name :
Shineplus
Name :
Silver Plated Copper Cable
MOQ :
1000m
Delivery Time :
3-4 Weeks
Jacket :
PU
SP :
1701189
Certification :
Reach,RoHS
Voltage :
150V
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Temperaturerange :
80°C
Description

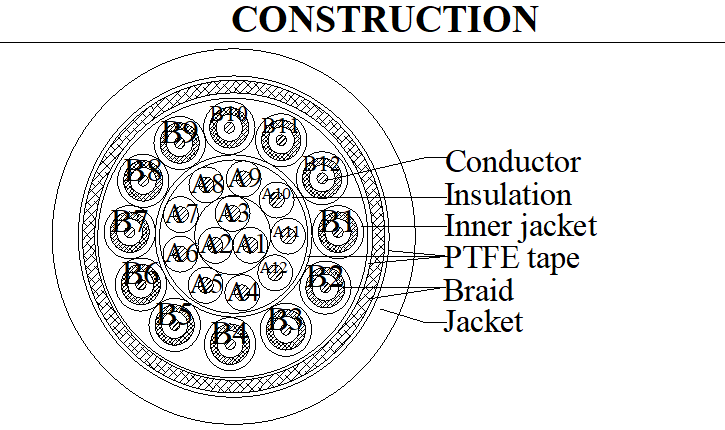

UL21317 12C×26AWG+12Coax×32AWG Medical Device Cable with FEP Insulation and PU Jacket

ITEM A:12C×26AWG B:12Coax×32AWG
CONDUCTOR Material Silver plated copper
Size 19/0.10±0.008mm 1/0.20±0.008mm
O.D.(Ref) 0.50mm 0.20mm
INSULATION Material FEP FEP
Min.average thickness 0.15mm 0.20mm
Min.thickness at any point 0.12mm 0.16mm
O.D. 0.80±0.05mm 0.60±0.05mm
BRAID Material / Silver plated copper
Size / 0.08mm(93%,min)
O.D. / 0.90±0.10mm
INNER JACKET Material / FEP
Average thickness / 0.10mm
O.D. / 1.18±0.08mm
CABLING 1 Material 1 PTFE tape /
Material 2 PTFE tape /
Assembly 12C×26AWG /
CABLING 2 Material PTFE tape
Assembly 12C×26AWG+12Coax×32AWG
BRAID Material Tinned copper
Size 0.12±0.008mm(Min.93%)
WRAPPING Material PTFE tape
JACKET Material PU
Min.average thickness 0.90mm
Min.thickness at any point 0.72mm
O.D. 8.70±0.30mm
Product Description
Products are widely used for medical wire harness, suitable for connecting medical equipment such as analytical instruments.
Key Features
  • Application: Internal wiring or external interconnection of electronic equipment
  • Application standard: According to customer requirement
  • Excellent insulation performance with stable chemical properties
  • FEP insulation
  • Biocompatible and environmentally friendly
Technical Parameters

Rated temperature: -40~80ºC

Rated Voltage: 150V

Max. DC conductor resistance(20℃):A: :140Ω/km B:560Ω/km

Voltage withstand test:AC 1.0kV/1min

Leakage current:≤0.5mA

Min. insulation resisitance(20℃):25MΩ·M DC 500V

Reference Propagation time:4.9ns/m

Min.insulation resistance(A):500MΩ.km

Min.insulation resistance(B):100MΩ.km

Physical Properties

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
