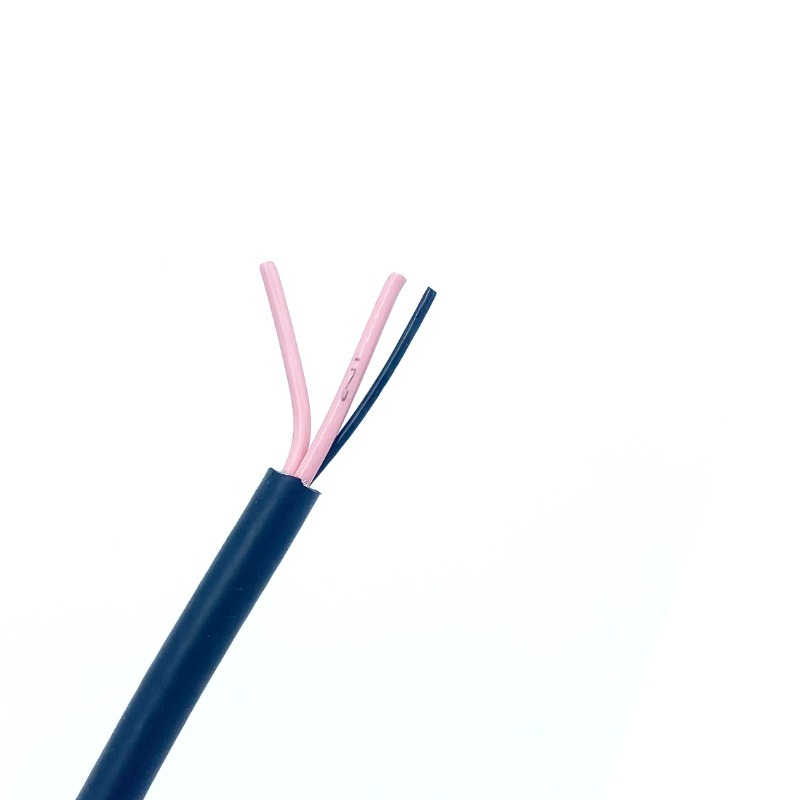

3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V
3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V
3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V
3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V
Specifications
Conductor :
Tinned Copper Stranded
MOQ :
1000m
Application :
Medical Device、Medical Wire Harness
Voltage :
300V
SP :
2001534
Model Number :
NOUL
Temperature :
80℃
Packing :
Packed in rolls or reels
Brand Name :
Shineplus
Name :
Medical Device Cable
Certification :
RoHS Reach
Packaging Details :
Packed in rolls or reels
Insulation :
FEP
Supply Ability :
100km per day
Delivery Time :
3-4 Weeks
Payment Terms :
T/T,L/C,Western Union
Jacket :
PVC
Place of Origin :
China
Price :
To be negotiated
Description

3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V

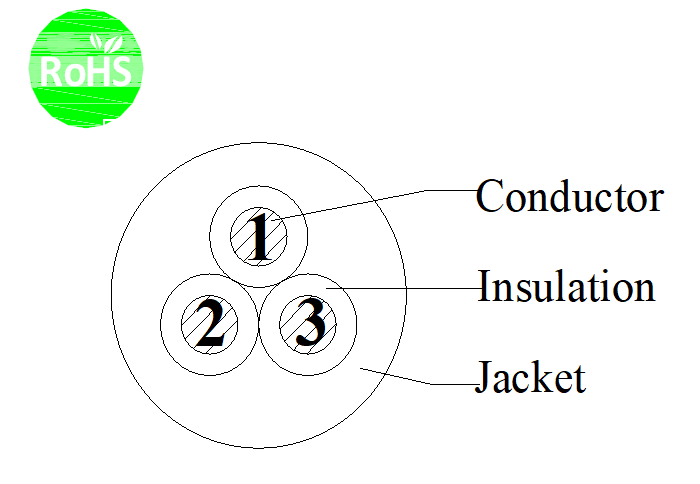

Construction
Conductor Tinned Copper Stranded
Cross section 28AWG
Construction 19/0.08mm
Strand Dia. 0.40mm(Ref.)
Insulation FEP
Nom.Thickness 0.30mm
Min.Thickness 0.24mm
Insulation Dia. 1.00±0.10mm
Insulation colour 1.white,2.green,3.red
Assembly 3C×28AWG
Jacket PVC
Nom.Thickness 0.40mm
Min.Thickness 0.32mm
O.D. 3.05±0.15mm
Colour black

Application: Medical wire harness,Medical Device

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):239Ω/km
Dielectric Strength AC:5.0kV/1min

Biocompatible and environment friendly
