7Cx28AWG Copper Wire Tinned Copper Stranded Cable With TPE Insulation / TPE Jacket 300V 105℃
7Cx28AWG Copper Wire Tinned Copper Stranded Cable With TPE Insulation / TPE Jacket 300V 105℃
7Cx28AWG Copper Wire Tinned Copper Stranded Cable With TPE Insulation / TPE Jacket 300V 105℃
7Cx28AWG Copper Wire Tinned Copper Stranded Cable With TPE Insulation / TPE Jacket 300V 105℃
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
105℃
Certification :
RoHS Reach
Jacket :
TPE
Model Number :
UL20327
Insulation :
TPE
Supply Ability :
100km per day
SP :
2103677
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
300V
Description

UL20327 7Cx28AWG Industrial Cable Tinned Copper Stranded with TPE Insulation and TPE Jacket 300V 105℃

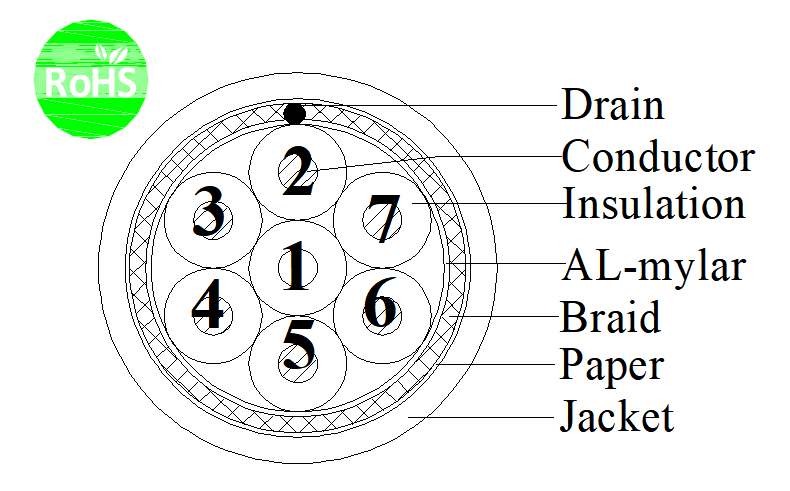

Construction
Conductor Tinned copper stranded
Cross section 28AWG
Construction 7/0.127±0.008mm
Strand Dia. 0.38mm
Insulation TPE
Nom.Thickness 0.20mm
Min.Thickness 0.18mm
Insulation Dia. 0.80±0.05mm
Insulation colour 1.black 2.brown 3.red 4.orange 5.yellow 6.green 7.blue
Filler None
Material Al-mylar(foil face out),≥25%
Drain wire Tinned copper stranded ,7/0.127±0.008mm
Assembly 7C×28AWG+AE
Braid Tinned copper,16/6/0.10±0.008mm,≥85%
Material Paper,≥25%
Jacket TPE
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 5.00±0.20mm
Colour black(BK001)

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):239Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥8.27MPa

Elongation:≥200%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

Cold bend(-40±2℃*4H):No crack

Flame test:VW-1
