UL2517 6C×28AWG Flexible Industrial Cable 300V 105℃ For Comsumer Electrics
UL2517 6C×28AWG Flexible Industrial Cable 300V 105℃ For Comsumer Electrics
UL2517 6C×28AWG Flexible Industrial Cable 300V 105℃ For Comsumer Electrics
UL2517 6C×28AWG Flexible Industrial Cable 300V 105℃ For Comsumer Electrics
Specifications
Model Number :
UL2517
Conductor :
Tinned Copper Stranded
Price :
To be negotiated
Temperature :
105℃
Supply Ability :
100km per day
Packing :
Packed in Rolls or Reels
Brand Name :
Shineplus
Name :
Industrial Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Application :
Industrial,comsumer Electrics,etc
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
300V
SP :
2100560
Certification :
RoHS Reach
Insulation :
PVC
Place of Origin :
China
Jacket :
PVC
Packaging Details :
Packed in rolls or reels
Description

UL2517 6C×28AWG Industrial Cable Tinned Copper Stranded with PVC Insulation and PVC Jacket 300V 105℃

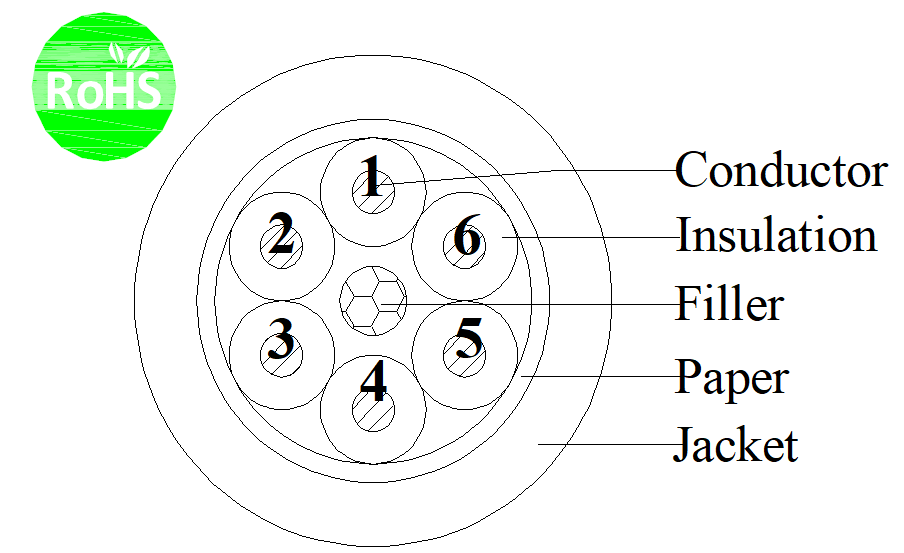

Construction
Conductor Tinned copper stranded
Cross section 28AWG
Construction 7/0.127mm
Strand Dia. 0.38mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 0.90±0.05mm
Insulation colour 1.brown 2.white 3.blue 4.black 5.green 6.yellow
Filler Optional
Material Paper
Assembly 6C×28AWG+P
Jacket PVC(UV&Oil resistance)
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 4.60±0.20mm
Colour per request

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):23.2Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1

UL2517 6C×28AWG Flexible Industrial Cable 300V 105℃ For Comsumer Electrics
