UL2854 3C×28AWG Industrial Wire Cable 30V 80℃ Bare Copper Cable
UL2854 3C×28AWG Industrial Wire Cable 30V 80℃ Bare Copper Cable
UL2854 3C×28AWG Industrial Wire Cable 30V 80℃ Bare Copper Cable
UL2854 3C×28AWG Industrial Wire Cable 30V 80℃ Bare Copper Cable
Specifications
Model Number :
UL2854
Conductor :
Tinned Copper Stranded
Supply Ability :
100km per day
Packing :
Packed in Rolls or Reels
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
30V
SP :
2102410
Certification :
RoHS Reach
Insulation :
PVC
Brand Name :
Shineplus
Name :
Bare Copper Cable
Payment Terms :
T/T,L/C,Western Union
Application :
Industrial,comsumer Electrics,etc
Price :
To be negotiated
Temperature :
80℃
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Jacket :
PVC
Description

UL2854 3C×28AWG Industrial Cable Tinned Copper Stranded with PVC Insulation and PVC Jacket 30V 80℃

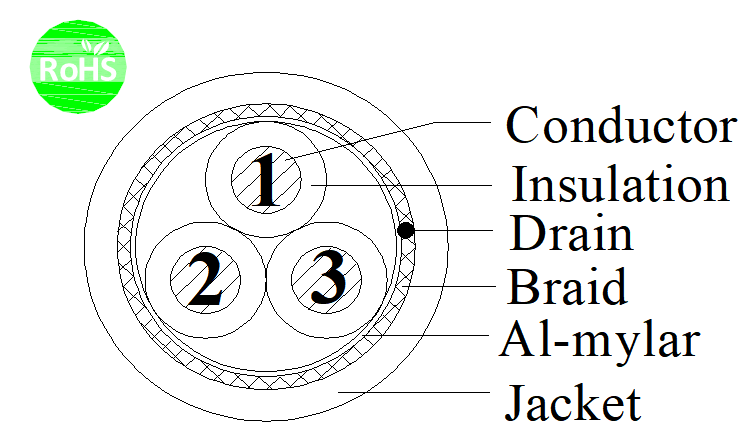

Construction
Conductor Tinned copper stranded
Cross section 28AWG
Construction 7/0.127mm
Strand Dia. 0.38mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 0.90±0.05mm
Insulation colour 1.black 2.white 3.red
Filler Optional
Material Al-mylar(foil face out) ≥25%
Drain Tinned copper stranded,7/0.127mm
Assembly 3C×28AWG+AE
Braid Tinned copper,0.10mm Min. 80%
Jacket PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Outer Dia. 3.20±0.20mm
Colour black

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:80℃

Voltage rating:30V

Max.conductor DC resistance(20℃):239Ω/km

Dielectric Strength AC:0.5kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1

UL2854 3C×28AWG Industrial Wire Cable 30V 80℃ Bare Copper Cable
