2C×18 AWG Stranded Copper Wire , Industrial Flexible Cable UL2464
2C×18 AWG Stranded Copper Wire , Industrial Flexible Cable UL2464
2C×18 AWG Stranded Copper Wire , Industrial Flexible Cable UL2464
2C×18 AWG Stranded Copper Wire , Industrial Flexible Cable UL2464
Specifications
Brand Name :
Shineplus
Model Number :
UL2464
Voltage :
300V
SP :
2102869
MOQ :
1000m
Price :
To be negotiated
Insulation :
PVC
Conductor :
Tinned Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Application :
Industrial,comsumer Electrics,etc
Certification :
RoHS Reach
Place of Origin :
China
Temperature :
80℃
Packing :
Packed in rolls or reels
Supply Ability :
100km per day
Packaging Details :
Packed in rolls or reels
Name :
18 AWG Stranded Copper Wire
Delivery Time :
3-4 Weeks
Jacket :
PVC
Description

UL2464 2C×18AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket

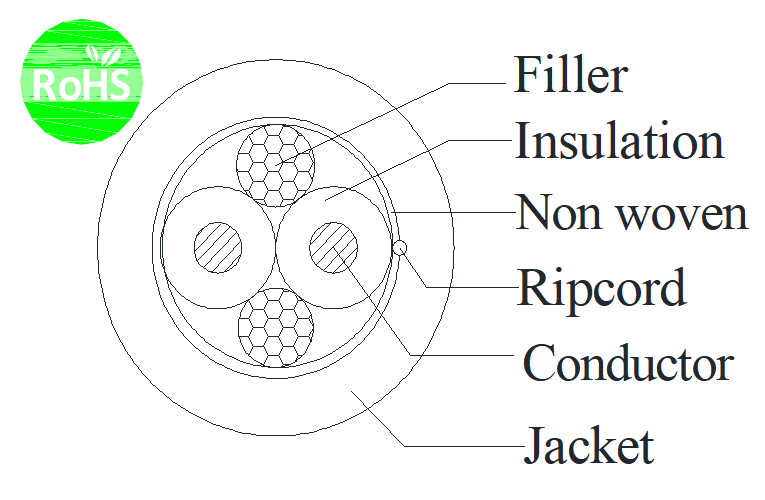

Construction
Conductor Tinned Copper Stranded
Cross section 18AWG
Construction 16/0.254mm
Strand Dia. 1.17mm
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 2.0±0.10mm
Insulation colour 1.black 2.red
Filler Optional
Material Non woven,≥25%
Assembly 2C×18AWG+W
Ripcord Nylon
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 5.90±0.30mm
Colour Per request

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):23.2Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2464
RoHS

VW-1

FT1
