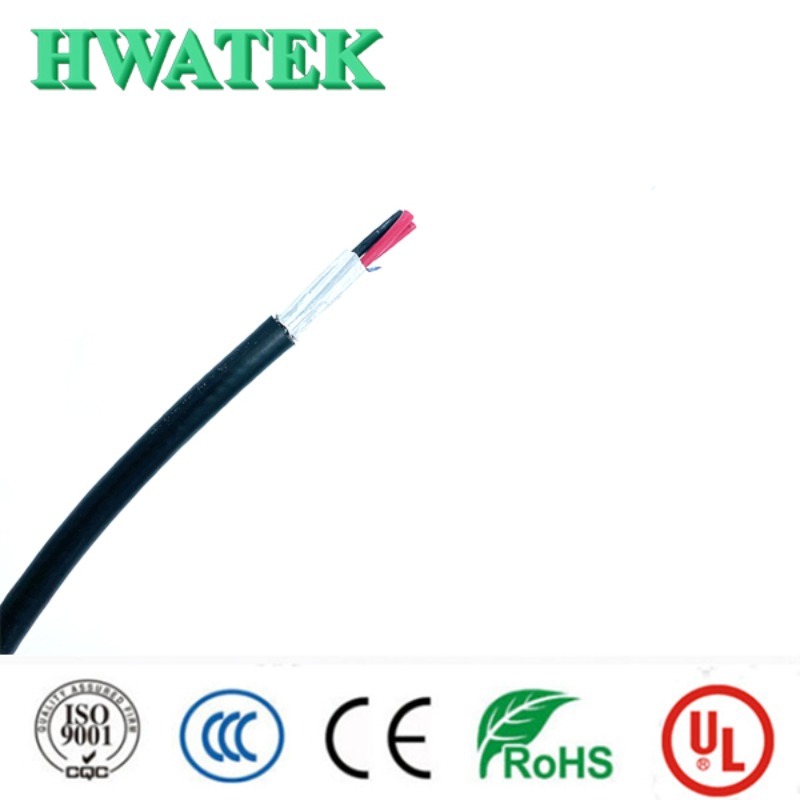

UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket
UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket
UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket
UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket
Specifications
Conductor :
Bare Copper Stranded
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Voltage :
300V
SP :
2602377
Delivery Time :
3-4 Weeks
Jacket :
PVC
Model Number :
UL2661
Temperature :
90℃
Packing :
Packed In Reels
Payment Terms :
T/T,L/C,Western Union
Certification :
RoHS Reach
Place of Origin :
China
Supply Ability :
100km per day
Insulation :
PVC
Packaging Details :
Packed in rolls or reels
MOQ :
1000m
Name :
Industrial Flexible Cable
Brand Name :
Shineplus
Description

UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable with PVC Insulation and PVC Jacket

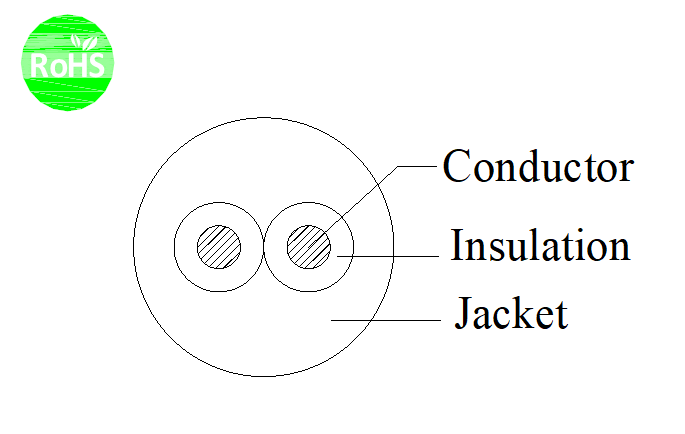

Construction
Conductor Bare copper stranded
Cross section 20AWG
Construction 26/0.16mm
Strand Dia. 0.94mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.50±0.10mm
Insulation colour 1.red 2.black
Assembly 2C×20AWG
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 4.60±0.20mm
Colour Black

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:121±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 90℃
Max.conductor DC resistance(20℃):34.6Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2661
RoHS
