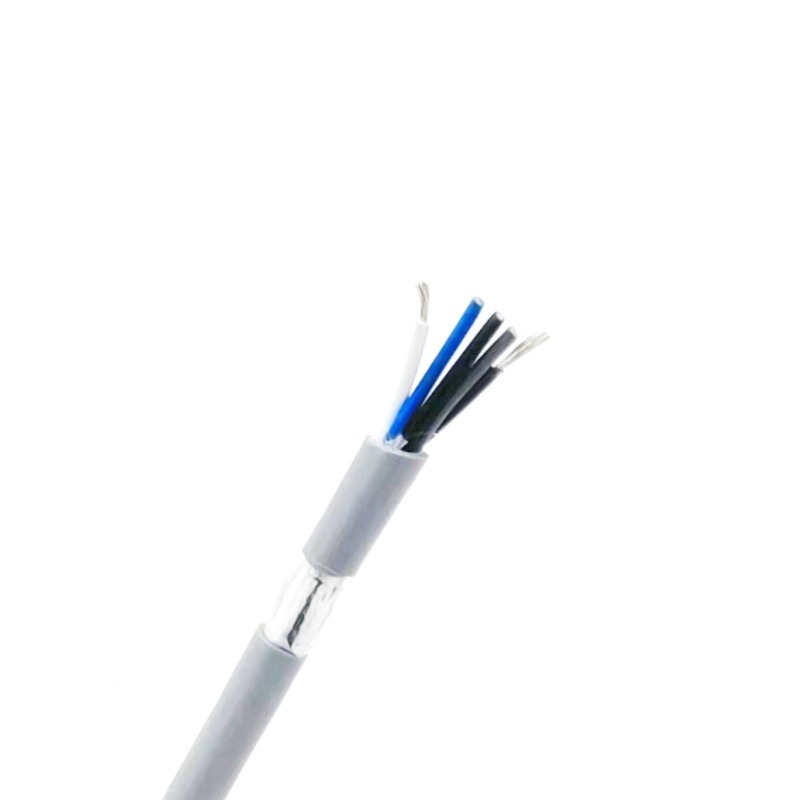

6Cx20AWG+W UL2517 Cable , Stranded Tinned Copper Wire With PVC Jacket PVC Insulation
6Cx20AWG+W UL2517 Cable , Stranded Tinned Copper Wire With PVC Jacket PVC Insulation
6Cx20AWG+W UL2517 Cable , Stranded Tinned Copper Wire With PVC Jacket PVC Insulation
6Cx20AWG+W UL2517 Cable , Stranded Tinned Copper Wire With PVC Jacket PVC Insulation
Specifications
Jacket :
PVC
Place of Origin :
China
Packing :
Packed In Reels
Application :
Industrial,comsumer Electrics,etc
SP :
2102374
Model Number :
UL2517
Temperature :
105℃
Delivery Time :
3-4 Weeks
Brand Name :
Shineplus
Supply Ability :
100km per day
Payment Terms :
T/T,L/C,Western Union
Insulation :
PVC
Certification :
RoHS Reach
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Price :
To be negotiated
MOQ :
1000m
Voltage :
300V
Description

UL2517 6Cx20AWG+W Industrial Cable Tinned Copper Stranded with PVC Jacket PVC Insulation VW-1

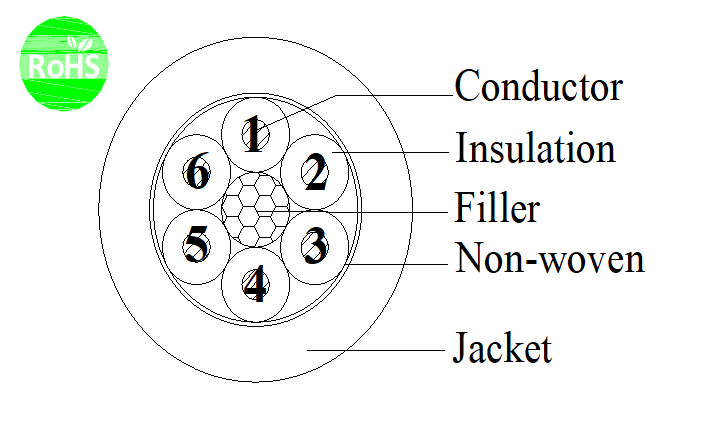

Construction
Conductor Tinned copper stranded
Cross section 20AWG
Construction 26/0.16mm
Strand Dia. 0.94mm
Insulation PVC
Nom.Thickness 0.28mm
Min.Thickness 0.22mm
Insulation Dia. 1.70±0.10mm
Insulation colour 1.black 2.brown 3.red 4.orange 5.yellow 6.green
Filler Optional
Material Non-woven,≥25%
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 7.20±0.25mm
Colour Per request

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):36.7Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1
