UL20276 3C×26AWG Industrial Cable Tinned Copper Stranded Cable 30V 80℃
UL20276 3C×26AWG Industrial Cable Tinned Copper Stranded Cable 30V 80℃
UL20276 3C×26AWG Industrial Cable Tinned Copper Stranded Cable 30V 80℃
UL20276 3C×26AWG Industrial Cable Tinned Copper Stranded Cable 30V 80℃
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
UL20276
Insulation :
PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Supply Ability :
100km per day
SP :
2301550
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Place of Origin :
China
Voltage :
30V
Packaging Details :
Packed in rolls or reels
Description

UL20276 3C×26AWG Industrial Cable Tinned Copper Stranded with PVC Insulation and PVC Jacket 30V 80℃

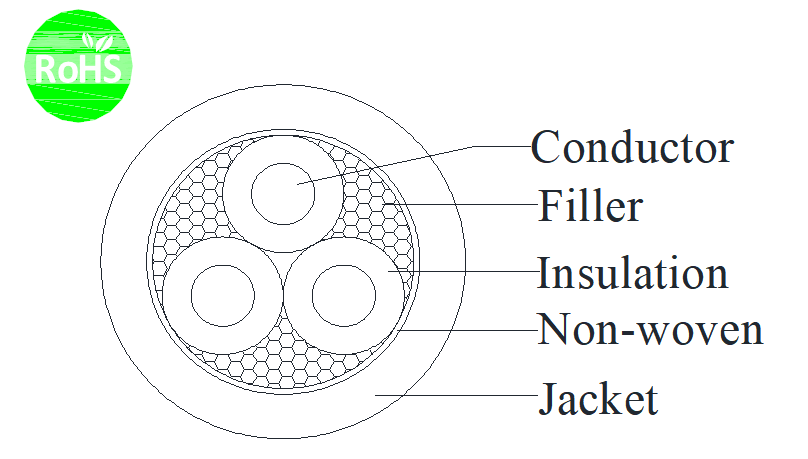

Construction
Conductor Tinned copper stranded
Cross section 26AWG
Construction 26/0.08mm
Strand Dia.(Ref.) 0.47mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.00±0.10mm
Insulation colour white,brown,green
Filler Optional
Material Non-woven
Assembly 3C×26AWG+W
Jacket PVC
Nom.Thickness 0.51mm
Min.Thickness 0.43mm
Outer Dia. 3.80±0.20mm
Colour Per request

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:80℃

Voltage rating:30V

Max.conductor DC resistance(20℃):150Ω/km

Dielectric Strength AC:0.5kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1
