3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517
3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517
3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517
3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517
Specifications
Voltage :
300V
SP :
2101320
Certification :
RoHS Reach
Place of Origin :
China
Price :
To be negotiated
Insulation :
PVC
Brand Name :
Shineplus
MOQ :
1000m
Model Number :
UL2517
Conductor :
Bare Copper Stranded
Application :
Industrial,comsumer Electrics,etc
Temperature :
-40~105℃
Supply Ability :
100km per day
Delivery Time :
3-4 Weeks
Packing :
Packed in rolls or reels
Payment Terms :
T/T,L/C,Western Union
Name :
Bare Copper Wire
Packaging Details :
Packed in rolls or reels
Jacket :
PVC
Description

UL2517 3Cx0.34mm2 Bare Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket

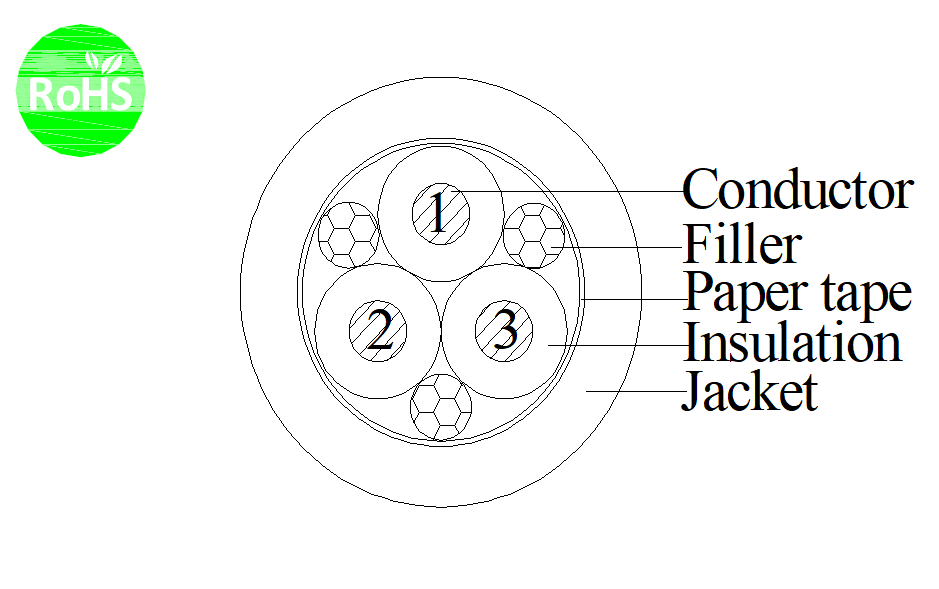

Construction
Conductor Bare copper stranded
Cross section 0.34mm2
Construction 65/0.08mm
Strand Dia. 0.74mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.25±0.10mm
Insulation colour 1.brown 2.blue 3.black
Filler Optional
Material Paper tape,≥25%
Assembly 3Cx0.34mm2+P
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 4.50±0.15mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Drag chain test:1m,bend radius 100mm,40times/min,≥200 0000.

Technical data
Rated voltage:300V
Rated Temperature: -40~105℃
Max.conductor DC resistance(20℃):55.4Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1

FT1
